Latest Technology Dome Type Vertical Fiber Optic Joint Box for FTTH
- 500 Piece / Pieces per Month
- shanghai
- T/T Credit Card PayPal
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Shanghai, China | Brand Name: | yogel | Model Number: | fiber optic joint box |
Product Description

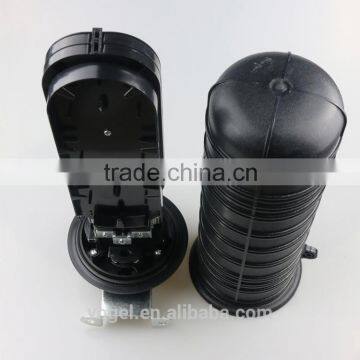

Latest Technology Dome Type Vertical Fiber Optic Joint Box for FTTH
Optic fiber splice closure is mainly used in the continuation and protection of fiber optical cable,
which is not only suitable for optic fiber ribbon cables, but also for non-ribbon cables. Our Refly offers various kinds of fiber optic splice closure with different functions, which are applied to overhead, directly buried and pipe laying installation. Our optical cable Joint box employs high qualified PC or ABS material for body manufacturing with anti-aging performance, high mechanical strength, reliable sealing and anti-lightning performance. It’s widely used in telecommunications, CATV, China Unicom and other optical network.
Application:
This Installation Manual is suit for the Fiber Optic
Splice Closure(Hereafter abbreviated as FOSC),
as the guidance of proper installation. The scope of
application is: aerial, underground, wall-mounting,
wall-mounting in duct and manhole.
The ambient temperature ranges from -40 to +65℃
Features:
Suitable for aerial, duct, and underground application.
Value option for pressure testing
Quick open clamped design
Reliable gasket sealing, reopened repeatedly without changing sealing material
Suitable for ribbon and non-ribbon fibers
No. | Name of components | Quantity | Usage | Remarks |
1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter 355mm x 150mm |
2 | Fiber optic splice tray (FOST) | Max. 6 trays (bunchy) Max. 4 trays (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
3 | Fiber holding tray | 1 pcs | Holding fibers with protective coat |
|
4 | Base | 1set | Fixing internal and external structure |
|
5 | Plastic hoop | 1 set | Fixing between FOSC cover and base |
|
6 | Seal fitting | 1 pc | Sealing between FOSC cover and base |
|
7 | Seal rings for inlet/outlet ports | 4pcs | For the inner seal of inlet/outlet ports; the diameter is 16mm,can shrink to 8.5mm—16mm |
|
8 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
9 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
Specification:
Material: with PC is given priority to, resistance to ultraviolet auxiliary materials of a synthetic material.
Ambient temperature: - 40 °C ~ + 55 °C
The atmospheric pressure: from 70 to 106 kpa
Insulation resistance: ≥2 x 104 mΩ
Service life: 30 years
Aging resistance to heat, heat radiation, air, ozone has a good stability, etc.
Corrosion resistance: to dilute acid, salt water, oxidant, fat hydrocarbon, etc. Have strong resistance to resistance.
Sealing technology: the screw inside the conical sealing technology, can waterproof, moistureproof, air tight.
Mechanical properties: can you stand the harsh conditions such as vibration, impact, fiber optic cable stretching distortion and sharp temperature change, etc.
Lock device: don't need special tools, easy to install and open again.
In place of function: using cascading structure, any access in two corners, facilitates the management of the optical fiber.
To encapsulate properties: optical cable joint box packaging after testing three times. Optical cable joint box air pressure is 1 kg,Soak was stable in room temperature water container for 15 minutes without air bubbles escape, or stable observation 24-hour barometer indicates no change.
Product pictures:
optical fiber Pen-based red light source:
optical fiber fast connector:
optical fiber couplers:
optical fiber adapters:
Fiber Optical Terminal Distribution Box :
Optical Fiber receiver mini node :

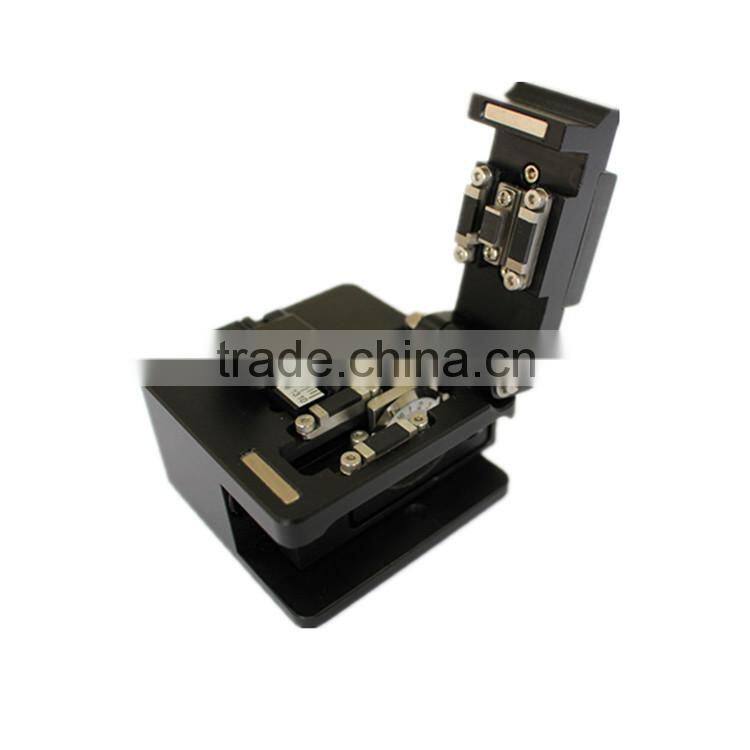

optical fiber cleaver:

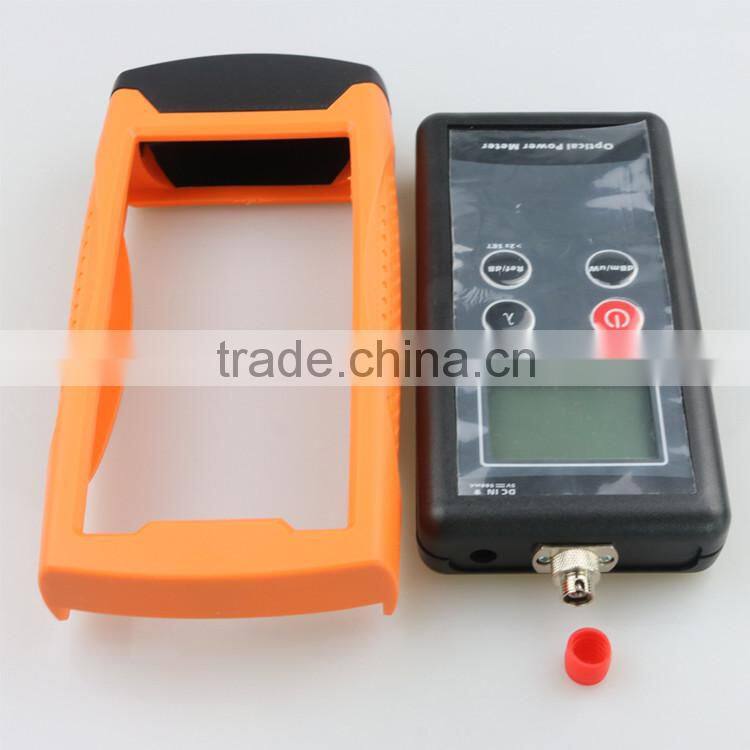

optical fiber power meter:
Welcome to our company!!!
Shanghai Yogel Communication Equipment Co., Ltd. is a professional company engaged in optical fiber passive devices, fusion splicer&accessories and optical test instruments. We provide sales and services of patchcords, fast connector, fiber coupler, optical adapters and fiber splice closure. Based on competitive prices, high-quality products and innovative technology, we stand apart from the rest in domestic FTTH, the DTV head-ends and broadcast industry.
In addition, we have obtained ISO9001, SGS, the State Administration of Radio, Film & TV network access for broadcast equipment certificates and carry out IEC and CE standard strictly.
In many cities and provinces around China, our products are widely used in Telecom, CATV, and all kinds of optical communication network. We also welcome OEM and ODM orders. Customized, Individual requirements and Samples are available. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. They will never disappoint you .
With Yogel, you will have an excellence career. We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.
Customized designs and specifications are welcome. For more product details, please do not hesitate to contact us or visit our website, and you will be surely satisfied with our competitive prices and superior quality .
Advantages:
1).Lead time
With more than 200 employees in my company,at least 10,000
connectors can be produced in 1 day.
2).Research Department
With separated research team,it is advantageous that we are
able to have products customized.
3).Quality assurance
Every product will be tested to be of good quality.Meanwhile free samples can be supplied
1.Do you provide free samples?
yes,we can supply some free samples , the buyer should bear the shipping cost.
2. Can we become your distributor or agency in our area?
yes ,it is possible if we do not have an agency or distributor in your area.The best way to start the business and approve your good intentions through several regular orders over a period.we will support very good products to our distributor including samples,price and other supports.please contact with our sales manager for more details.
3.Can you supply OEM products under our brand
yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.
Note
1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: simplex/duplex
5. Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customized
7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
