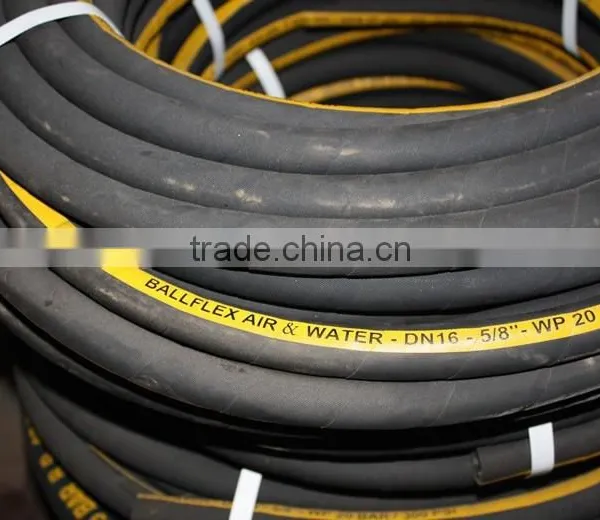

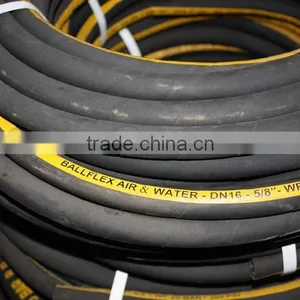

Flexible Sawdust Suction Rubber Hose
Brief Introduction:
1. Good quality, stainless steel wire braided reinforced.
2. Faber braided reinforced, high abrasion resistant, high pressure resistant.
3. Used for sand and slurry and sawdust suction and discharge, widely used in water pump in the agricultural feild.
4. Our own factory, competitive price.
Flexible Sawdust Suction Rubber Hose

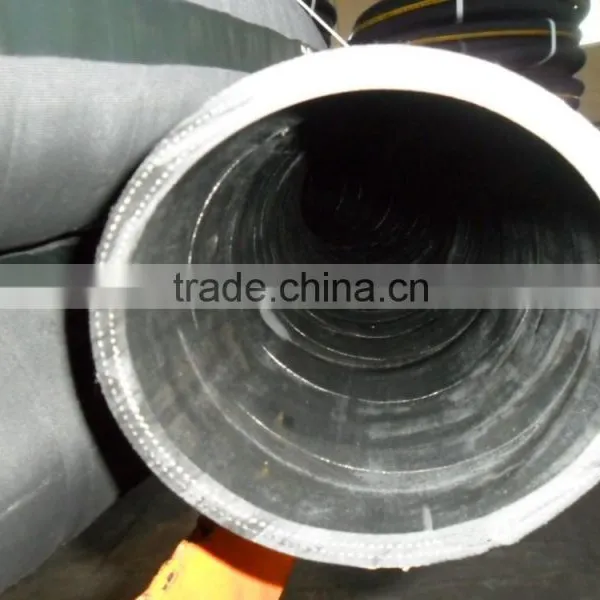

Structure:
- Inner Rubber Layer: Adopted natural rubber, polyurethane rubber and other compounded rubber as the principal raw material, and mixed with special reinforcing agent.
- Pressure bearing Layer: Used good quality fiber cloth (canvas) or chemical fabric (thread cord) as the enhancement layer, better flexibility and pressure capacity.
- Reinforced layer: According to the technological requirements, adopted the high tenacity copper plating spring steel wire.
- Outer Rubber Layer: Employing natural rubber and compounded rubber, wear resistance, anti-oxidant, good appearance and long service life.
Suitable Materials:
Quartz sand, steel grit, mud sand, steel ball, cement, cement concrete, dry-mixed motar, pulverized coal, carbon powder and mineral powder.
Common Specifications:
Inner Diameter (mm) |
Out Diameter (mm) |
Working Pressure(Mpa) |
Blasting Pressure(Mpa) |
Weight (kg/m) |
Akron Abrasion |
Price (USD/m) |
102 |
128 |
0.8 |
2.4 |
6 |
0.8,0.4,0.2,0.1,0.05 |
|
152 |
181 |
0.8 |
2.4 |
10.9 |
|
- For the slurry suction and discharge rubber hose, if the Akron abrasion is 0.2 and the out diameter is 128mm,it can work for about 3 year for slurry suction and discharge.
- The working time of the slurry suction and discharge rubber hose has a close relationship with the delivery material.
- Other specifications please reference the form on the last cover page, we can supply all the products show in the form.
Additional Service:
- Supply the service of non-standard size, special working pressure, length and colors.
- Supply the OEM service and the LOGO style can be referenced the following photos.
- Supply the service of flange installation on the hose's both sides.
LOGO Style:
"KIYNN" SLURRY SUCTIONA AND DISCHARGE RUBBER HOSE 102mm W.P.0.8Mpa B.P.2.4Mpa NEGATIVE PRESSURE: 1 ATMOSPHERE
Suitable Temperature: -40℃~+90℃
Technology Standard: HG2192-2007
Other Technology parameter(According to the following table)
Inner diameter(I.D) |
Working Pressure (W.P.) |
Blasting Pressure(B.P.) |
Weight |
Max Length |
|||
mm |
inch |
Psi |
Mpa |
Psi |
Mpa |
kg/m |
m |
8 |
5/16 |
42-170 |
0.3-1.2 |
126-510 |
0.9-3.6 |
0.23 |
100±1% |
9.5(10) |
3/8 |
42-170 |
0.3-1.2 |
126.-510 |
0.9-3.6 |
0.26 |
|
13(12.7) |
1/2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.36 |
|
16 |
5/8 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.53 |
50±1% |
19 |
3/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.64 |
|
22 |
Non-standard |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.67 |
|
25 |
1 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.85 |
|
32 |
1 1/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.20 |
|
34 |
Non-standard |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.28 |
|
38 |
1 1/2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.39 |
40±1% |
45 |
13/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.62 |
|
51 |
2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.80 |
|
58 |
2 3/8 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
1.85 |
|
60 |
Non-standard |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
1.90 |
|
64 |
2 1/2 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.02 |
|
70 |
Non-standard |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.18 |
|
76 |
3 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.41 |
|
89 |
3 1/2 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.78 |
|
102 |
4 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.16 |
20±1% |
114 |
Non-standard |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.50 |
|
127 |
5 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.87 |
|
152 |
6 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
5.13 |
|
178 |
7 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
6.15 |
|
203 |
8 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
6.97 |
10±1% |
254 |
10 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
9.78 |
|
305 |
12 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
13.03 |
|
457 |
18 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
24.28 |
|

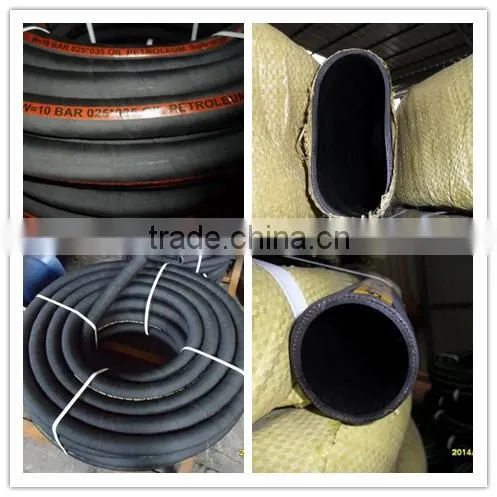

Flexible Sawdust Suction Rubber Hose
1. Nylon Bage package
2. Plastic bage package
Flexible Sawdust Suction Rubber Hose
Advantage:
Material advantage: with good quality high intensity rubber and recycled rubber.
Price advantage: our own factory and our own trading company in Qingdao, you can receive the most competitive price and the best trading service.
Quality advantage: our rubber products have been exported to UAS, Russia, Japan, the Middle East and South Asia.
Location advantage: Near Qingdao port, saving the transport time and land transport cost.
Experience advantage: more than 25 years rubber products production and sales.
Delivery time advantage: within 7 days after the advanced payment.
Laizhou QI Yuan Plastic Products Co., Ltd was established in 1992, we specialize in producting and exporting all kinds of rubber hose, such as industry rubber hose, sand blasting rubber hose, air hose, water suction and discharge hose, oil hose and so on. The rubber hose has beeb expported to Europe, America, and South Asia. This is our own factory so that we can supply the products with good quality and competitive price.
Welcome to visit our factory.
