Rubber Water Pump and Suction Hose / Pipe / Tube
1. Features
- Ø High compression-resistant, aging resistance, good gas tightness and long durability.
- Ø The inner diameter can be produced according to the order.
2. Main structure:
1) Inner layer: employing as major materials of natural rubber and other composite rubbers that have fine resistance to buckling, with special reinforcing agent added; exhibiting characteristics of smoothing, anti-bending, anti-elongating and anti-aging.
2) Framework: employing fine fabric (canvas) or chemical fabric cloth(cord).
3) Outer layer: using natural rubber and composite rubbers as major materials, exhibiting characteristics of light body weight, anti-aging, anti-ozone, anti-bending, fine resilience, wear resistant, and good view.
3. Applications:
Suitable for suction and dischareg, delivering water,compress air and other neuter liquid. Used in industries of mining, shipbuilding, mechanical equipment, building, steel, electricity and water conservancy, etc.
4. Suitable temperature: -40℃ ~ +90℃
5. Technology standard: GB/T 1186-2007
6. Technology parameter(According to the following table)
Inner diameter(I.D) |
Working Pressure (W.P.) |
Blasting Pressure(B.P.) |
Weight |
Max Length |
|||
mm |
inch |
Psi |
Mpa |
Psi |
Mpa |
kg/m |
m |
8 |
5/16 |
42-170 |
0.3-1.2 |
126-510 |
0.9-3.6 |
0.23 |
100±1% |
9.5(10) |
3/8 |
42-170 |
0.3-1.2 |
126.-510 |
0.9-3.6 |
0.26 |
|
13(12.7) |
1/2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.36 |
|
16 |
5/8 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.53 |
50±1% |
19 |
3/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.64 |
|
22 |
Non-standard |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.67 |
|
25 |
1 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.85 |
|
32 |
1 1/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.20 |
|
34 |
Non-standard |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.28 |
|
38 |
1 1/2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.39 |
40±1% |
45 |
13/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.62 |
|
51 |
2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.80 |
|
58 |
2 3/8 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
1.85 |
|
60 |
Non-standard |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
1.90 |
|
64 |
2 1/2 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.02 |
|
70 |
Non-standard |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.18 |
|
76 |
3 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.41 |
|
89 |
3 1/2 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.78 |
|
102 |
4 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.16 |
20±1% |
114 |
Non-standard |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.50 |
|
127 |
5 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.87 |
|
152 |
6 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
5.13 |
|
178 |
7 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
6.15 |
|
203 |
8 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
6.97 |
10±1% |
254 |
10 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
9.78 |
|
305 |
12 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
13.03 |
|
457 |
18 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
24.28 |
|

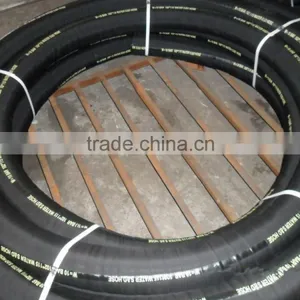

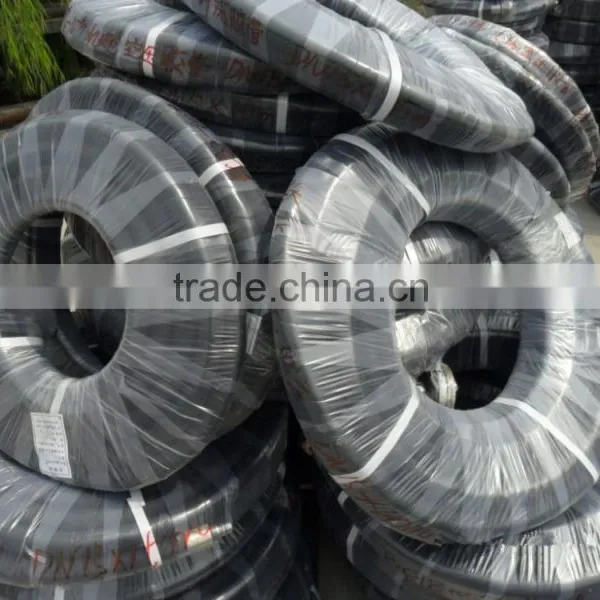

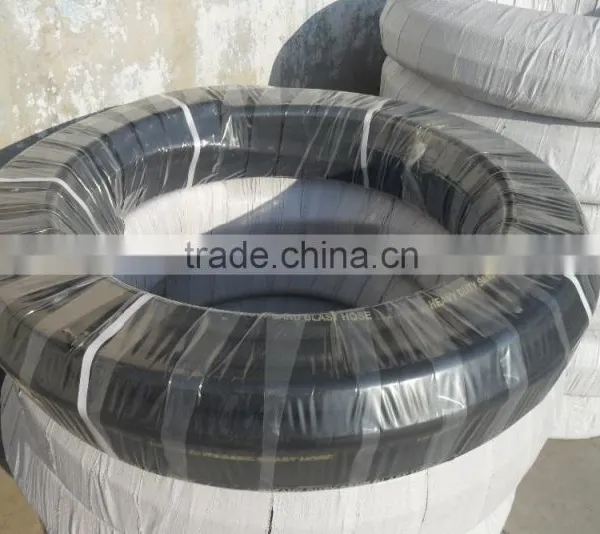

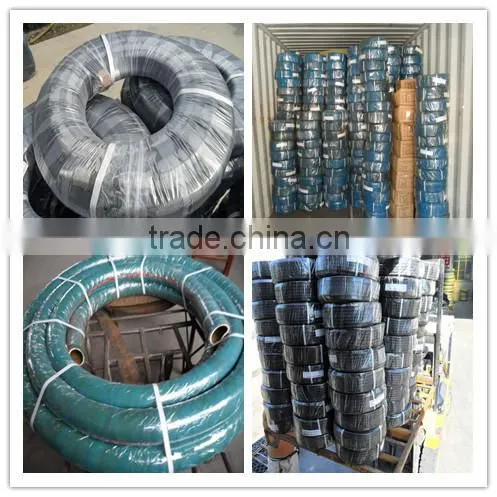

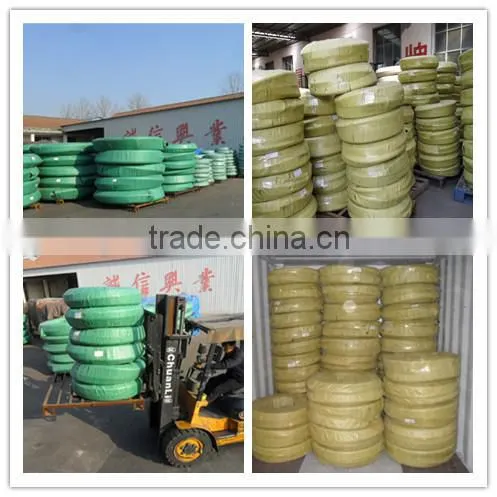

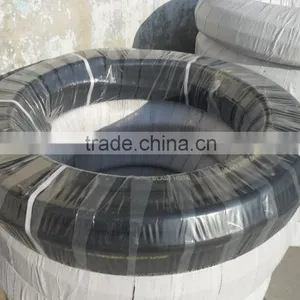

1. Nylon Bage package
2. Plastic bage package
Advantage:
Material advantage: with good quality high intensity rubber and recycled rubber.
Price advantage: our own factory and our own trading company in Qingdao, you can receive the most competitive price and the best trading service.
Quality advantage: our rubber products have been exported to UAS, Russia, Japan, the Middle East and South Asia.
Location advantage: Near Qingdao port, saving the transport time and land transport cost.
Experience advantage: more than 25 years rubber products production and sales.
Delivery time advantage: within 7 days after the advanced payment.

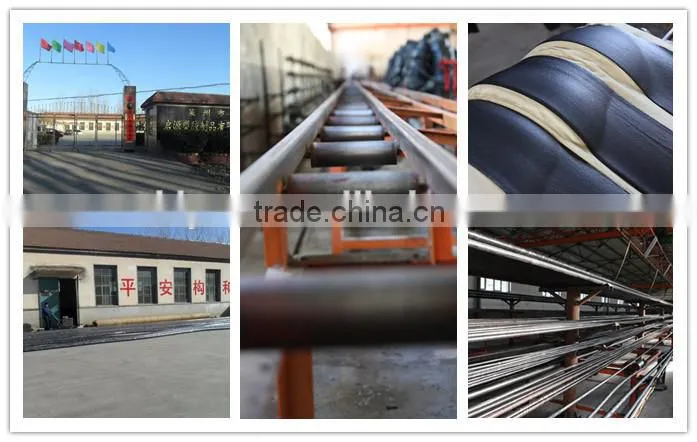

Laizhou QI Yuan Plastic Products Co., Ltd was established in 1992, we specialize in producting and exporting all kinds of rubber hose, such as industry rubber hose, sand blasting rubber hose, air hose, water suction and discharge hose, oil hose and so on. The rubber hose has beeb expported to Europe, America, and South Asia. This is our own factory so that we can supply the products with good quality and competitive price.
Welcome to visit our factory.
