Water/ Oil/ Sand Flexible Discharge Rubber Hose
Brief Introduction:
1. Flexible discharge rubber hose
2. Good features of high abrasion resistant, flexible for water, oil and sand discharge.
3. Fiber or stainless steel wire braided reinforcement.
4. China supplier, our own factory, competitive price.

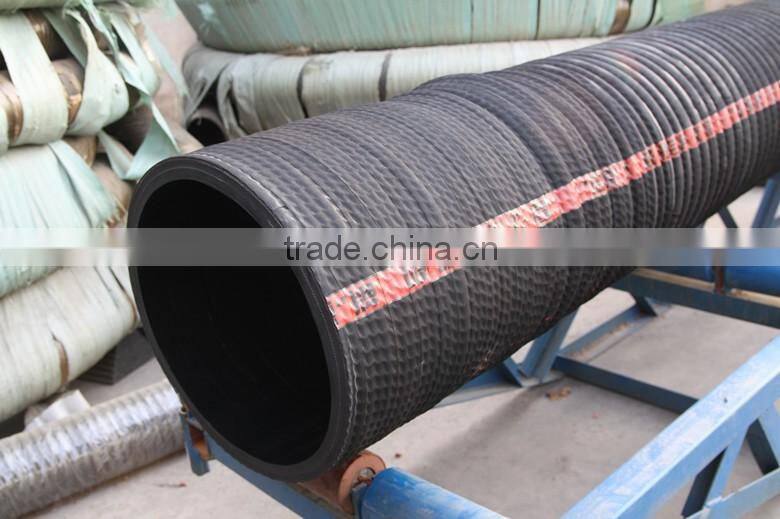

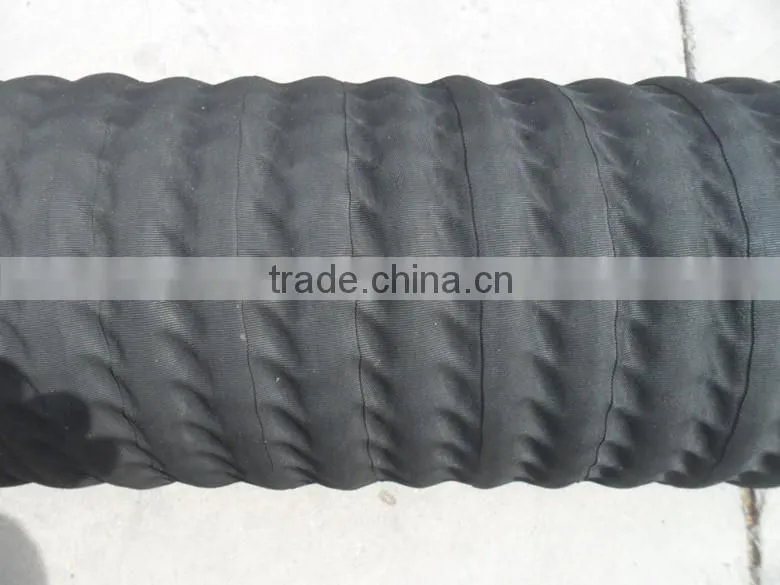

Water/ Oil/ Sand Flexible Discharge Rubber Hose
Structure:
- Ø Inner Rubber Layer: Adopted natural rubber, polyurethane rubber and other compounded rubber as the principal raw material, and mixed with special reinforcing agent.
- Ø Pressure bearing Layer: Used good quality fiber cloth (canvas) or chemical fabric (cord thread) as the enhancement layer, better flexibility and pressure capacity.
- Ø Reinforced layer: According to the technological requirements, adopted the high tenacity copper plating spring steel wire.
- Ø Outer Rubber Layer: Employing natural rubber and compounded rubber, wear resistant, anti-oxidant, good appearance and long service life.
Application:
- Ø Widely used in all types of bulk-cement tanker.
- Ø Delivery all kinds of mineral powder, pulverized coal and coal ash.
Suitable Materials:
Concrete, mud and sand and motar, etc.
Common Specifications:
Inner Diameter (mm) |
Out Diameter (mm) |
Working Pressure (Mpa) |
Blasting Pressure (Mpa) |
Weight (kg/m) |
Akron Abrasion |
Price (USD/m) |
76 |
100 |
4.0 |
8.0 |
10 |
0.8,0.4,0.2,0.1,0.05 |
|
102 |
128 |
4.0 |
8.0 |
14 |
|
1) For the EPDM rubber peristalic pump soft rubber hose, if the Akron abrasion is 0.2 and the out diameter is 100mm,it can delivery about 20000m3 concrete.
2) The working time of EPDM rubber peristalic pump rubber hose has a close relationship with the delivery material.
3) Other specifications please reference the form on the last cover page, we can supply all the products show in the form.
Additional Service:
- Ø Supply the service of non-standard size, special working pressure, length and colors.
- Ø Supply the OEM service and the LOGO style can be referenced the following photos.
- Ø Supply the service of flange installation on the hose's both sides.
LOGO Style:
"KIYNN" WATER/OIL/SAND FLEXIBLE DISCHARGE RUBBER HOSE 102mm W.P 40Mpa B.P. 8Mpa
Suitable Temperature: -40℃~+180℃
Technology Standard: HG2192-2007
Other Technology Diameter:
Inner diameter(I.D) |
Working Pressure (W.P.) |
Blasting Pressure(B.P.) |
Weight |
Max Length |
|||
mm |
inch |
Psi |
Mpa |
Psi |
Mpa |
kg/m |
m |
8 |
5/16 |
42-170 |
0.3-1.2 |
126-510 |
0.9-3.6 |
0.23 |
100±1% |
9.5(10) |
3/8 |
42-170 |
0.3-1.2 |
126.-510 |
0.9-3.6 |
0.26 |
|
13(12.7) |
1/2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.36 |
|
16 |
5/8 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.53 |
50±1% |
19 |
3/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.64 |
|
22 |
Non-standard |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.67 |
|
25 |
1 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
0.85 |
|
32 |
1 1/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.20 |
|
34 |
Non-standard |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.28 |
|
38 |
1 1/2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.39 |
40±1% |
45 |
13/4 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.62 |
|
51 |
2 |
42-114 |
0.3-0.8 |
126-340 |
0.9-2.4 |
1.80 |
|
58 |
2 3/8 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
1.85 |
|
60 |
Non-standard |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
1.90 |
|
64 |
2 1/2 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.02 |
|
70 |
Non-standard |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.18 |
|
76 |
3 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.41 |
|
89 |
3 1/2 |
28-114 |
0.2-0.8 |
85-340 |
0.6-2.4 |
2.78 |
|
102 |
4 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.16 |
20±1% |
114 |
Non-standard |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.50 |
|
127 |
5 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
3.87 |
|
152 |
6 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
5.13 |
|
178 |
7 |
28-70 |
0.2-0.5 |
85-200 |
0.6-1.5 |
6.15 |
|
203 |
8 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
6.97 |
10±1% |
254 |
10 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
9.78 |
|
305 |
12 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
13.03 |
|
457 |
18 |
28-42 |
0.2-0.3 |
85-126 |
0.6-0.9 |
24.28 |
|

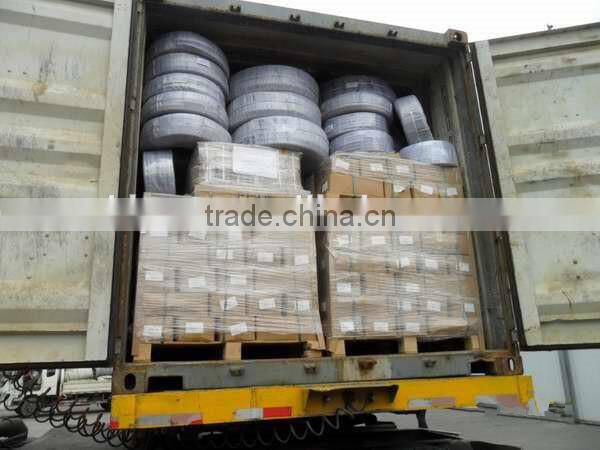

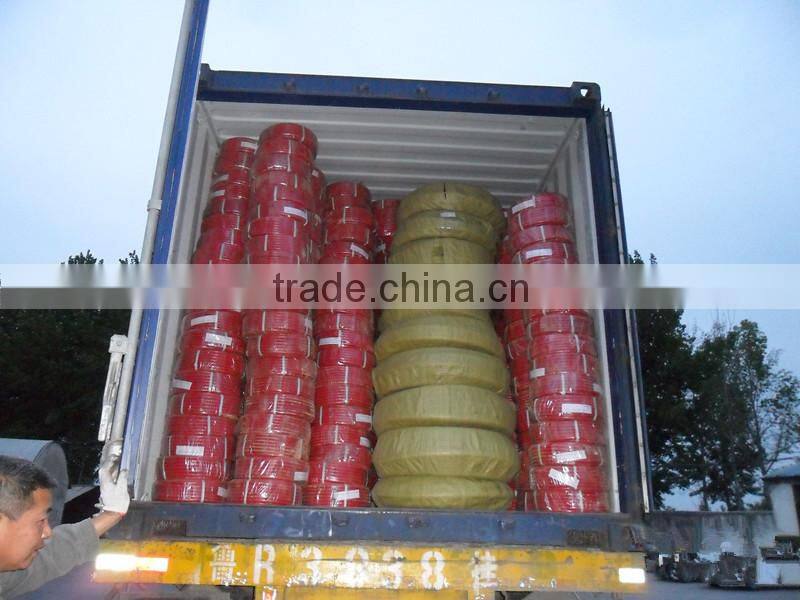

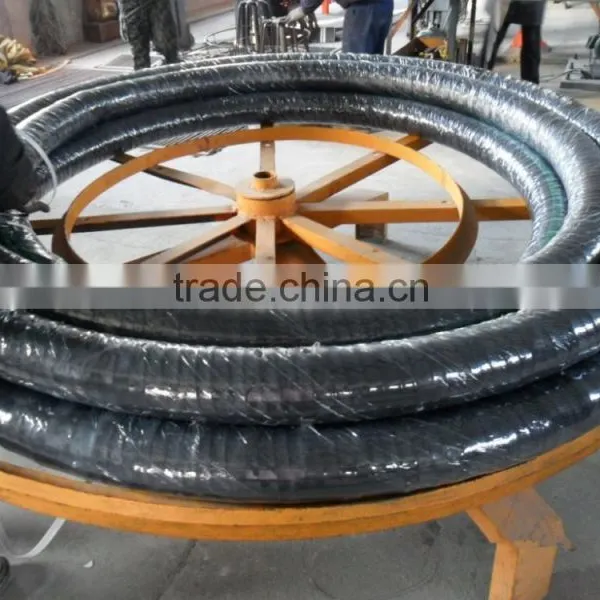

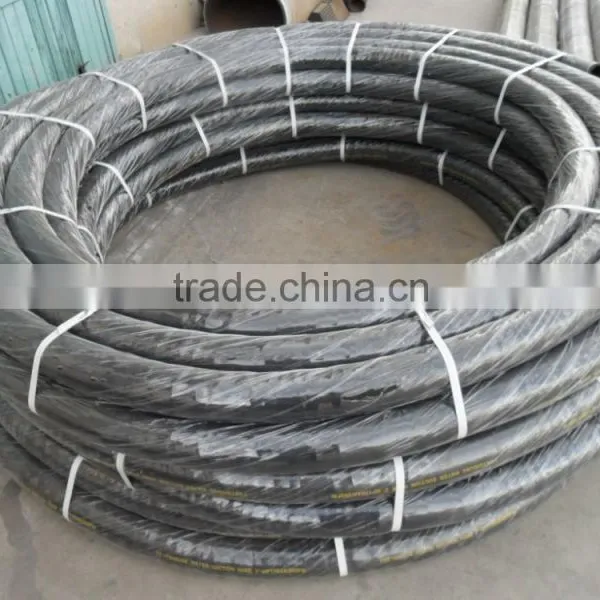

Water/ Oil/ Sand Flexible Discharge Rubber Hose
1. Plastic film
2. Nylon bag

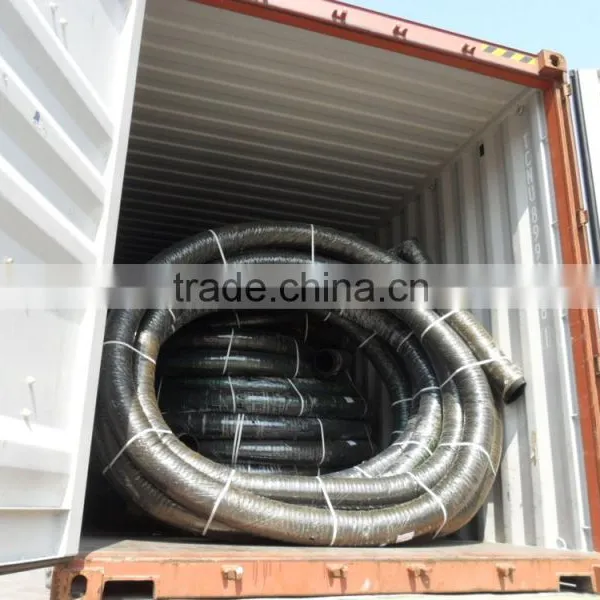

Water/ Oil/ Sand Flexible Discharge Rubber Hose
Advantage:
- Material advantage: with good quality high intensity natural rubber.
- Price advantage: our own factory and our own trading company in Qingdao, you can receive the most competitive price and the best trading service.
- Quality advantage: our rubber products have been exported to UAS, Russia, Japan, the Middle East and South Asia.
- Location advantage: Near Qingdao port, saving the transport time and land transport cost.
- Experience advantage: more than 25 years rubber products production and sales.
- Delivery time advantage: within 7 days after the advanced payment.

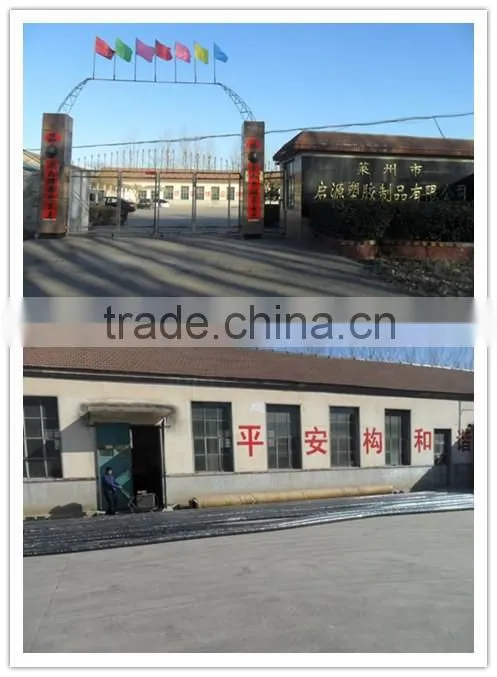

Company Information

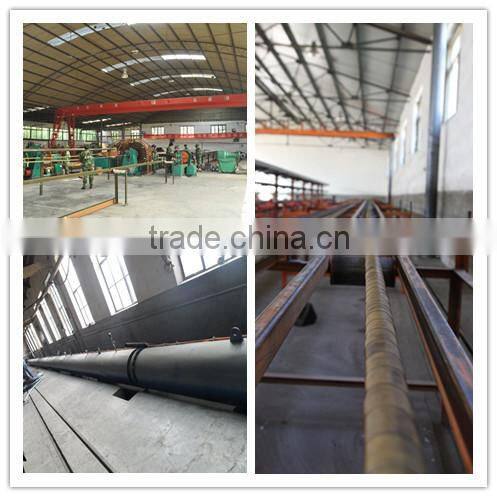

Laizhou QI Yuan Plastic Products Co., Ltd was established in 1992, we specialize in producting and exporting all kinds of rubber hose, such as industry rubber hose, sand blasting rubber hose, air hose, water suction and discharge hose, oil hose and so on. The rubber hose has beeb expported to Europe, America, and South Asia. This is our own factory so that we can supply the products with good quality and competitive price.
