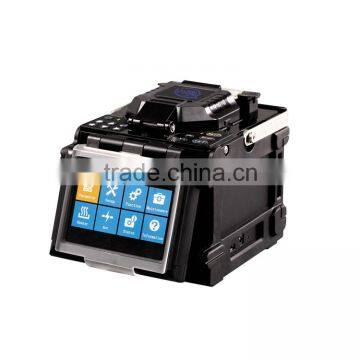

fttx ftth powerful function and super low splicing loss splicer welding machine
1.Key Features
yogel splicer is new designed fiber splicing equipment. The powerful function and super low splicing loss make it be competent for construction of trunk line and FTTX: Because of the compact configuration and precise mechanism, it can adapt to execrable environment; the novel fiber imaging system make the image clearer and more exquisite; the real-time embedded OS provide friendly man-machine interface and abundant functions.
The built-in large capacity Li-Ion battery can support long-time fieldwork. The embedded sensors measured temperature, humidity and air pressure supply closed-loop feedback control, so the instrument can adopt all kinds of atrocious circumstance and the consistency of splicing loss was improved.
2.Applications
5 inches high Resolution colorful LCD display
Average splice time: 10 second
Average tube-heat time: 30 second
Lithium battery: up to 180 times of continuous splice and heat
Simultaneous X and Y views with 180 times magnification
New developed technology providing wind and dust resistance
Splicing mode:Auto & Manual & Full-Automation
USB Port
Storing 6,000 groups of splice results.
Multipurpose optical fiber fixture
3.Specifications
Parameter | |
Applicable Fiber |
SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series |
Average Splicing Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss |
≥60dB |
Tension Test |
2.0N(200gf)(Standard) |
Splicing Program |
50 groups |
Protection Sleeve Length |
20mm, 40mm, 60mm |
Language |
Chinese, English |
Environmental Conditions |
-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply |
AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) DC adaptor: 12V voltage 8AH |
Dimensions |
155(W)*165(D)*150(H |
Packaging Details:15pieces/carton, Optical Fiber Product can be OEM/ODM
We can design some special packaging according to customer's requirement.
Delivery Details:3~5 days after receipt of deposit for little orders.
Before Sale Service:professional offer detailedproducts test report related specifications
Contract Manufacturing: OEM Service Offered design service offered buyer Label Offered
Shanghai Yogel Communication Equipment Co.,Ltd. welcome to visit our factory!
The core of Yogel is honesty and efficiency.pls feel free to contact us.
Your inquiry is expected! Warmly welcom you to inquiry us for this product.
