XGJ560 wood biomass rice husk pellet making machine
1. dongfang Ring Die Biomass wood pellet machine Introduction
Dongfang Ring die wood pellet machine belongs to pellet fuel processing equipment. After the

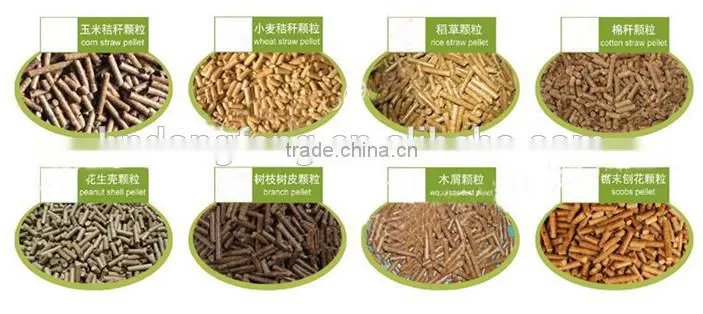

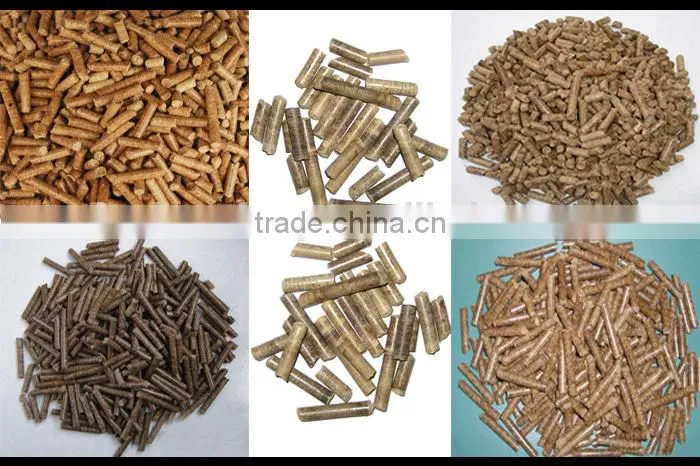

materials like sawdust,wood chips, wood logs, rice husk, sunflower seed shells, peanut shells, and other kinds of agricultural wastes are first ground by a hammer mill and dried to a moisture content about 15% , they can be processed by our dongfang ring die pellet machine into solid biomass pellets. The final wood pellets can be used in stoves for home heating and industrial boilers and large power plants. Besides, the pellets are also widely used for animal bedding.
2. the Biomass wood pellet machine Benefits
a). Compared with raw wood shavings, there is less ashes and emission after combustion, carbon neutral without exacerbating the global warming.
b. Raw materials are easy to get. Wood materials, agricultural byproducts, even wood wastes from wood processing factory can be utilized to make wood pellets.
c. Easy to ignite due to low moisture content. Efficient burning and high heat output.
d. Can be used in a lot of appliances such as stoves, furnaces,boilers and other heating systems.
e. Highly compressed, regular and uniform shape ensure easy storage and transportation, especially convenient for automated heating system.
3. dongfang Ring Die Wood Pellet machine Features
a. Adopt high precision gear drive. Output is 20% larger than that of belt drive.
b. Advanced bearing and oil seal guarantee a efficient and stable working process.
c. Feeding device adopts frequency conversion motor, ensuring continuous and even feeding.
4. Ring Die Wood Pellet Machine Working Principle
After grinding and drying process, the materials will be sent into feeding device and mixed in the conditioner. Then they are forced into the pelletizing chamber by the imperative feeder. In the chamber, materials are squeezed between the rollers and die to form into cylinder shape pellets. As they are extruded, cutting knives will cut the pellets into specified size.
5. dongfang ring die wood pellet machine parameter:
MODEL |
DFKL350 |
DFKL420 |
DFKL508 |
DFKL600 |
||
CAPACITY(T/H) |
Feed |
3-5 |
5-12 |
8-15 |
13-20 |
|
Biomass |
0.4-0.6 |
1.0-1.5 |
1.5-2.0 |
2.5-3.5 |
||
Main power(KW) |
55 |
90 |
110 |
160 |
||
PELLET SIZE(MM) |
6,8,10mm |
6,8,10mm |
6,8,10mm |
6,8,10mm |
||
FORCE FEEDER (KW) |
0.55 |
0.75 |
0.75 |
1.5 |
||
POWER OF FEEDER(KW) |
0.75 |
1.5 |
2.2 |
2.2 |
||

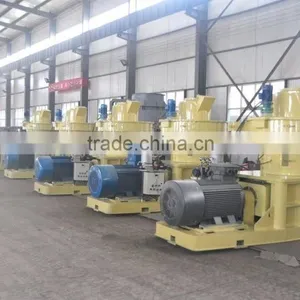

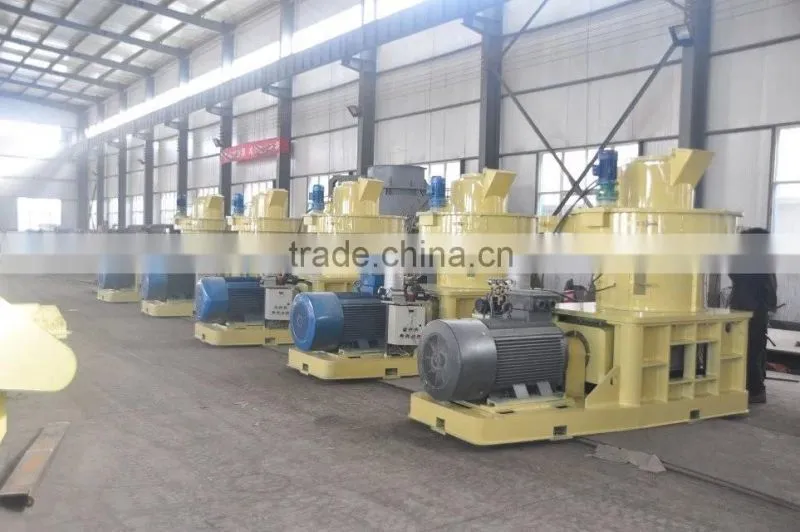

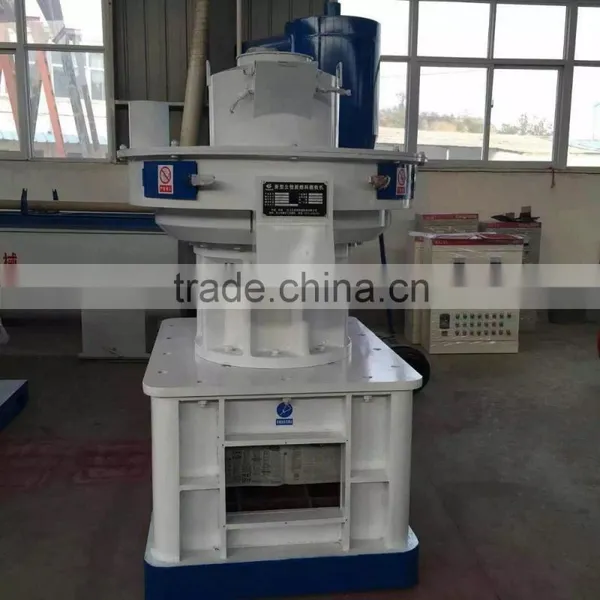

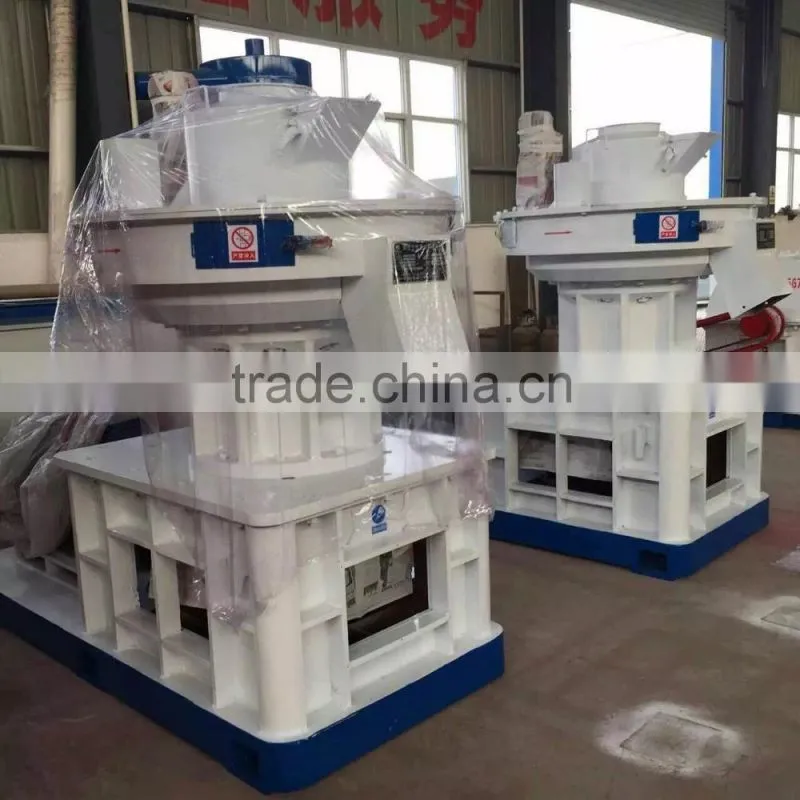

Picture for ring die wood pellet machine model DFKL508

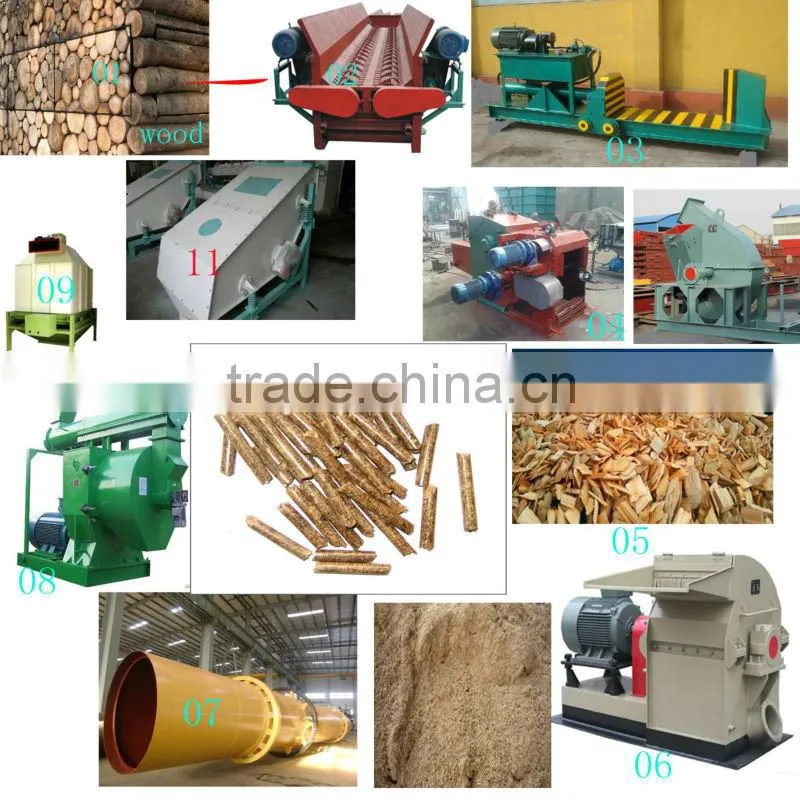

6. Dongfang CE And ISO2008 ring die wood pellet machine plant flow:

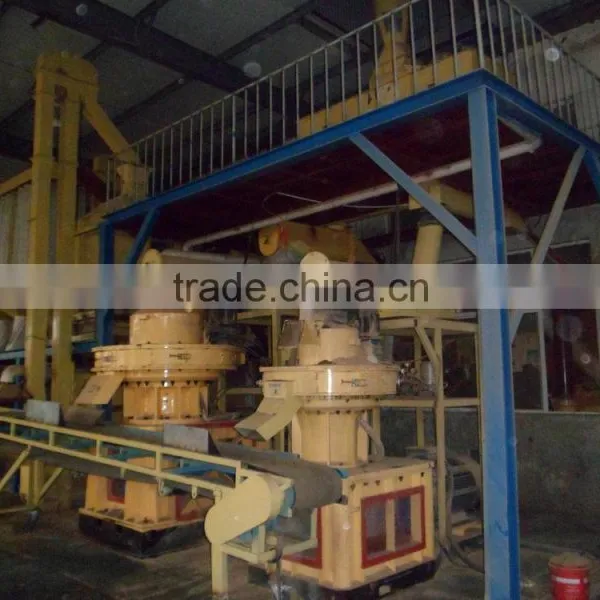

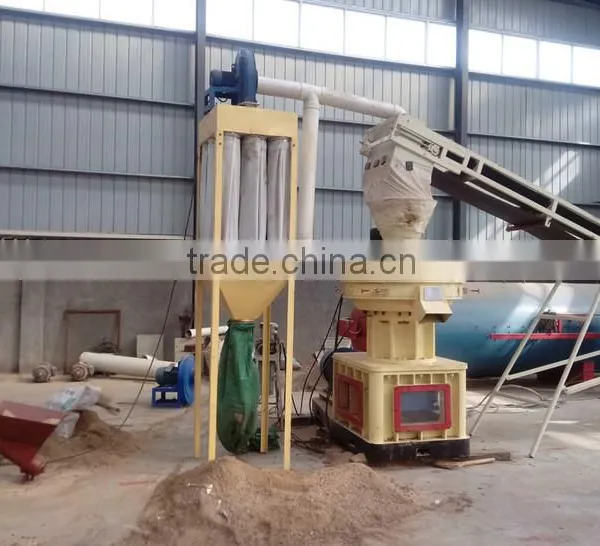

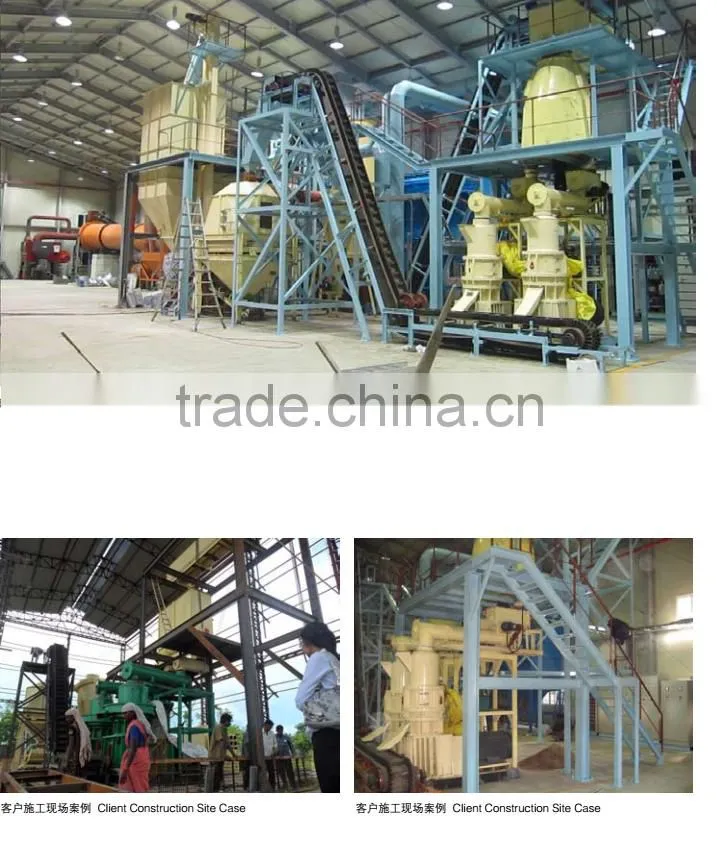

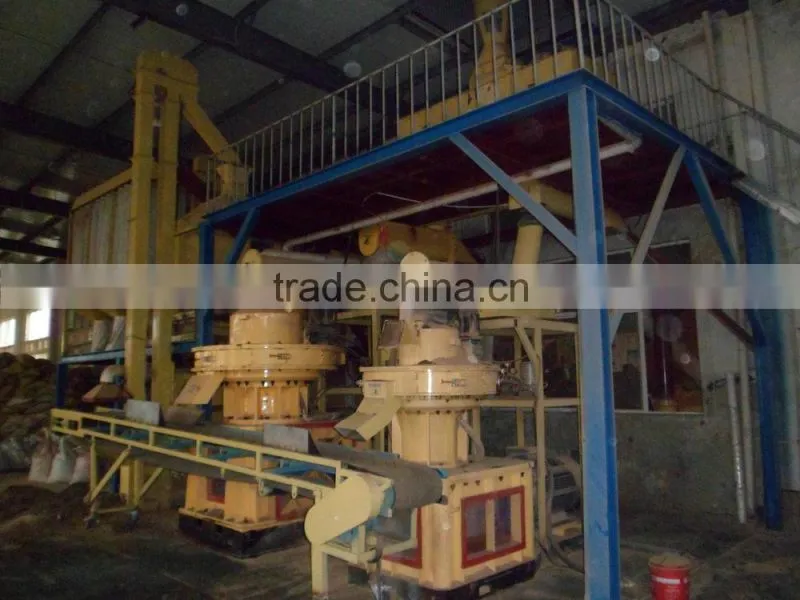

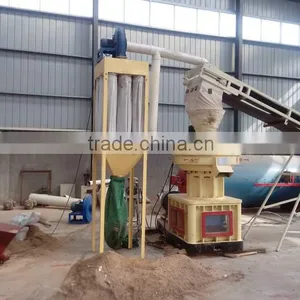

7. Live plant pictures:

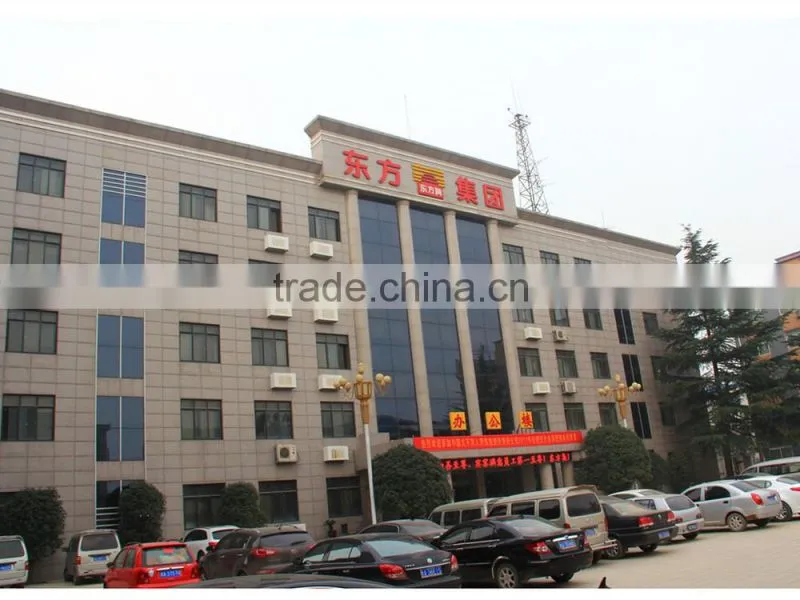

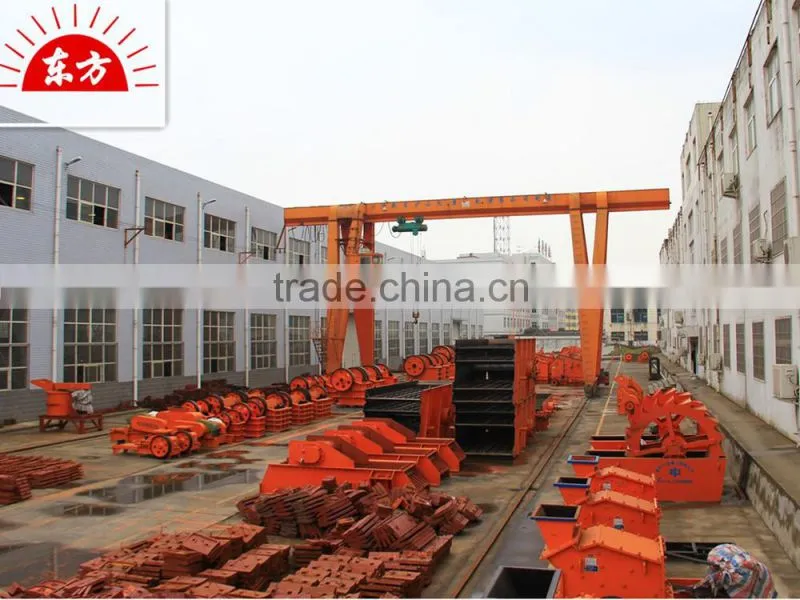

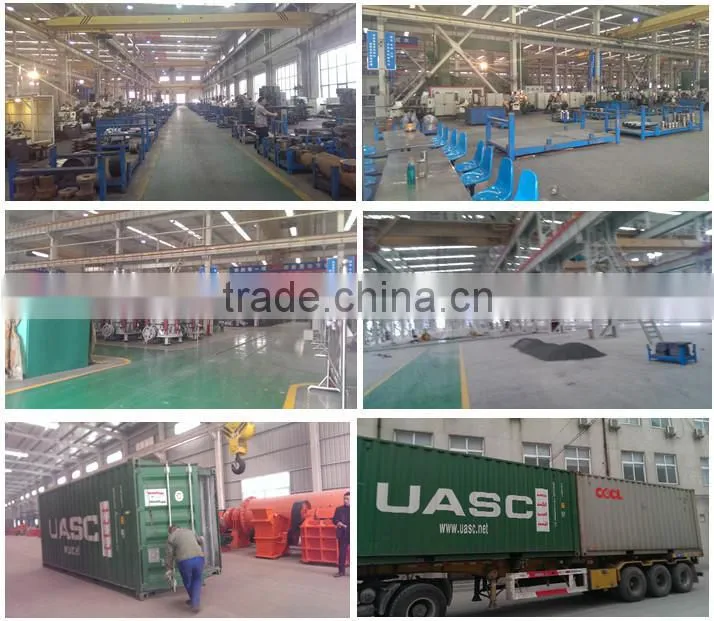

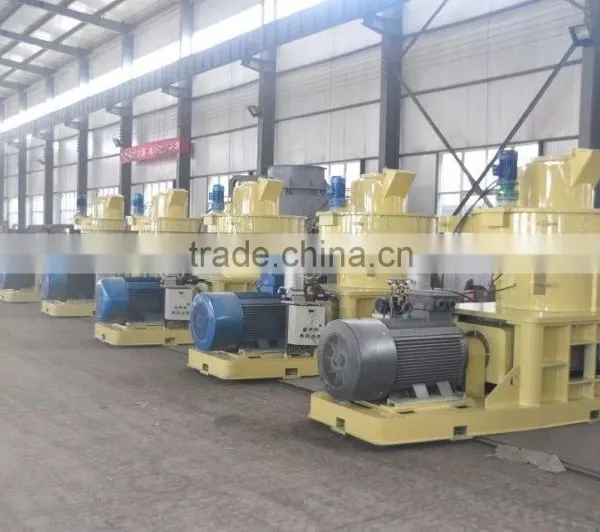

8. dongfang factory Work place:
9. dongfang service
Dong fang Delivery time: within 20 days after received your 30% TT down payment.
Warranty: two Year (Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.
10. Please contact for more detail information wood pellet machine and wood pellet mill.
Welcome visit our factory and test machine in our factory
