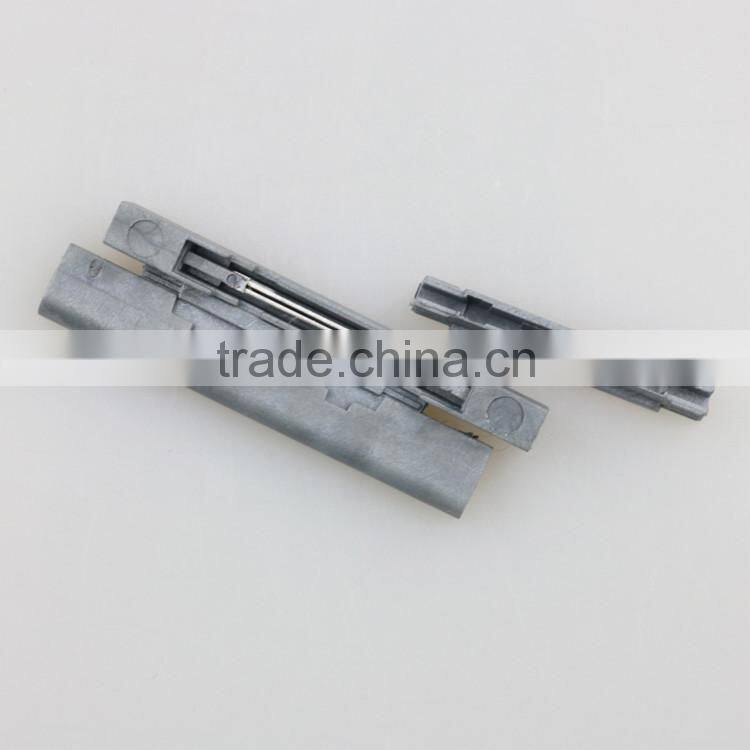

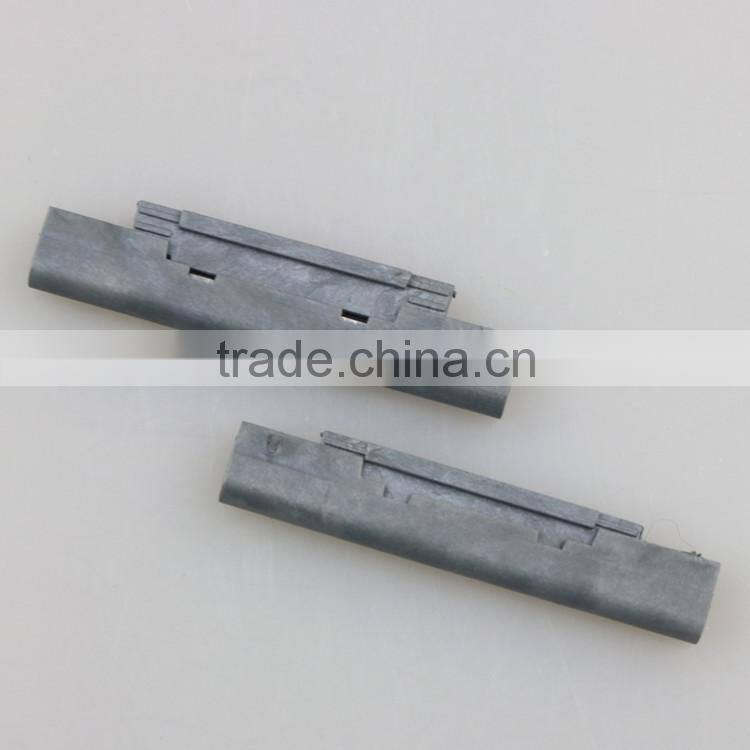

Assembly Tools Fiber Optic Products Shrink Optical Fiber Mechanical Splicer
Description:
Optical fiber cold catching is widely used with the mature interconnection technology of V-groove. It is used to connect the single mode or multimode optical fiber. It is applied to optional connection between φ0.25mm and φ0.9mm optical fibers and cable. Its operation time is no more than 1 minute so that it is easy to use.
Features:
- Acceptable for 250/900um cable
- Easy for connection by simple and exquisite v-groove structure
- Stability of connection by stainless holder
- Easy for re-assembling & disassembling without special tool
- Can be reconnect in the field
Specifications:
Test project |
Technology parameters |
Applicable scope |
φ0.25 mm &φ0.90 mm fiber |
Fiber diameter |
125μm ( 657A & 657B ) |
Tight cladding diameter |
250μm & 900μm |
Applicable mode |
Single mode& multimode |
Operating time |
About 10s(do not contain fiber processing) |
Insertion loss |
≤ 0. 10dB(1310nm & 1550nm) |
Return loss |
≤ -40dB |
Naked fine solid tight force |
>5 N |
Tight packet layer clamping forces |
>8 N |
Using temperature |
-40~+75°C |
Repeated use (ten times) |
Δ IL ≤ 0.2dB Δ RL ≤ 5dB |
Product Details:
Other Products Show:
optical fiber FC APC patch cord:

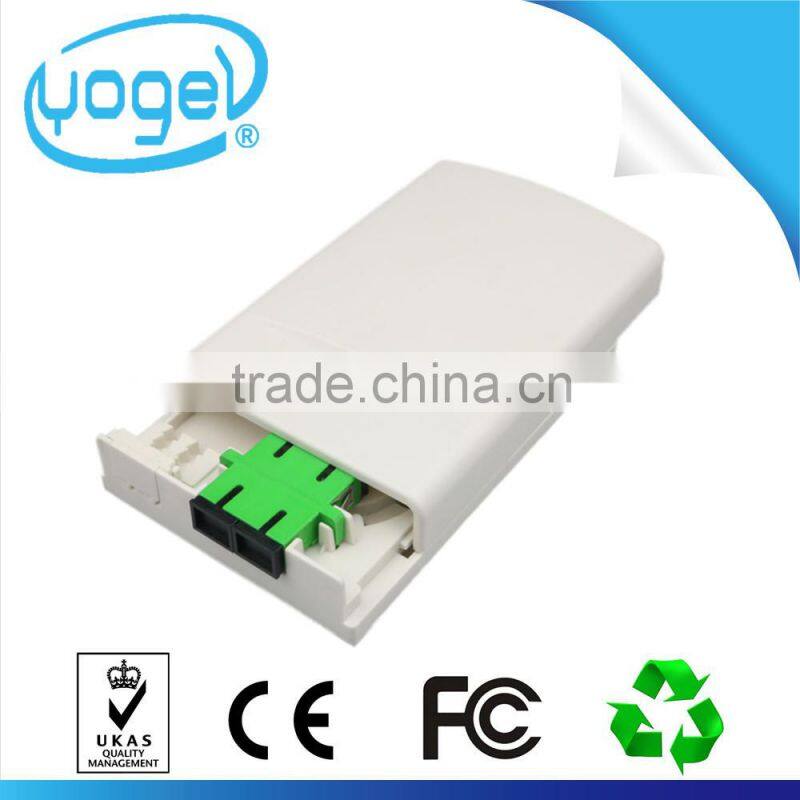

Fiber Optical Terminal Box :

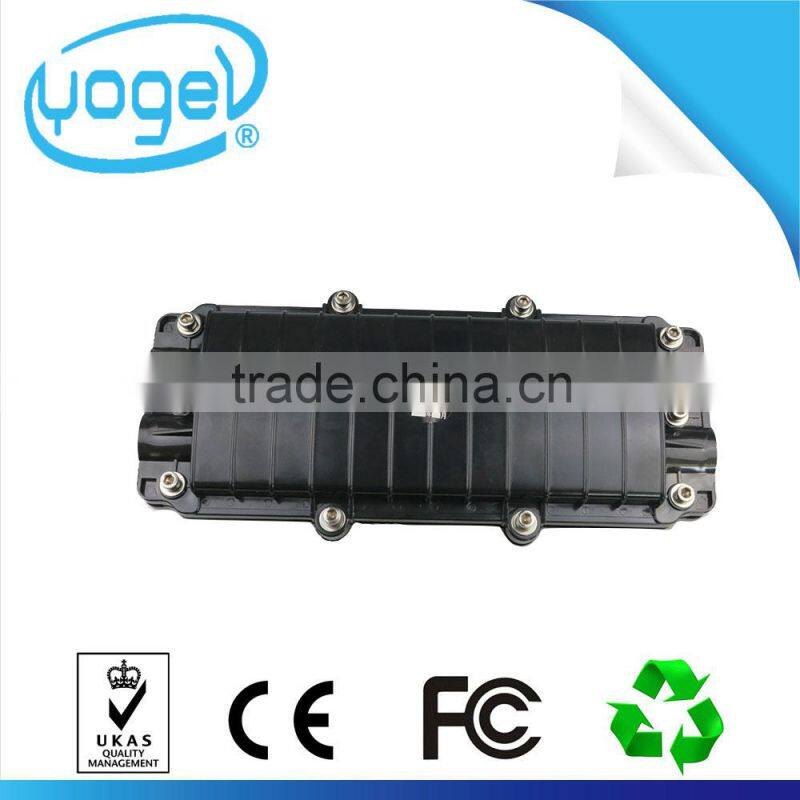

Optical Fiber Splice Closure :
Optical Fiber Stripper:

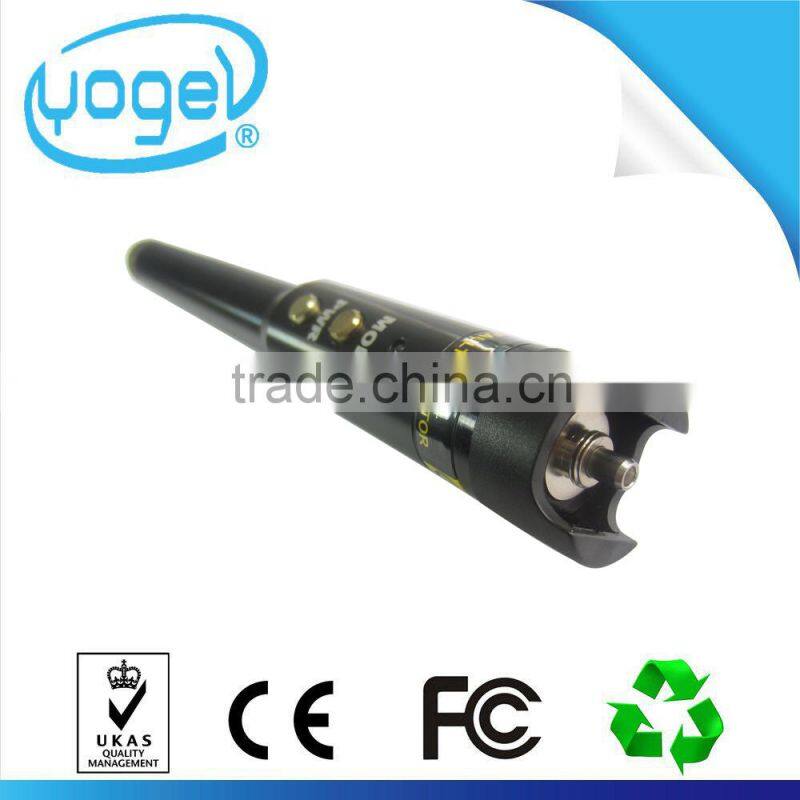

optical fiber Visual Fault Locator :

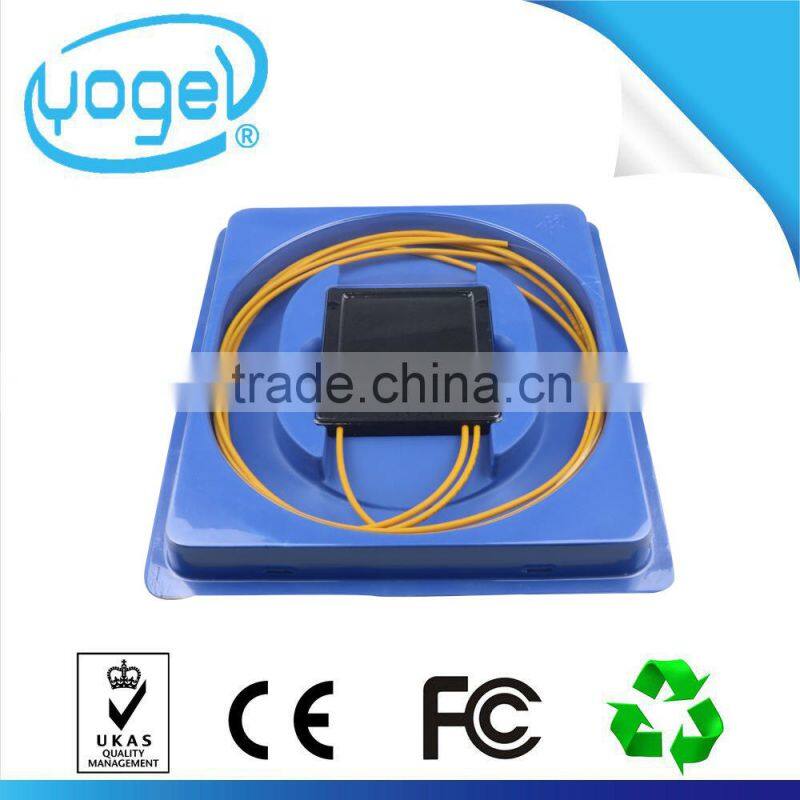

optical fiber couplers:
optical fiber cleaver:
Welcome to our company!!!
Workshop
Shanghai Yogel Communication Equipment Co., Ltd. is a professional company engaged in optical fiber passive devices, fusion splicer&accessories and optical test instruments. We provide sales and services of patchcords, fast connector, fiber coupler, optical adapters and fiber splice closure. Based on competitive prices, high-quality products and innovative technology, we stand apart from the rest in domestic FTTH, the DTV head-ends and broadcast industry.
In addition, we have obtained ISO9001, SGS, the State Administration of Radio, Film & TV network access for broadcast equipment certificates and carry out IEC and CE standard strictly.
In many cities and provinces around China, our products are widely used in Telecom, CATV, and all kinds of optical communication network. We also welcome OEM and ODM orders. Customized, Individual requirements and Samples are available. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. They will never disappoint you .
With Yogel, you will have an excellence career. We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.
Packing & Delivery:
Packaging Details: Each one package in a plastic bag, and then package 100 pieces in a carton about 260mm*140mm*85mm volume,or as customer requires.
Delivery Detail: 5-7days
DHL, FedEx, UPS and TNT
We send orders worldwide by DHL,UPS and FedEx, its lead time is about 3-5 days base on different quantity purchased.
We are unable to control the delivery time because it is processed by Third-party service but if the parcel has not arrived with expected time, please contact us we will help you to track it and give you a satisfied reply.
Customized designs and specifications are welcome. For more product details, please do not hesitate to contact us or visit our website, and you will be surely satisfied with our competitive prices and superior quality .
Advantages:
1).Lead time
With more than 200 employees in my company,at least 10,000
connectors can be produced in 1 day.
2).Research Department
With separated research team,it is advantageous that we are
able to have products customized.
3).Quality assurance
Every product will be tested to be of good quality.Meanwhile free samples can be supplied
Certification
1.Do you provide free samples?
yes,we can supply some free samples , the buyer should bear the shipping cost.
2. Can we become your distributor or agency in our area?
yes ,it is possible if we do not have an agency or distributor in your area.The best way to start the business and approve your good intentions through several regular orders over a period.we will support very good products to our distributor including samples,price and other supports.please contact with our sales manager for more details.
3.Can you supply OEM products under our brand
yes ,we are manufacturer ,but we can accept OEM service with OEM package ,you just need to send us your detailed requirements.
Note
1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: simplex/duplex
5. Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customized
7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
