Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > High Quality 1 Piece MOQ Fast Fibre Link sc pc Optic Connector Quality Choice

High Quality 1 Piece MOQ Fast Fibre Link sc pc Optic Connector Quality Choice

Name: High Quality 1 Piece MOQ Fast Fibre Link sc pc Optic Connector Quality Choice
Brand: yogel
SKU: 106433263
Availability: InStock

High Quality 1 Piece MOQ Fast Fibre Link sc pc Optic Connector Quality Choice thumbnail-1

High Quality 1 Piece MOQ Fast Fibre Link sc pc Optic Connector Quality Choice thumbnail-2

High Quality 1 Piece MOQ Fast Fibre Link sc pc Optic Connector Quality Choice photo-1

High Quality 1 Piece MOQ Fast Fibre Link sc pc Optic Connector Quality Choice photo-2

US$ 0.1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

yogel

Model Number:

sc pc fast Connectors

Contact Supplier Request Quote Chat Now

Shanghai Yogel Communication Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name yogel

Model Number sc pc fast Connectors

Product Description

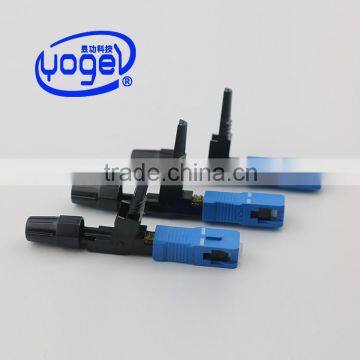

High Quality 1 Piece MOQ Fast fibre link Connector sc pc optic Connector

Features:

1.No special tools needed when installed;

2.Can be made on-site without splicing connectors ;

3.Only 30 seconds needed to learn the process of installation and making;

4.Can be intalled and maked repeatedly thus avoiding loss

Application:

CATV
Active device termination
Telecommunication networks
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installation
Wide Area Networks(WANs)

Key features:

1) Factory-installed fiber stub.

2) No epoxy and polishing required, No special tools needed when installed.

3) Allows up to three re-termination result.

4) Easily installed, Quick and easy fiber termination in the field.

5) Within 30 seconds needed to learn the process of installation and making.

6) Cost effective, Warranty: One year.

7) Fast connecting and repeat, No special tools needed when installed.

8) Can be made on-site without splicing connectors.

9) Eliminates cable excess length and pigtail splice storage.

10) Can be intalled and maked repeatedly thus avoiding loss.

Specification

Parameter	FC,LC,SC				ST,MU			MTRJ,MPO
	SM			MM	SM		MM	SM		MM
	PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	≤0.3 dB	≤0.2 dB	≤0.3 dB	≤0.2 dB	≤0.3 dB	≤0.2 dB	≤0.2 dB	≤0.3 dB	≤0.2 dB	≤0.2 dB
Return loss	≥45 dB	≥50 dB	≥60 dB	≥30 dB	≥45 dB	≥50 dB	≥30 dB	≥45 dB	≥50 dB	≥35 dB
Operating wavelength	1310,1510nm
Exchangeability	≤0.2 dB
Vibration	≤0.2 dB
Operating temperature	-40~+75°C
Storage temperature	-45~+85°C
Cable diameter	Φ3.0,Φ2.0,Φ0.9mm

Product List

Item	Connector Description
Connector Single mode 9/125	ST/SC/FC
	LC
	MU
	MTRJ(female)
	MTRJ(male)
	DIN
	E2000
Connector Multimode (50/125 or 62.5/125)	ST/SC/FC
	LC
	MU
	MTRJ(female)
	MTRJ(male)
	E2000
Remark: 1. Above price is for assembled connectors 2. The price for 0.9mm, 2.0mm&3.0mm boot is same.

Our products:

Field assembly connector
Optical fiber patch cord
Optical fiber adapter
Optical fiber attenuator
Optical fiber terminal box
Optical fiber fusion splicer
Splicer accessories
Fiber test instrument
Optical fiber splice closure
More products

Packaging & Shipping

Packing:

1/carton box,or according to customer request

Shipping:

in7 days for Mini Fiber Optical Receiver

Company Information

Welcome to our factory!

The main idea of Yogel company is honesty and efficiency.

Our company has been audited and approved ISO9001,CE.

Shanghai Yogel Communication Equipment Co., Ltd. is a professional company engaged in optical fiber passive devices, fusion splicer&accessories and optical test instruments.

We provide sales and services of patchcords, fast connector, fiber coupler, optical adapters and fiber splice closure.

Based on competitive prices, high-quality products and innovative technology, we stand apart from the rest in domestic FTTH, the DTV head-ends and broadcast industry.

For more information please visit Shanghai Yogel Communication Equipment Co., Ltd.

FQA

If there any question, please contact us!

1. Can I get some samples of sa pc fast connector?

Yes, Sample order is available for quality check and market test .And you just to pay the express cost.

2. What’s delivery time of sc pc connector?

It usually takes about 5-7 working days .

3. What’s your payment terms ?

We usually accept all these kinds of payment terms .Such as T/T,L/C, Western Union.Cash Etc.

4. What’s your warranty terms ?

We offer 12 months warranty time .

5. Can I mix different power in one container ?
