2015 HBT1506-JZC350 Concrete Mixer With Pump with diesel engine Quality Choice
- 2000 Pack / Packs per Month
- Shanghai / Nantong
- T/T L/C D/P D/A Credit Card PayPal
- simple operation js series large scale 3000l high quality concrete mixer for sale
- stand bucket electrical 3000l concrete mixer in concrete batching plant
- good design complete concrete mixer plant with hopper on market
- powerful electric concrete mixer js3000 the manufacturer direct to sell
- full automatic double-shaft concrete mixer js3000 high quality on sale
- manufacture price cement concrete mixers self loading concrete mixer
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Jiacheng |
Model Number: | HBT1506-JZC350 | Motor Power: | diesel power 35kw | Mixing Power: | diesel power 35kw |
Charging Capacity: | 560L | Reclaiming capacity: | 350L | Speed of Mixing Drum: | 15r/min |
Water Supply Mode: | Water pump control | Working Cycle Period: | 15m³/h | Discharge Way: | Automatic |
Outline Dimension: | 5500*2300*2700mm | After-sales Service Provided: | Overseas third-party support available |
Product Description
Jiangsu Xincheng Construction Machinery&manufacturing Co.,Ltd
is a fixed-point company of Ministry of Construction of China, engaged in construction machinery research, development and manufacture. Our main products are JZM350, 500 and 750 concrete mixers, JS500, 750, 1000 and 1500 forced mixers, PL800, 1200, 1600 and 2400 batching machines, LSY160, 200 and 250 cement screw transfer machines and concrete mixing plant series.

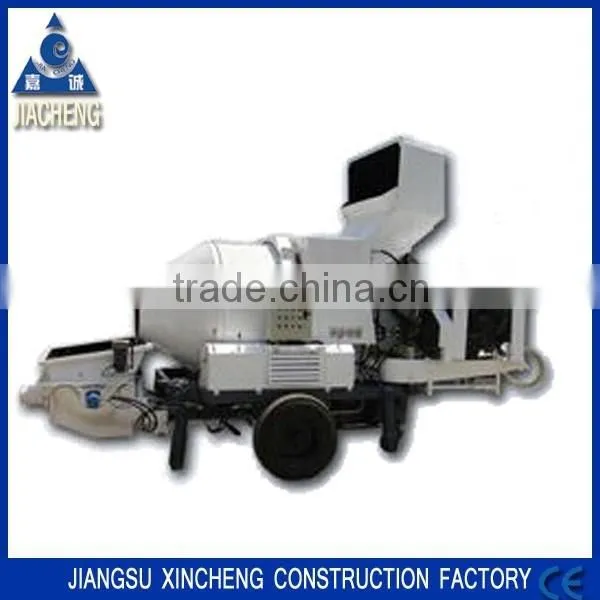

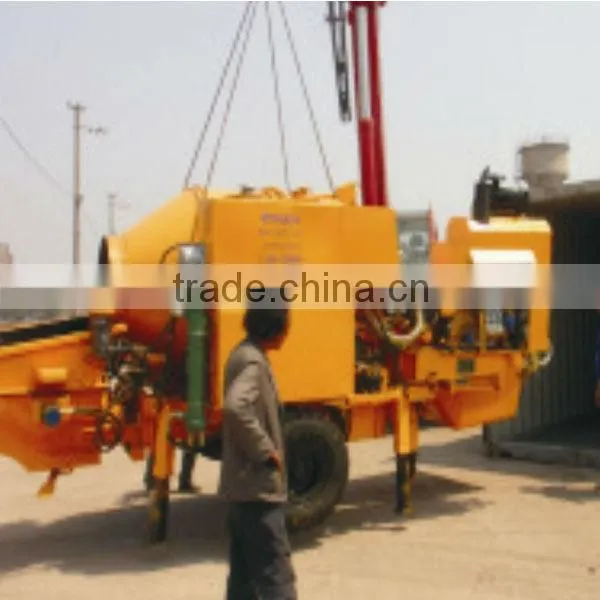

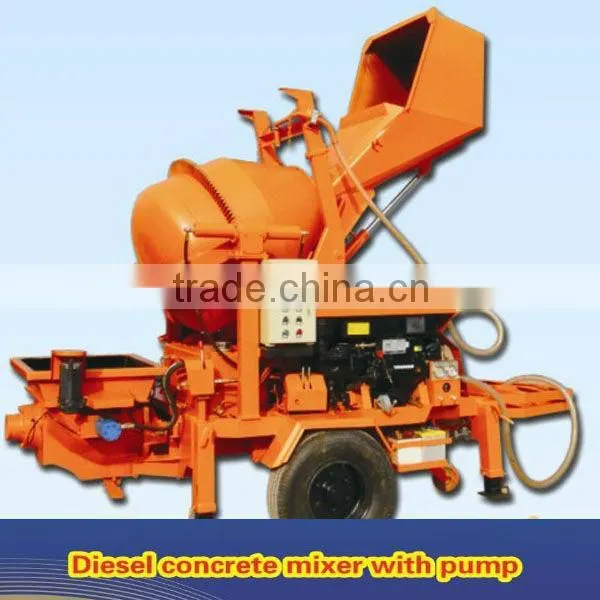

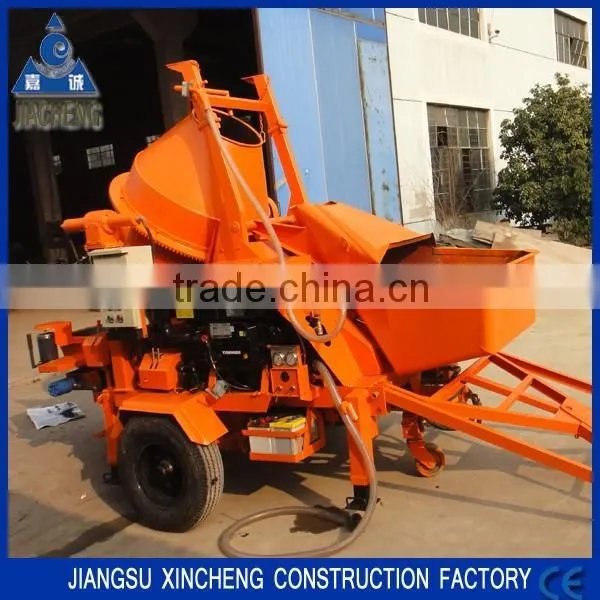

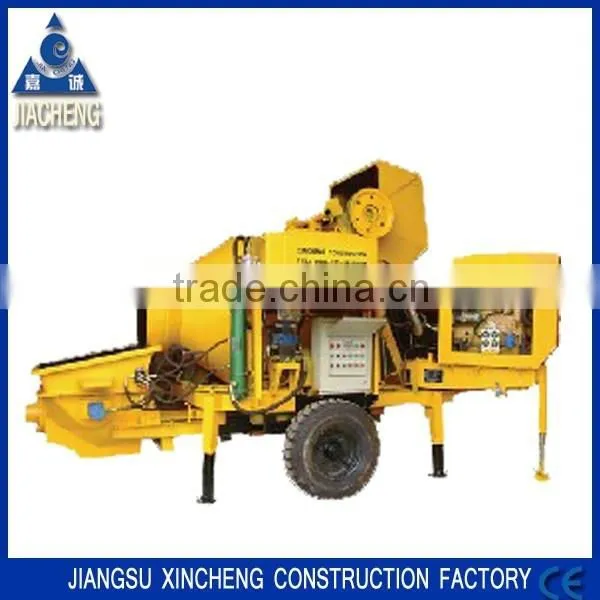

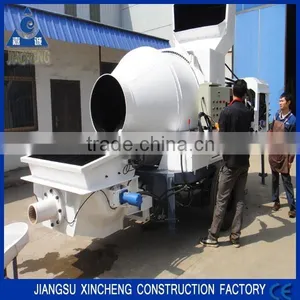

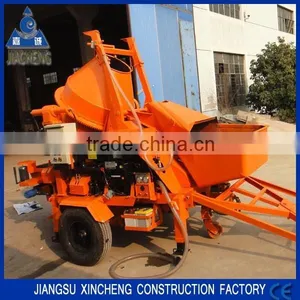

Concrete Mixer With Pump with diesel engine
Diesel engine small protable concrete mixer with pump is the newest products patented by our company, it is combined by the traditional concrete mixer and pump, it is the most suitable for use in four to six floor buildings, especially in the group buildings, bridges, and the spread of small construction sits where need the concrete mixer at the scene.
1. HBT1506-JZC350 diesel engine concrete mixer with pump Technical parameters:
Item | Unit | HBT2008-JZC350 | HBT1506-JZC350 | HBT0804-JZC200 |
Max Output | m³/h | 15 | 15 | 8 |
Theoretical Output | m³/h | 23 | 23 | 10 |
Max. Pressure on Concrete | MPa | 8 | 8 | 4 |
The type of distribution valve | S tube valve | S tube valve | S tube valve | |
delivery cylinder | mm | 180×800 | 180×800 | 140×800 |
main oil cylinder bore/Rod diameter x stroke | mm | Φ110/Φ65×800 | Φ90/Φ65×800 | Φ90/Φ65×800 |
Oil tank capacity | L | 250 | 250 | 100 |
Outlet opening diameter | mm | Φ150 | Φ150 | Φ150 |
Inner dia. of delivery pipe | mm | Φ125 | Φ125 | Φ125 |
Diesel model | HJ4100 | SL3105ABK | pumpCY1115(YANMAR) | |
Diesel power | KW | 44 | 35 | 16.2+13.2=29.4 |
Max. diameter of aggregates | mm | 40 | 40 | 30 |
Pulling speed | Km/h | ≤8 | ≤8 | ≤8 |
Maximum delivery Horizontal distance | M | 200 | 200 | 100 |
Maximum delivery Vertical distance | M | 40 | 40 | 30 |
Mixer Type | TOPLL | JZC350 | JZC350 | JZC200 |
Capacity of charge Hopper | L | 560 | 560 | 200 |
Capacity of discharge Hopper | L | 350 | 350 | 300 |
Charge hopper cylinder bore/Rod diameter x stroke | mm | Φ80/Φ50×600 | Φ80/Φ50×600 | Φ60/Φ40×600 |
Hydraulic motor /diesel of drum |
| A2F | A2F | CY1105(YANMAR) |
Water pump motor control |
| Electromagnetic clutch | Electromagnetic clutch | Electromagnetic clutch |
Diameter of drum | mm | 1440 | 1440 | 1000 |
Drum rotary speed | rpm | 15 | 15 | 15 |
Charge hopper load up time | s | 6 | 6 | 5 |
Charge hopper unload down time | s | 4 | 4 | 4 |
mixing time | s | 45-60 | 45-60 | 45-60 |
Tread distance | mm | 2250 | 2250 | 2100 |
length ×width ×height | mm | 5500×2300×2700 | 5500×2300×2700 | 4120×2100×2600 |
Weight | Kg | 4500 | 4300 | 3000 |
Packing quantity (20 foot) container |
| 1 | 1 | 1 |
2.Features:
1. With the concrete mixer pump two machines combined into a machine to move easily, strong, flexible maneuverability.
2. Concrete mixer and pump drive by a worker to make staff and save manual.
3. In order to the replacement of the concrete pistons, the join unit is scalable path between concrete mixer and pump.
4. Diesel or motor puts in a room, scalable activities and reduce the transport link of the horizontal dimensions.
5. The open hydraulic circuit, the system hydraulic pressure is lower, without easily damaged elements such as accumulator.
6. The hopper with a curved, the design of the transition, into rate is high with inhaling efficient.
7. Relays type integration electric system, simple and reliable.
8. Welding the wear plate and wear ring, but the restoration and use low cost.
9. Independence of the water cooling system, efficient.
