Specifications

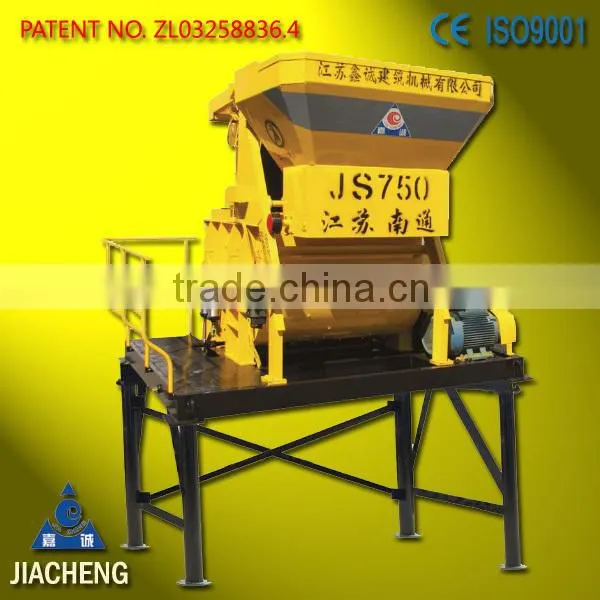

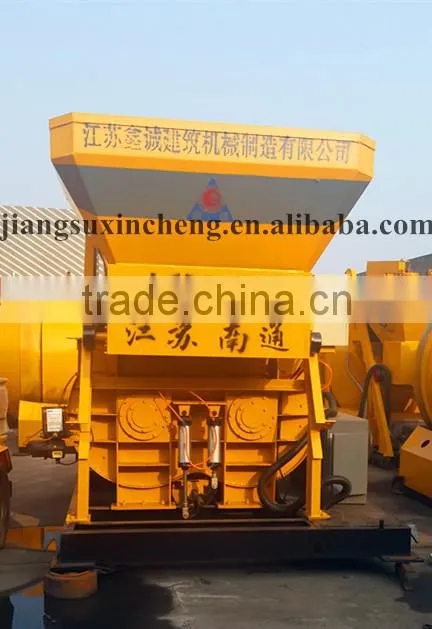

JS750 large capacity Concrete Mixer1.Rational structure
2.Good mixing quality
3.Low noise
Jiangsu Xincheng Construction Machinery&manufacturing Co.,Ltd
Our main products are JZM350, 500 and 750 concrete mixers, JS500, 750, 1000 and 1500 forced mixers, PL800, 1200, 1600 and 2400 batching machines, LSY160, 200 and 250 cement screw transfer machines and concrete mixing plant series.
Our company will provide different engineering tasks and manufacture ideal construction machines with advanced technology, excellent quality and high-quality service.
- JS750 large capacity Concrete Mixer is a kind of compulsory one with double axle.
- JS750 large capacity Concrete Mixer is suitable for medium and small-scale prefabrication plant and highways, bridges, water conservancy and other industrial and civil engineering construction sectors to mix dry hard, pasty, plastic, and light aggregate concrete.
- JS750 large capacity Concrete Mixer can be either used as the single machine or combined with concrete batching machine to make a simple mixing station.
Main technical parameters of JS750 large capacity Concrete Mixer
Model |
JS750 |
|
Feed Capacity |
1200L |
|
Discharge Capacity |
750L |
|
Maximum Productivity |
37.5m³/h |
|
Maximum Aggregate Size |
80/60mm |
|
Mixing Blades |
Rotation Speed |
32.6r/min |
Number |
7×2 |
|
Stirring Motor |
Type |
Y200L-4(B3) |
Power |
30kw |
|
Lifting Motor |
Type |
YEZ41-4 |
Power |
7.5kw |
|
Pump Motor |
Type |
65DWB35-5 |
Power |
1.5kw |
|
Average Rate of Hopper Movement |
0.3m/s |
|
Unload Material Height |
1500mm |
|
Overall Dimensions(Length*Width*Height) |
3636*2805*2895mm |
|
Weight |
5500kg |
|
Packaging Details: export packing
Delivery Detail: within 7 days
