Help Center350L Hydraulic Concrete Mixer With Diesel Engine
Related Products
-
2015 JZM400 Concrete Cement Mixer MachineUS$ 1 - 3,000MOQ: 1 Set -
JZM450 Electric Concrete Mixer Machine for SaleUS$ 1 - 3,000MOQ: 1 Set
-
JS750 Large Capacity Concrete MixerUS$ 4,500 - 6,000MOQ: 1 Set
-
Top Sales China Supplier JS750 Concrete Mixer With High QualityUS$ 4,500 - 6,000MOQ: 1 Set
-
2015 New Type Cement Concrete Mixer Jzm350US$ 1 - 3,000MOQ: 1 Set
Jiangsu Xincheng Construction Machinery&manufacturing Co.,Ltd
is a fixed-point company of Ministry of Construction of China, engaged in construction machinery research, development and manufacture. Our main products are JZM350, 500 and 750 concrete mixers, JS500, 750, 1000 and 1500 forced mixers, PL800, 1200, 1600 and 2400 batching machines, LSY160, 200 and 250 cement screw transfer machines and concrete mixing plant series.
Our company has been awarded as "The Famous Brand" in Jiangsu market because of our Jiangcheng brand products, which have won the gold medal in the international exposition. We have had a number of national patents and have passed the test by Quality and Technical Supervision Bureau of Nantong. Our products are sold to domestic provinces, municipalities and autonomous regions and are also exported to Southeast Asia, the Middle East, Africa, Russia, etc.
Our company will provide different engineering tasks and manufacture ideal construction machines with advanced technology, excellent quality and high-quality service.
1. 350L Hydraulic Concrete Mixer With diesel engine was designed as the motive power of the mixer, which could stir the plastic concrete and semi-dry nature of concrete and produce 350L concrete per tank, the productivity is 10-14m³.
2.It is suitable for construction sites, roads, bridge constructions and fabrication sites of small prefabricated concrete members.
3.The machine equips of 350L Hydraulic Concrete Mixer With diesel engine with advanced items, high productivity, cramped construction, low-power and etc. The concrete mixer’s host is the diesel engine which will not limited by the natural environment, to ensure the project.
4. The Power source of 350L Hydraulic Concrete Mixer With diesel engine is diesel engine. So it also even can operate in areas without a reliable electricity supply.

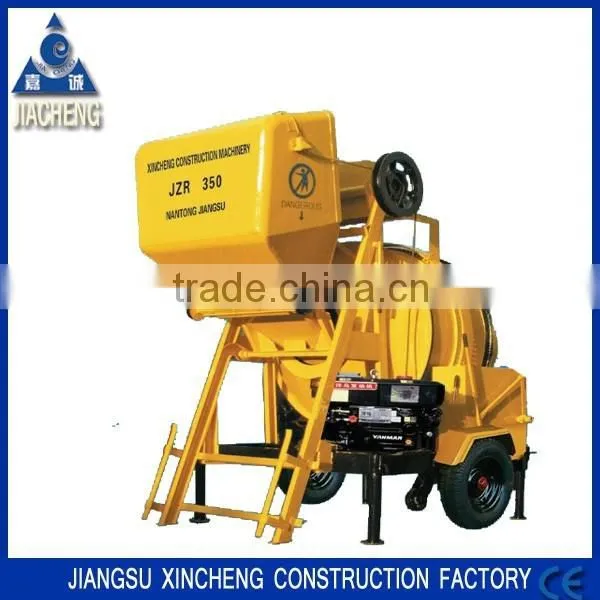

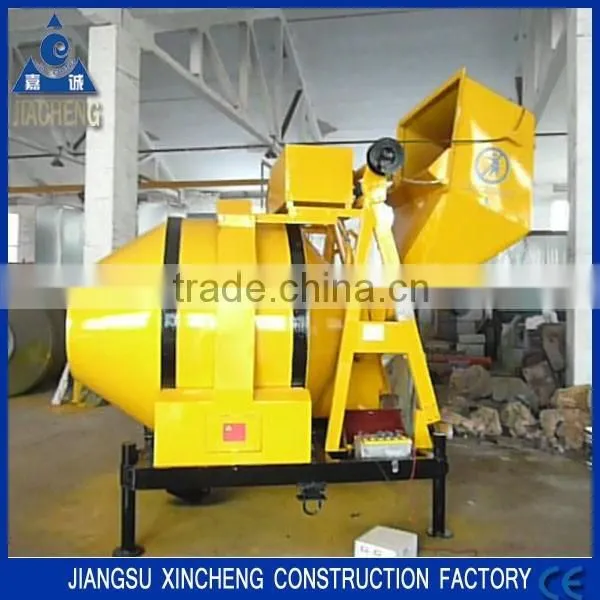

350L Hydraulic Concrete Mixer With diesel engine
Main technical parameters:
Model |
JZR350 |
Feed Capacity |
560L |
Discharge Capacity |
350L |
Productivity |
10-14m³/h |
Number of Operation Cycles |
40/h |
Standard Power |
9.7kw/2200r/min |
Starting Means |
automatic |
Mixing Drum Speed |
17r/min |
Water Tank Volume |
65L |
Maximum Aggregate Diameter |
60mm |
Time of Loading Skip Lifting |
7s |
Type of Tire |
6.50-16 |
Dimensions(Length*Width*Height) |
2950*2250*2650mm |
Weight |
2100kg |
Diesel engine powered with Hydraulic tipping hopper
| Packaging Details: | exprot packing |
|---|---|
| Delivery Detail: | within 30 days |
----------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------
-
----------------------------------------------------------------------------------------------------------------------------------------------------
