Specifications
Energy Saving JS1000 self loading concrete mixer1.High efficiency
2.Low energy consumption
3.Low noise
Jiangsu xincheng construction machinery&manufacturing co.,ltd can
offers the whole set of concrete mixer Concrete Mixing Plant equipments.
1. Energy Saving JS1000 self loading concrete mixer is a kind of compulsory one with double axle.
2. Energy Saving JS1000 self loading concrete mixer is suitable for medium and small-scale prefabrication plant and highways, bridges, water conservancy and other industrial and civil engineering construction sectors to mix dry hard, pasty, plastic, and light aggregate concrete.
3. Energy Saving JS1000 self loading concrete mixer
can be either used as the single machine or combined with concrete batching machine to make a simple mixing station.
4. Energy Saving JS1000 self loading concrete mixer Main technical parameters:
Model |
JS1000 |
|
Feed Capacity |
1600L |
|
Discharge Capacity |
1000L |
|
Maximum Productivity |
≥50m³/h |
|
Maximum Aggregate Size |
80/60mm |
|
Mixing Blades |
Rotation Speed |
27r/min |
Number |
8×2 |
|
Stirring Motor |
Type |
Y225L-4 |
Power |
37kw |
|
Lifting Motor |
Type |
160S-4-B5 |
Power |
15kw |
|
Pump Motor |
Type |
IS080-65-125(C) |
Power |
3kw |
|
Average Rate of Hopper Movement |
0.4m/s |
|
Discharge Cylinder Model |
QGB80×200-S |
|
Unload Material Height |
2700/2800mm |
|
Overall Dimensions(Length*Width*Height) |
4500*2400*2745mm |
|
Weight |
11000kg |
|

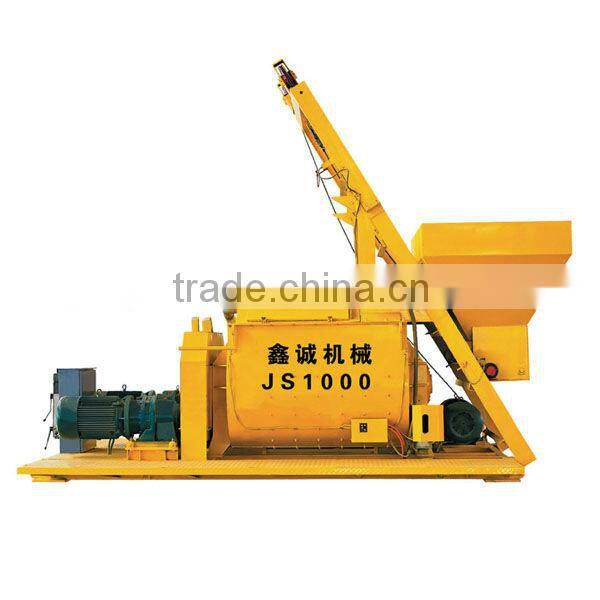

5. Energy Saving JS1000 self loading concrete mixerpicture
