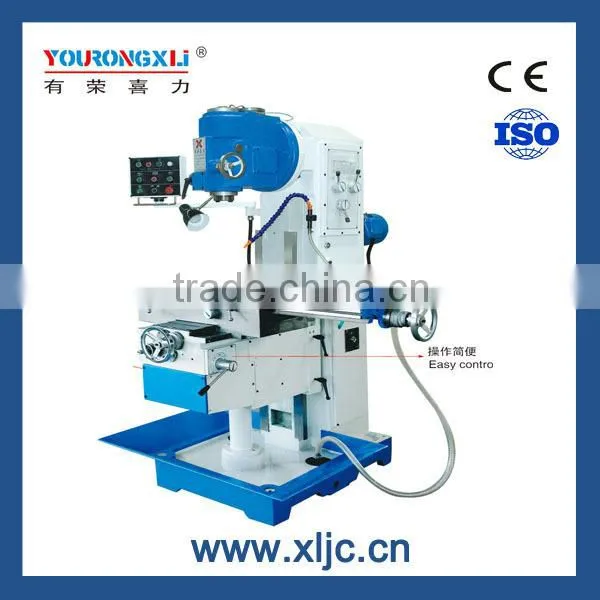

XQ5032 AC Servo Motor Light Type Milling Machine

Name: XQ5032 AC Servo Motor Light Type Milling Machine
Brand: YOURONGXILI
SKU: 106422555

US$ 1,000 - 5,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number XQ5032

Type Vertical

CNC or Not Normal

Voltage 380V

Power(W) 3000

Dimension(L*W*H) 1720*1680*1810

Weight 1550kg

Certification CE ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Driven by Ac servo motor
2. Table automatic feed on X,Y,Z
3. Automatic rapid feed X,Y,Z

XQ5032 AC Servo Motor light type Milling Machine

Specification	Unit	XQ5032	XQ5032A		XQ5032B	XQ5032C
Table size	mm	1270X320	1370X320		1270*320	1370*320
Table Travel (X/Y/Z)	mm	720/300/400	820/300/400		900/380/400	1000/380/400
Distance from spindle nose to work surface	mm	35-435
Spindle hole taper	---	7:24 ISO40
Rapid speed of table (X/Y/Z)	mm/min	1000/1000/750
Table feed (X/Y/Z)	mm/min	Variable
T-slots(NO./Width/Pitch)	mm	3/14/80
Spindle speed range	r/min	12steps 35-1500
Stroke of spindle quill	mm	70
Distance between spindle axis and column guideway	mm	285
Swivel angle of Vertical milling head	---	±30°
Main motor power	kw	3
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1720X1680X1810		1820X1680X1810	1720X1680X1810	1820X1680X1810
Net weight	kg	1550		1600	1600	1650
