X5032 High Speed Metal Processing Milling Machine

Name: X5032 High Speed Metal Processing Milling Machine
Brand: YOURONGXILI
SKU: 106422579

US$ 1,000 - 5,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number X5032

Type Vertical

CNC or Not Normal

Voltage 380V

Power(W) 7500

Dimension(L*W*H) 2294 x 1770 x 1904

Weight 2900kg

Certification CE & ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Spindle taper: ISO50 (7:24)
2. Spindle speed range: 1500r/min
3. Max swivel angle of vertical milling head:+/-45

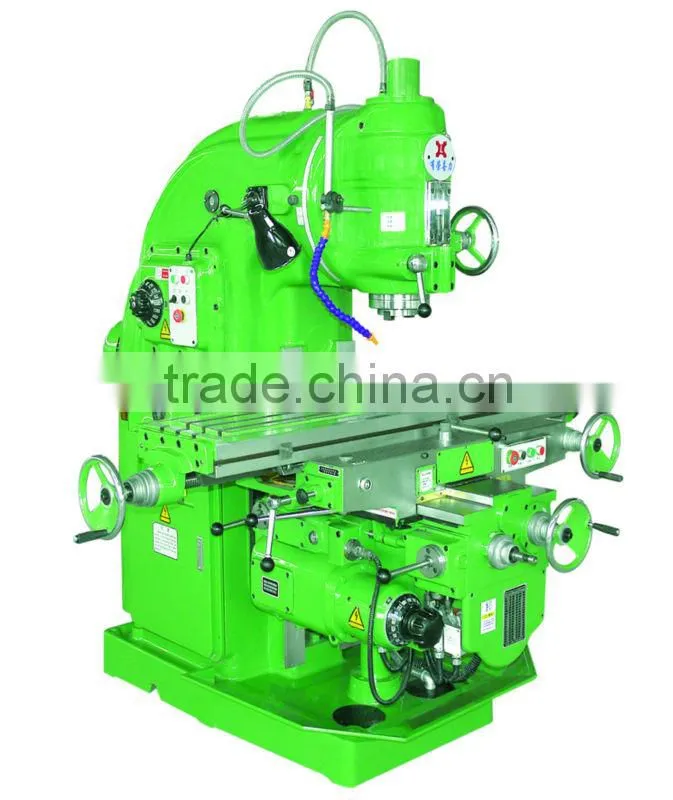

X5032 high speed metal processing Milling machine

Specification	Unit	X5032	X5032B	X5032H	X5032BH
Table size	mm	320X1325	320X1600	320X1325	320X1600
T-slots(NO./Width/Pitch)		3/18/70
Longitudinal travel (manual/auto)	mm	700/680	900/880	700/680	900/880
Cross travel (manual/auto)	mm	255/240
Vertical travel (manual/auto)	mm	370/350		460/440
Rapid feed speed X/Y/Z	mm/min	2300/1540/770
Spindle bore diameter	mm	29
Spindle taper		7:24 ISO50
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18 steps
Stroke of spindle quill	mm	70
Max.swivel angle of vertical milling head		±45°
Distance between spindle nose and table surface	mm	30-400		30-490
Distance between spindle axis and column guideway	mm	350
Feed motor power	kw	1.5
Main motor Power	kw	7.5
Overall size(L×W×H)	mm	2294×1770×1904	2294×2050×1904	2294×1770×2084	2294×2050×2084
Net weight	kg	2900/3200	3000/3300		3100/3400
