Home > Products > Vertical Knee Type Milling Machine > X5040 Vertical conventional milling machine

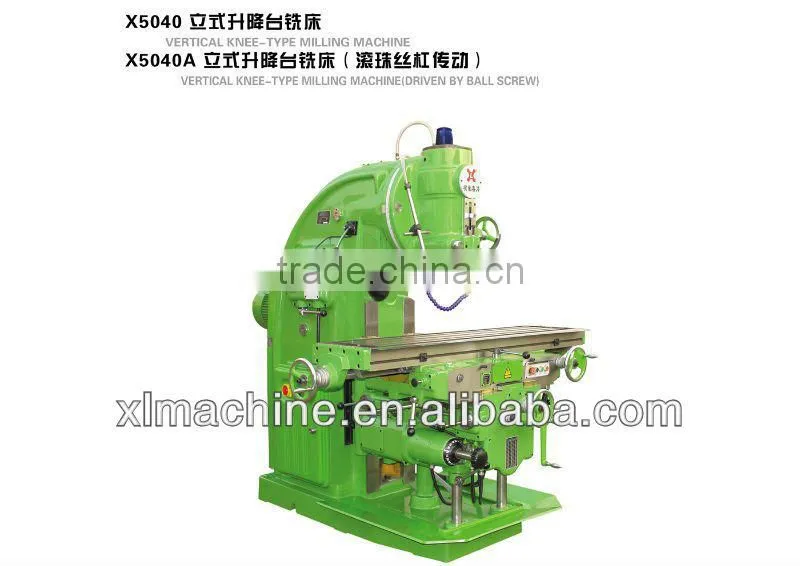

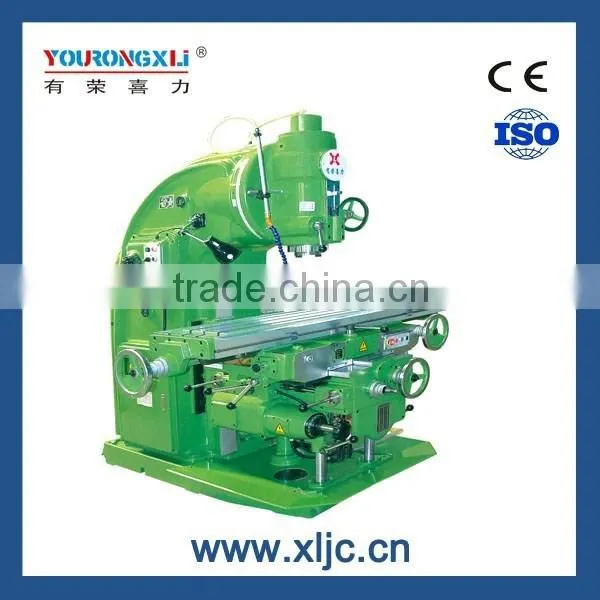

X5040 Vertical conventional milling machine
USD $10,000 - $15,000
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- Qingdao
- T/T
You May Like
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | YOURONGXILI |
Model Number: | X5040 | Type: | Vertical | CNC or Not: | Normal |
Voltage: | 380V | Power(W): | 11000 | Dimension(L*W*H): | 2556x2159x2298mm |
Weight: | 4250KG | Certification: | CE ISO | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Vertical conventional milling machine1. Pass the ISO and CE Certificate
2. High rigidity, capable of heavy load cutting
X5040 Vertical conventional milling machine
Units | X5040 | |
Table size | mm | 1700x400 |
No.of T-slots | 3 | |
Width of T-slots | mm | 18 |
Max load | kg | 800 |
Longitudinal travel(manual/auto) | mm | 900/880 |
Cross travel(manual/auto) | mm | 315/300 |
Vertical travel(manual/auto) | mm | 385/365 |
Rapid feed speed | mm/min | X:2300,Y:1540,Z:770 |
Spindle speed range | r/min | 30-1500 |
Spindle speed step | steps | 18 |
Spindle travel | mm | 85 |
Max.swivel angle of spindle | ±45 | |
Distance between spindle nose and table surface | mm | 30/500 |
Power of spindle motor | kw | 11 |
Overall dimensions(LxWxH) | mm | 2556X2159X2298 |
Net weight | kg | 4250 |
