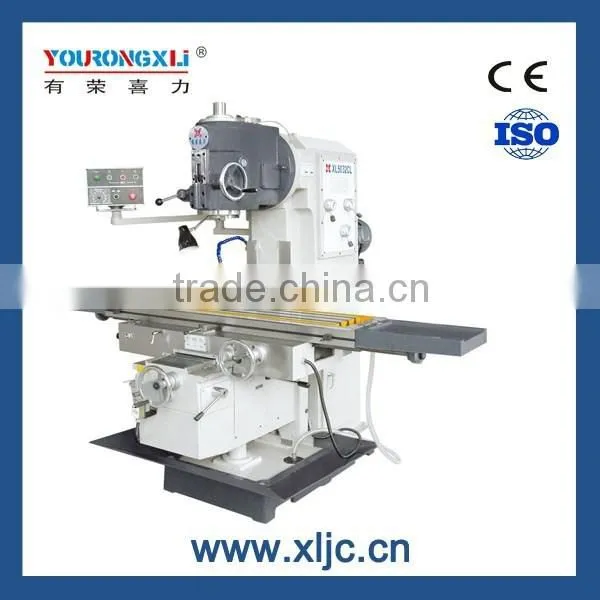

3 Way DRO Milling Machine With Bed Lift Mechanism XL5032
US$ 5,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
YOURONGXILI
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
X5032 Metal Vertical Milling MachineUS$ 3,000 - 6,000MOQ: 1 Set -
X5032 Vertical Milling Machine ChinaUS$ 5,000 - 10,000MOQ: 1 Set
-
XQ5032 Low-cost Light Duty Miling MachineUS$ 1,000 - 5,000MOQ: 1 Set
-
XL5030 China Built Vertcal Knee Style Milling Maching BrandsUS$ 1,000 - 10,000MOQ: 1 Set
-
XL5032 Utmost Precision Servo Motor Knee Style Milling MachineryUS$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
YOURONGXILI
Model Number
XL5032
Type
Vertical
CNC or Not
Normal
Voltage
220V/380V
Power(W)
5500W
Dimension(L*W*H)
1800*2100*2150mm
Weight
2750kg
Certification
CE; ISO9001:2008
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
DRO milling machine with bed lift mechanism1Driven by Ac servo motor
2Table automatic feed on X,Y,Z
3Automatic rapid feed
3 way DRO milling machine with bed lift mechanism XL5032
Specification |
Units |
XL5032 |
Spindle taper |
|
7:24 ISO50 |
Distance between spindle nose and table |
mm |
50~510 |
Spindle speed range |
|
(12 Steps)50~1475r.p.m |
Swivel angle of vertical milling head |
|
±30° |
Spindle tracel |
mm |
70 |
Table size |
mm |
1325 x 320 |
Table travel(X.Y.Z) |
mm |
750/360/420 |
Table feed (x.Y.Z) (mm/min) |
mm/min |
30—1200/20—800/ 15--600 |
T-slots(NO:/width/pitch) |
|
3/18/70 |
Main motor power |
kw |
5.5 |
3 to feed Ac servo motor torque |
|
10 |
Overall size ( L x W x H ) |
mm |
1800 x 2100 x 2150 |
Net weight |
kg |
2750 |
