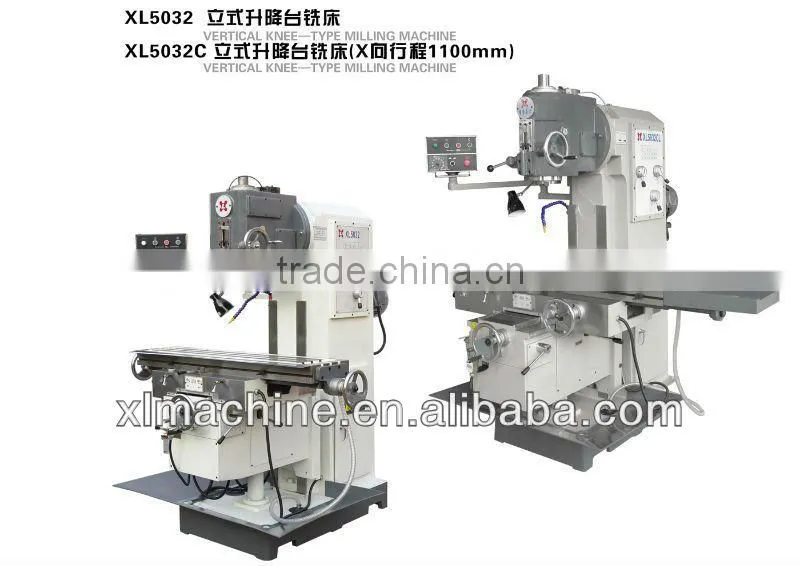

Help CenterXL5032 Price of Vertical Knee Type Milling Machines
Related Products
-
Conventional Heavy Duty Vertical Knee Type Milling MachineUS$ 12,000 - 15,000MOQ: 1 Set -
Conventional Heavy Duty Vertical Milling Machine for Metal MachiningUS$ 16,000 - 20,000MOQ: 1 Set
-
Servo Motor Feed Milling Machine/semi-automatic Knee Type Milling MachineUS$ 8,000 - 10,000MOQ: 1 Set
-
X5032 Small Vertical Knee Type Mills MachineUS$ 3,000 - 6,000MOQ: 1 Set
-
Metal Working Milling Machine Combo MillUS$ 8,000 - 10,000MOQ: 1 Set
Specifications
1. Pass the ISO9001:2008 Certificate2. High rigidity, capable of heavy load cutting
3. Large amount of cutting
Specification |
Unit |
XL5032 |
XL5032C |
XL5032CL |
Table size |
mm |
1325X320 |
1600X320 |
|
T-slots(NO./Width/Pitch) |
|
3/18/70 |
||
Longitudinal travel |
mm |
750 |
1100 |
1300 |
Cross travel |
mm |
320 |
||
Vertical travel |
mm |
460 |
450 |
|
Table feed (X/Y/Z) |
mm/min |
30-750/20-500/15-375 8steps |
||
Table rapid speed(X/Y/Z) |
mm/min |
1200/800/600 |
||
Spindle taper |
|
7:24 ISO50 |
||
Spindle speed range |
r.p.m |
50-1475 |
||
Spindle speed step |
steps |
12steps |
||
Spindle travel |
mm |
70 |
||
Max. swivel angle of vertical milling head |
|
±30° |
||
Distance between spindle nose and table surface |
mm |
50-510 |
50-500 |
|
Distance between spindle axis and column guideway |
mm |
378 |
||
Torque of X/Y/Z axis AC servo motor |
N.m |
10 |
||
Main motor Power |
kw |
5.5 |
||
Overall dimensions (L×W×H) |
mm |
1800×2100×2150 |
2245×2100×2150 |
2520×2100×2150 |
Net weight |
kg |
2750 |
2850 |
2900 |
Product Description:
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in milling plane, inclined plane and slot on miscellaneous work pieces of various metals by means of cylindrical or angle milling cutter in either down-milling or up-milling. It is characterized by stabilizing precision, sensitive response, light in weight, power feed and rapid adjustment in longitudinal, cross, vertical traverse. Equipped with various accessories, it can be applicable to versatile processing.
Vertical milling machine is suitable for milling various metals. It can mill plane, inclined plane, groove, keyway and also can drill and bore with special equipment. The machine introduces ball screw drive and higher spindle speed. Every kind of vertical milling machine can be equipped with digital display.
Standard accessories:
1. ISO50 Milling chuck
2. ISO50 Cutter arbor
3. Inner hexagon spanner
4. Double head wrench
5. Single head spanner
6. Oil gun
7. Drawbar
