Help CenterServo Motor Feed Milling Machine/semi-automatic Knee Type Milling Machine
Related Products
-
X5032 Small Vertical Knee Type Mills MachineUS$ 3,000 - 6,000MOQ: 1 Set -
Metal Working Milling Machine Combo MillUS$ 8,000 - 10,000MOQ: 1 Set
-
Conventional Heavy Duty Milling MachineUS$ 15,000 - 20,000MOQ: 1 Set
-
Metal Processing Milling Machine With Motorized Lift MechanismUS$ 8,000 - 10,000MOQ: 1 Set
-
Brand Quality Milling Machine for SaleUS$ 4,000 - 6,000MOQ: 1 Set
Specifications
Driven by Ac servo motorTable automatic feed on X/Y/Z
Automatic rapid feed X/Y/Z

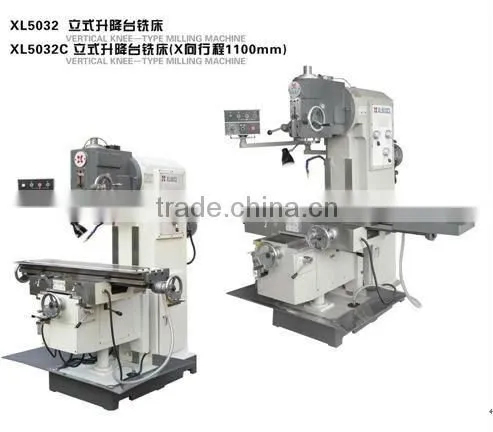

Vertical Knee Type Milling machine XL5032
Specification |
Units |
XL5032 |
Spindle taper |
|
7:24 ISO50 |
Distance between spindle nose and table |
mm |
50~510 |
Spindle speed range |
|
(12 Steps)50~1475r.p.m |
Swivel angle of vertical milling head |
|
±30° |
Spindle tracel |
mm |
70 |
Table size |
mm |
1325 x 320 |
Table travel(X.Y.Z) |
mm |
750/360/420 |
Table feed (X.Y.Z) (mm/min) |
mm/min |
30—1200/20—800/ 15--600 |
T-slots(NO:/width/pitch) |
|
3/18/70 |
Main motor power |
kw |
5.5 |
3 to feed Ac servo motor torque |
|
10 |
Overall size ( L x W x H ) |
mm |
1800 x 2100 x 2150 |
Net weight |
kg |
2750 |
Product Description:
1. Get the ISO9001:2008 Certification
2. High rigidity, capable of heavy load cutting
3. Large amount of cutting
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in machining of plane and arbitrary angle plane, and slotting, drilling, reaming, boring etc.
Standard accessories:
1. Plain vice
2. ISO50 Milling chuck
3. ISO50 Cutter arbor
4. Drawbar
5. Inner hexagon spanner
6. Double head wrench
7. Single head spanner
