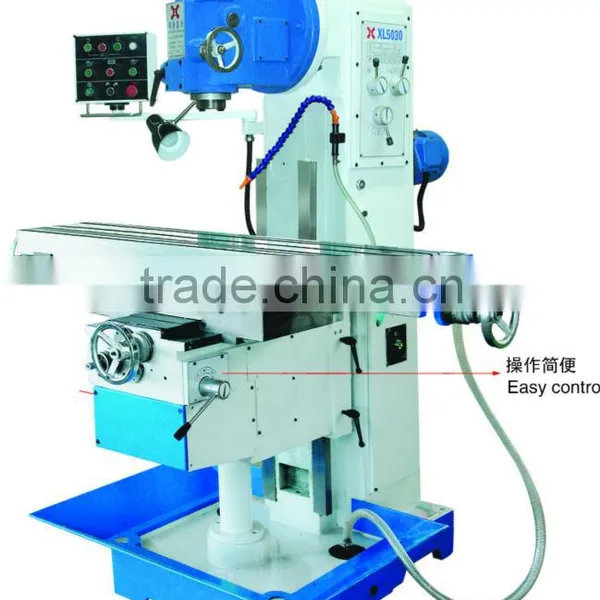

Servo Driven Knee Style Vertical Mill
US$ 6,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
YOURONGXILI
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Knee-Type Milling Machine X6128NegotiableMOQ: 1 Set -
Ball Screw Driven Vertical Knee Style Milling MachineUS$ 15,000 - 18,000MOQ: 1 Set
-
High Quality Vertical Knee Style Mill MachiningUS$ 15,000 - 18,000MOQ: 1 Set
-
Driven by Ballscrew Vertical Knee Mills MachiningUS$ 10,000 - 12,000MOQ: 1 Set
-
Knee-Type Milling Machine X5032NegotiableMOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
YOURONGXILI
Model Number
XL5030
Type
Horizontal
CNC or Not
Normal
Voltage
380V
Power(W)
3000W
Dimension(L*W*H)
1720*1680*1810
Weight
1500kg
Certification
CE
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Specification |
Unit |
XL6030 |
XL6130 |
|||
Table size |
mm |
1270X300 |
1370X300 |
1270X300 |
1370X300 |
|
Table Travel (X/Y/Z) |
mm |
720/300/400 |
820/300/400 |
720/300/400 |
820/300/400 |
|
Spindle taper |
--- |
7:24 ISO40 |
||||
Rapid speed of table (X/Y/Z) |
mm/min |
1000/1000/750 |
||||
Table feed (X/Y/Z) |
mm/min |
Variable |
||||
T-slots(NO./Width/Pitch) |
mm |
3/14/80 |
||||
Spindle speed range |
r/min |
12 steps 35-1500 |
||||
Distance between spindle nose and table surface |
mm |
75-475 |
35-435 |
|||
Distance between spindle axis and column guideway |
mm |
155 |
||||
Max. rotary angle of table |
° |
- |
±45° |
|||
Main motor |
kw |
3 |
||||
Torque of X/Y/Z axis AC servo motor |
N.m |
10 |
||||
Overall size |
mm |
1720X1680X1730 |
1820X1680X1730 |
1720X1680X1730 |
1820X1680X1730 |
|
Net weight |
kg |
1500 |
1550 |
1550 |
1600 |
|
