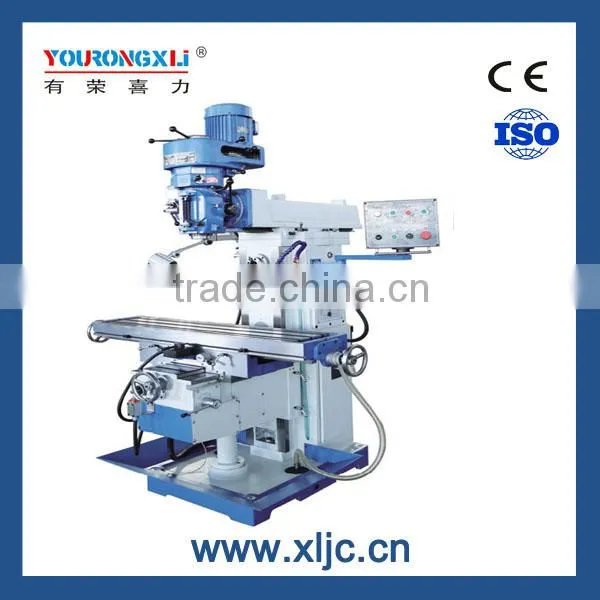

XQ6332W Light Duty Turret Ram Milling Machine With Rotary Table

Name: XQ6332W Light Duty Turret Ram Milling Machine With Rotary Table
Brand: YOURONGXILI
SKU: 106420745
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number XQ6332W

Type Universal

CNC or Not Normal

Voltage 380V

Power(W) 5000

Dimension(L*W*H) 1720*1680*2350

Weight 1680kg

Certification CE ISO

Warranty 12 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Driven by servo motor
Table automatic feed on X,Y,Z
Automatic rapid feed X,Y,Z

XQ6332W light duty turret ram milling machine with rotary table

Specifications	Unit	XQ6332	XQ6332A		XQ6332B		XQ6332C
Table size	mm	1270X320	1370X320		1270*320		1370*320
Table travel (X/Y/Z)	mm	720/300/400	820/300/400		900/380/400		1000/380/400
Rapid speed of table (X/Y/Z)	mm/min	1000/1000/750
Spindle taper	---	3HP: R8 or ISO30; 5HP: ISO40
		IS040
Table feed (X/Y/Z)	mm/min	Variable
Distance between horizontal nose and table surface	mm	75-475
Distance between spindle axis and ram surface	mm	200
Spindle speed range	r/min	43-3225
		65-4660 (16 steps)
		12steps 35-1500
T-slots(No./width/pitch)	mm	3/14/80
Arm travel	mm	450
Main motor power	---	3HP or 5HP
		3Kw
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1720×1680×2350		1820×1680×2350		1720×1680×2350		1820×1680×2350
Net weight	kg	1680		1730		1730		1780

Rotary table can be ordered at special request

Model	Table size	Max table travel - X/Y/Z	Max rotary angle of table	Distance between spindle center line and table surface
XQ6332W	1270*320	720/300/400	±45°	35-435
XQ6332AW	1370*320	820/300/400
XQ6332BW	1270*320	900/380/400
XQ6332CW	1370*320	1000/380/400
