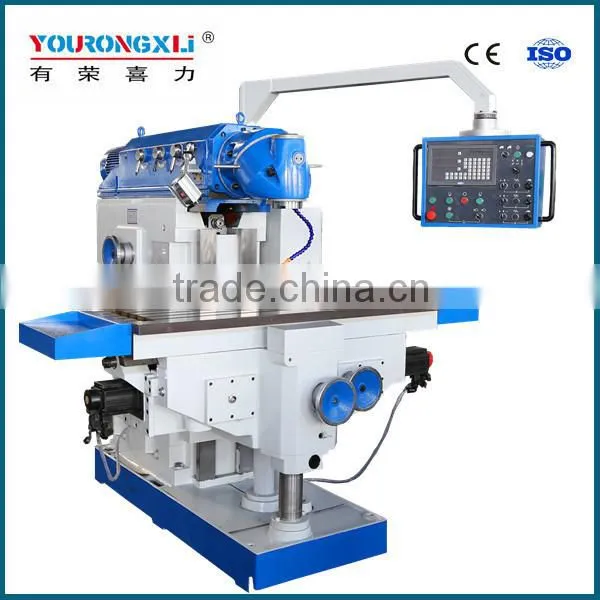

X5750 Super Heavy-duty Universal Milling Machine

Name: X5750 Super Heavy-duty Universal Milling Machine
Brand: Xili
SKU: 106420537

US$ 15,000 - 17,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Xili

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Xili

Model Number X5750 X5750A

Type Other, Vertical, Super Heavy-duty Universal Milling Machine

CNC or Not Normal

Voltage according to your request

Power(W) 7500

Dimension(L*W*H) 2625*2460*2080

Weight 5000

Certification CE , ISO9001

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Super Heavy-duty Universal Milling Machine X5750 X5750A

Product Description

Features:

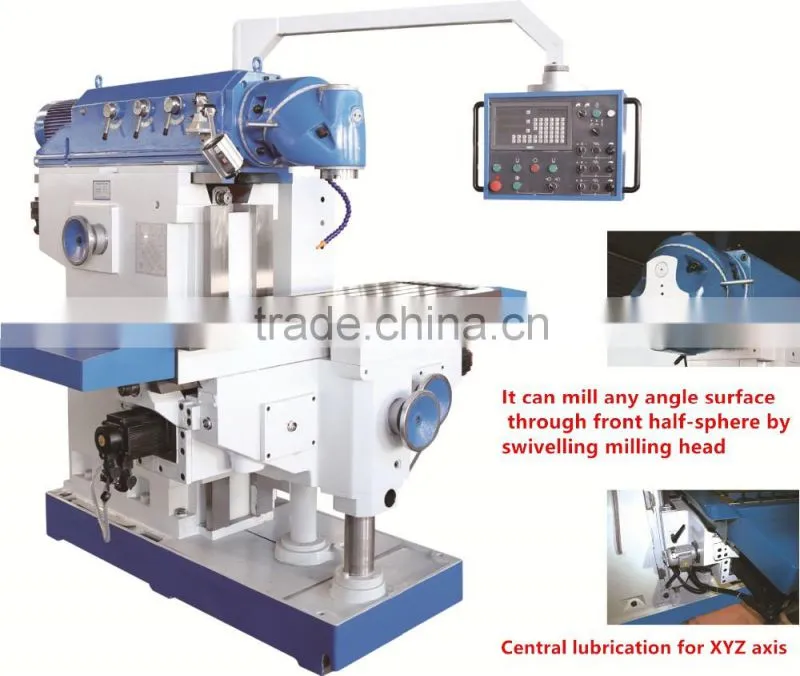

1.It can mill any angles surface through front half-sphere by swiveling milling head.

2.Table 3 axes with ballscrews, high precision.

3.Table feeding with 3 separate servo motors, variable speeds, not interfere each other, high reliability, easy to operate.

4.Mechanical change speeds in headstock, powerful milling.

5.Table with an extra supporting column, big load, high accuracy.

Specification of universal milling machine

Specifications	Unit	X5750	X5750A
Table size	mm	500*1600	500*2000
T-slots(NO./width/pitch)	mm	51880
Table travel (X/Y/Z)	mm	1200700500	1400700500
Swivel angle of milling head	-	360°
Spindle taper	-	ISO50	ISO50
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/5-500	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	25-525
Distance from spindle center line to column	mm	55-755
Main motor power	Kw	7.5
Feed motor	Kw	AC servo motor X/Y:15NM; Z: 18NM
Max load	Kg	1800	1800
Overall size	mm	247522602180	298622602180
weight	kg	5000	5500
