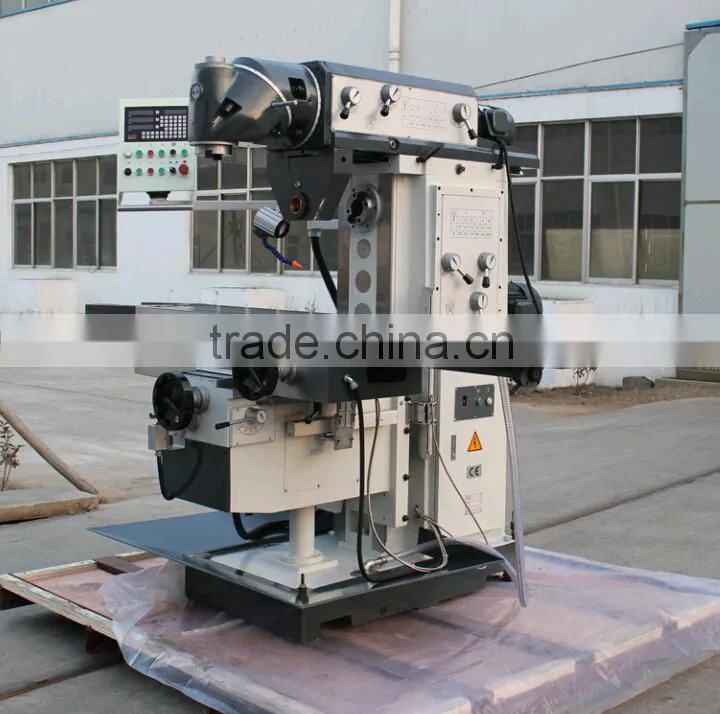

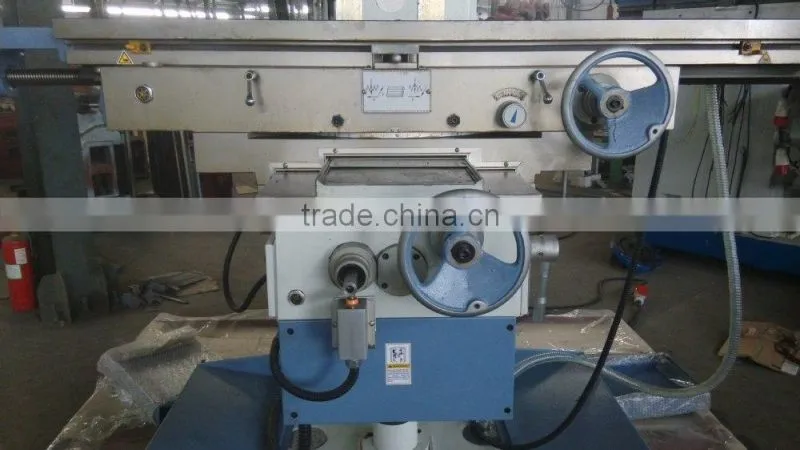

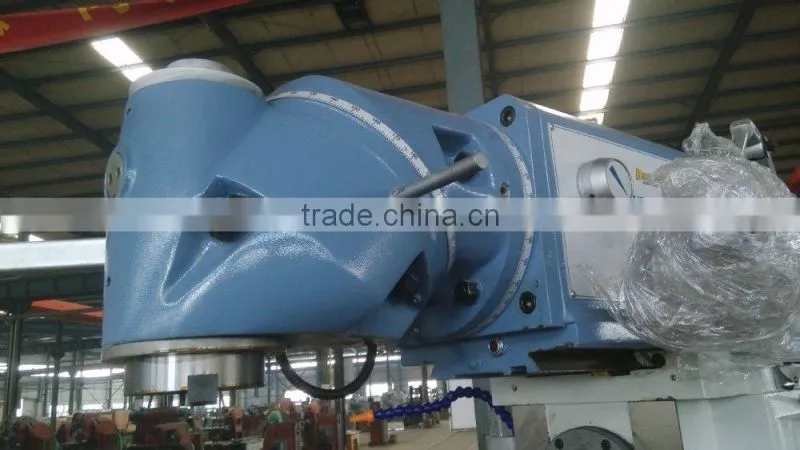

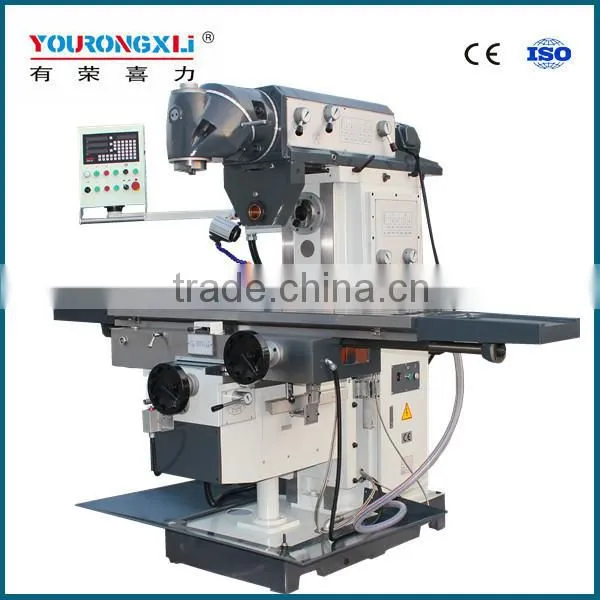

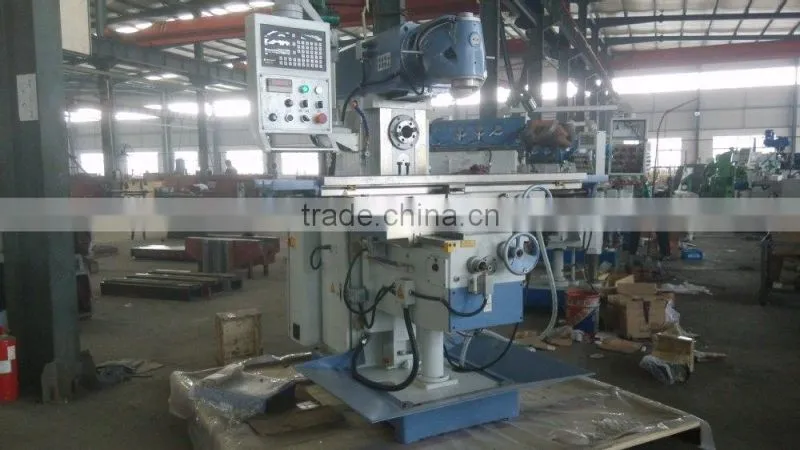

Radial Milling Machine XL6436
Specifications |
Unit |
XL6436 |
XL6436C |
XL6436CL |
Table size |
mm |
1325×360 |
1600×360 |
|
Table travel (X/Y/Z) |
mm |
750/320/460 |
1100/320/450 |
1300/320/450 |
Table feed(X/Y/Z) |
mm/min |
30~750/20~500/15~375 |
||
Spindle taper |
|
7:24 IS050 (H) 7:24 IS040 (V) |
||
Arm travel |
mm |
550 |
||
Distance between spindle nose and table surface |
mm |
196-656
|
||
Distance between horizontal nose and table surface |
mm |
20-480 |
20-470 |
|
Distance between spindle axis and arm surface |
mm |
245 |
||
Spindle speed range |
r.p.m |
12steps 60-1750 (V) 12steps 60-1800 (H) |
||
T-slots(NO./width/pitch) |
mm |
3/18/80 |
||
Main motor power |
Kw |
5.5 (H) 4 (V) |
||
3 to feed Ac servo motor torque |
N.m |
10 |
||
Overall size |
mm |
1800×2100×2000 |
2245×2100×2000 |
2520×2100×2000 |
Net weight |
kg |
2685 |
2750 |
2800 |
Standard accessories
1.Millingarbor
2.Milling chuck
3.Vice
4.Wrench and innerhexagon screw
5.Spindle connecting rod
Optional accessories
1.3DRO
2.Rotary table
3.T-Slotting head
