Specifications
Universal swivel head milling machineTable driven by servo motor
Table automatic feed on X/Y/Z
Get CE and ISO9001:2008

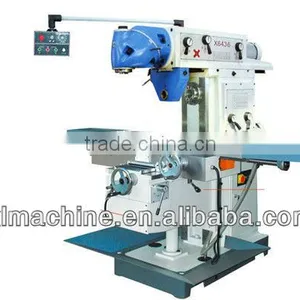

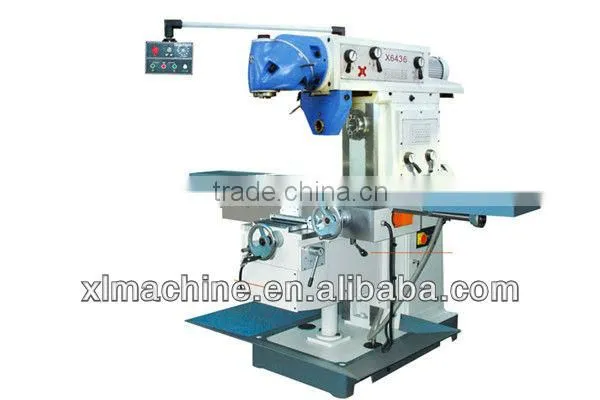

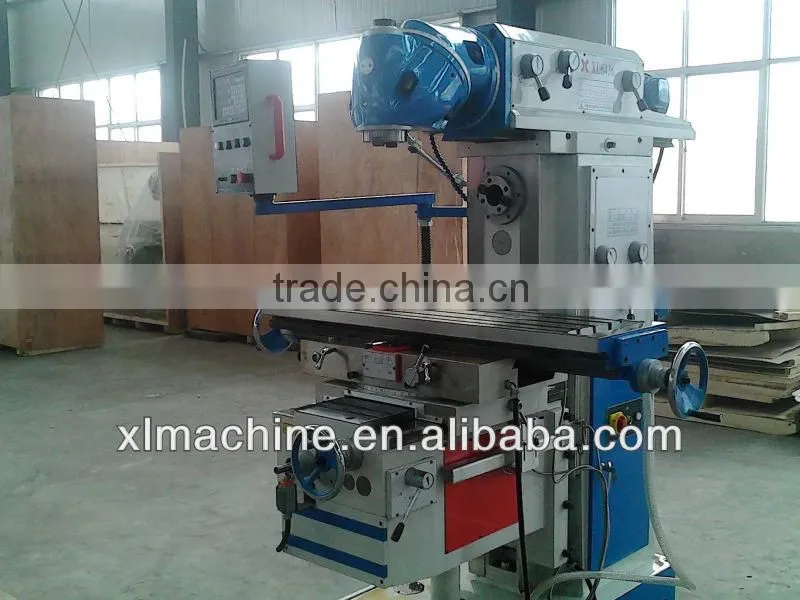

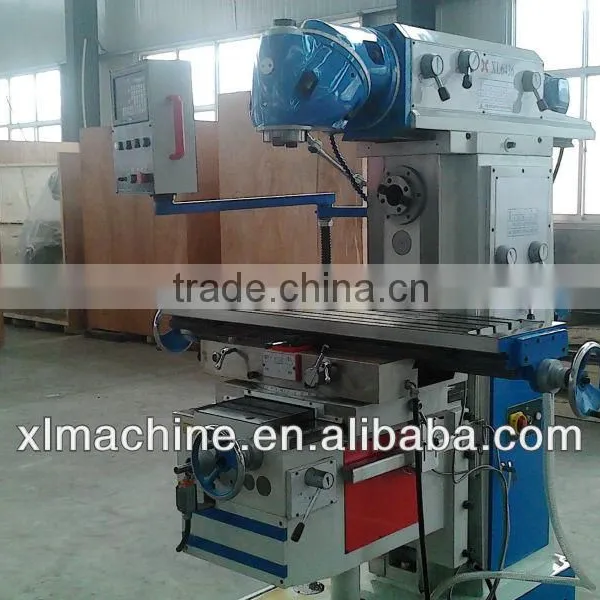

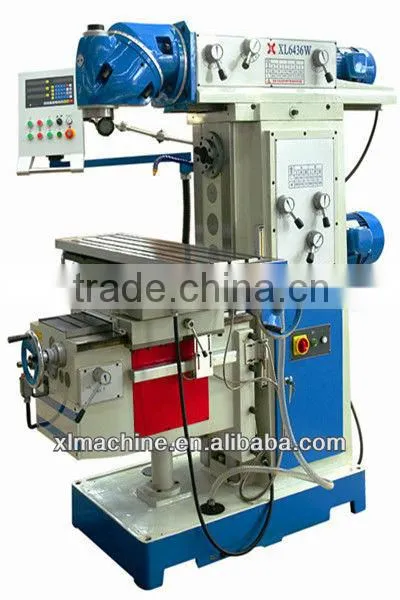

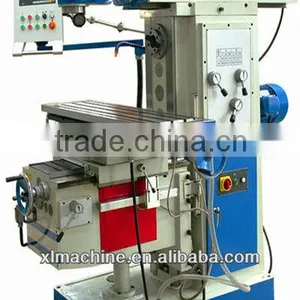

Universal Swivel Head Milling Machine
Parameter |
Unit |
XL6436 |
Table size |
mm |
1325*360 |
Table travel(X/Y/Z) |
mm |
750/310/390 |
Max rotary angle |
|
45° |
Table feed grade |
grade |
8 |
Table feed range(X/Y/Z) |
mm/min |
30-750/20-500/15-375 |
Table rapid speed X |
mm/min |
1200 |
Table rapid speed Y |
mm/min |
800 |
Table rapid speed Z |
mm/min |
600 |
Spindle taper |
|
V: 7:24, IS050; H: 7:24, IS050 |
Arm travel |
mm |
550 |
Distance between horizontal nose and arm |
mm |
30—420 |
Distance between spindle nose and table |
mm |
200-590 |
Distance between spindle and arm |
mm |
200 |
Spindle speed range |
rpm |
V: 12 grades, 60-1750; H: 12 grades, 60-1800 |
T-slots(N/W/D) |
mm |
3/18/80 |
Main motor power |
Kw |
H: 5.5; V: 4 |
X/Y/Z feed Ac servo motor torque |
Nm |
10 |
Coolant pump flow |
L/min |
25 |
Overall size |
mm |
1800*2100*2000 |
Net weight |
kg |
2700 |
Product Description:
Table driven by Ac servo motor
Table automatic feed on X/Y/Z
Get CE and ISO9001:2008 Certificate
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in machining of plane and arbitrary angle plane, and slotting, drilling, reaming, boring etc.
