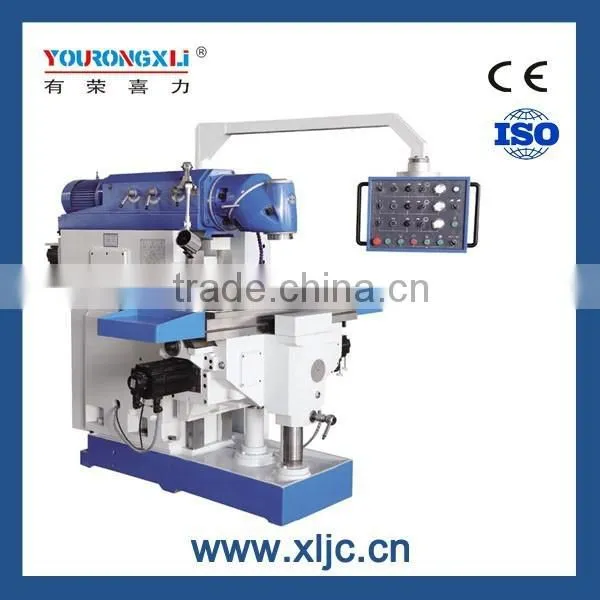

X5746 Universal Milling Machine for Tool and Die Construction, Form and Mold Constructions, Training Use
US$ 1,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
YOURONGXILI
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
X5746 Universal Swivel Head Milling Machine With Spindle BreaksUS$ 1,000 - 10,000MOQ: 1 Set -
7.5kw Drive Motor Heavy Duty Universal Milling MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
X5750 Heavy Duty Ram Milling Machine Price ListUS$ 1,000 - 10,000MOQ: 1 Set
-
X5750 Heavy Duty Ram Milling Spindle Gear DriveUS$ 1,000 - 10,000MOQ: 1 Set
-
X5750 High Quality Universal Swivel Head MillingUS$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
YOURONGXILI
Model Number
X5746
Type
Universal
CNC or Not
Normal
Voltage
220V/380V
Power(W)
5500W
Dimension(L*W*H)
2570*2035*1990
Weight
4000KG
Certification
CE & ISO
Warranty
12 months
After-sales Service Provided
Overseas third-party support available
Specifications
Milling Machine for tool and die construction1.Table size: 460X1235mm
2.Spindle taper: ISO40
3.Spindle speed range: 2050rpm
X5746 Universal Milling Machine for tool and die construction, form and mold constructions, training use
Specifications |
Unit |
X5746 |
Table size |
mm |
460*1235 |
T-slots(NO./width/pitch) |
mm |
5*18*80 |
Table travel (X/Y/Z) |
mm |
900*650*450 |
Swivel angle of milling head |
- |
360° |
Spindle taper |
- |
ISO40 |
Spindle speed range |
r.p.m |
(27) 30-2050 |
Table feed(X/Y/Z) |
mm/min |
10-1000/10-1000/6-640 |
Table rapid speed |
|
2200/2200/1100 |
Distance between spindle nose and table surface |
mm |
32-482 |
Distance from spindle center line to column |
mm |
47-697 |
Main motor power |
Kw |
5.5 |
Feed motor |
Kw |
AC servo motor X/Y:15NM; Z: 18NM |
Max load |
Kg |
800 |
Overall size |
mm |
1835*2362*2090 |
weight |
kg |
4000 |
