XL6032 Servo Motor Horizontal Knee-type Milling Machine

Name: XL6032 Servo Motor Horizontal Knee-type Milling Machine
Brand: XILI
SKU: 106418335
Availability: InStock

US$ 6,000 - 8,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

XILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name XILI

Model Number X6140

Type Universal

CNC or Not Normal

Voltage according to customer request

Power(W) 11

Dimension(L*W*H) 2556*2159*1770

Weight 3850

Certification CE ISO9001

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Horizontal Knee-type Milling Machine

Product Description

Specification

Specification	Unit	XL6032	XL6032C	XL6032CL
Spindle taper	-	7:24 ISO50
Distance between spindle nose and table	mm	20-480	20-470
Distance from spindle axis to arm	mm	175
Spindle speed range	-	12steps 60~1800r.p.m
Table size	mm	1325X320		1600X320
Table travel(X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30-750 / 20-500 / 15-375
Table rapid speed (X/Y/Z)	mm/min	1200/800/600
T-slots(NO:/width/pitch)	mm	3/18/70
Arm travel	mm	500
Main motor power	kw	5.5
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1800X2100X1870	2245X2100X1870	2520X2100X1870
Net weight	kg	2400	2465	2510

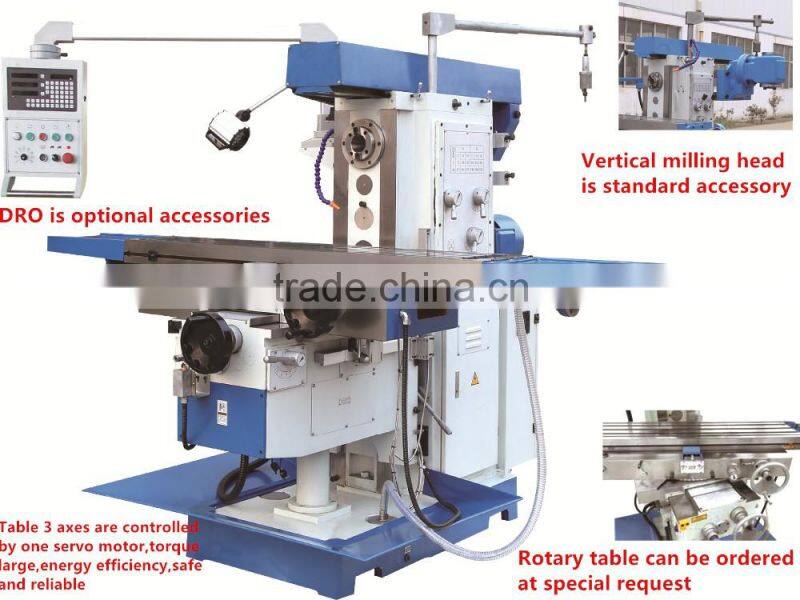

Swivel Table can be ordered

Model	Table size	Max table travel - X/Y/Z	Max rotary angle of table	Distance between spindle center line and table surface
XL6132	1325×320	750/320/400	±45°	20-420
XL6132C	1325×320	1100/320/400
XL6132CL	1600X320	1300/320/400
