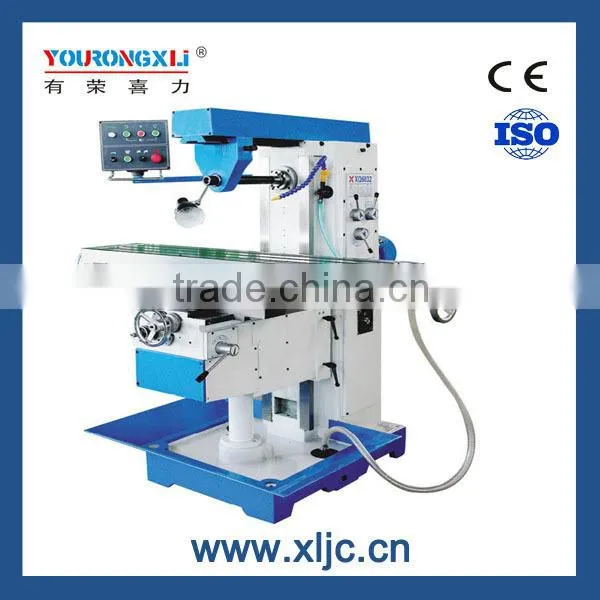

XQ6032 Servomill Horizontal Portable Milling Machine

Name: XQ6032 Servomill Horizontal Portable Milling Machine
Brand: XILI
SKU: 106418281

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

XILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name XILI

Model Number XQ6032

Type Horizontal

CNC or Not Normal

Voltage according to customer request

Power(W) 3

Dimension(L*W*H) 1720*1680*1730

Weight 1530

Certification CE ISO9001

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Portable Milling Machine XQ6032

Specification	Unit	XQ6032	XQ6032A	XQ6032B		XQ6032C
Table size	mm	1270X320	1370X320	1270*320		1370*320
Table Travel (X/Y/Z)	mm	720/300/400	820/300/400	900/380/400		1000/380/400
Spindle taper	---	7:24 ISO40
Rapid speed of table (X/Y/Z)	mm/min	1000/1000/750
Table feed (X/Y/Z)	mm/min	Variable
T-slots(NO./Width/Pitch)	mm	3/14/80
Spindle speed range	r/min	12steps 35-1500
Distance between spindle nose and table surface	mm	75-475
Distance between spindle axis and column guideway	mm	155
Max. rotary angle of table	°	-
Main motor	kw	3
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1720X1680X1730	1820X1680X1730		1720X1680X1730		1820X1680X1730
Net weight	kg	1530	1580		1580		1630

Rotary table can be ordered

Model	Table size	Max table travel - X/Y/Z	Max rotary angle of table	Distance between spindle center line and table surface
XQ6132	1270X320	720/300/400	±45°	35-435
XQ6132A	1370X320	820/300/400
XQ6132B	1270X320	900/380/400
XQ6132C	1370X320	1000/380/400
