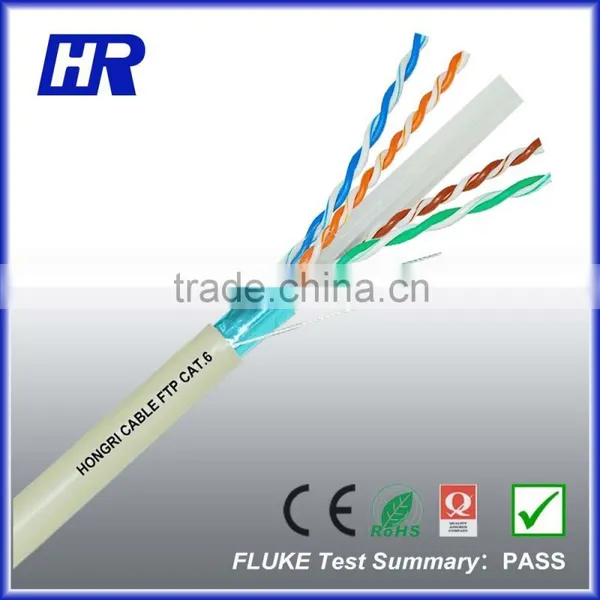

cat.6 ftp cable 100%copper

Name: cat.6 ftp cable 100%copper
Brand: Hongri/OEM
Price: USD $80.00 - 80.00 / Box

FOB Price

USD $80.00 - $80.00 / Box

100 Boxes(Min.Order)

Product Details

Brand Name:

Hongri/OEM

Model Number:

cat.6

Place of Origin:

Zhejiang, China

Item	DC5706F04	Description	FTP CAT6 4×2×0.57CU 305M/BOX
Standard	EIA/TIA568B,ISO/IEC11801,YD/T1019
Application	ISDN,10Base-T,1000Base-T4,100Base-TX
Marking	FTP CAT.6 4P 23AWG EIA/TIA568B ISO/IEC11801 ***M

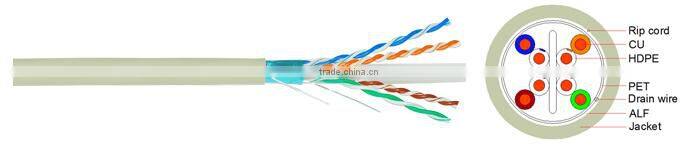

Construction
Conductor	Solid Bare Copper	Insulation Colors	White/Blue,Blue	Rip Cord	Yes
Conductor Dia.	0.57±0.01mm		White/Orange,Orange	Jacket	PVC
Insulation	HDPE		White/Green,Green	Jacket Dia.	6.6±0.3mm
Insulation Dia.	1.10±0.02mm		White/Brown,Brown	Jacket Color	Grey
Cross	Yes	Drain wire	0.40CU,TC,CCA	Jacket Thickness	0.55±0.2mm
Polyester	Yes	Shield	ALF	Packing	Box,Carton
Electrical Characteristics
Frequency(MHz)	ATT (≤dB/100m)	NEXT (≥dB)	ELFEXT (≥dB)	RL (≥dB)	PS NEXT (≥dB)
1	2.0	74.3	67.8	20.0	72.3
4	3.8	65.3	55.8	23.0	63.3
8	5.3	60.8	49.7	24.5	58.8
10	6.0	59.3	47.8	25.0	57.3
16	7.6	56.2	43.7	25.0	54.2
20	8.5	54.8	41.8	25.0	52.8
25	9.5	53.3	39.8	24.3	51.3
31.25	10.7	51.9	37.9	23.6	49.9
62.5	15.4	47.4	31.9	21.5	45.4
100	19.8	44.3	27.8	20.1	42.3
200	29.0	39.8	21.8	18.0	37.8
250	32.8	38.3	19.8	17.3	36.3
Impedance (1to100MHz)	100±15 Ohm	Conductor DC Resistance 20℃	≤72(ohms/km)	Prop. Delay	≤555ns
Capacitance 1kHz	56pF/km	Resistance Unbalance	≤3%	Delay shew	≤45ns
Capacitance unbalance	100pF/100m	Insulation Resistance	5000MΩ.KM	NVP	69%

Certification

Product Process

Packaging & Shipping

Hangzhou Hongri Cable Co., Ltd.: Contact nameHenry Song; Phone0086-571-61102828; AddressNo. 250, Linglong Street, Linglong Subdistrict, Lin'an
