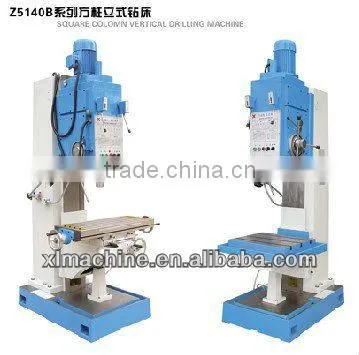

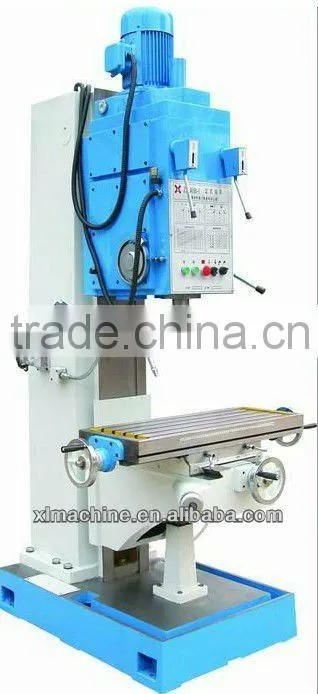

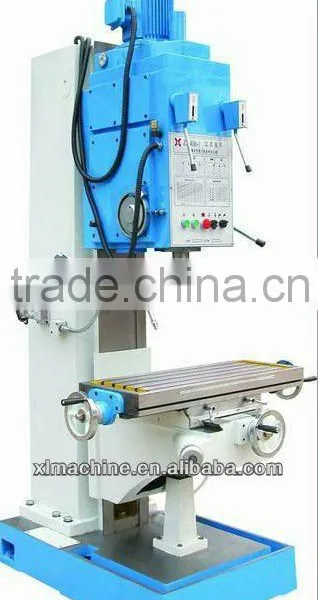

Vertical Drilling Machine Z5140B/ Z5140B-1
US$ 3,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Directional Drill MachineNegotiableMOQ: 1 Set -
Vertical Drilling Machine Z5150B/Z5150B-1US$ 3,000 - 5,000MOQ: 1 Set
-
Vertical Bench Drill Press for Metal MachiningUS$ 3,000 - 5,000MOQ: 1 Set
-
Vertical Bench Drill Press for Metal BoringUS$ 3,000 - 5,000MOQ: 1 Set
-
Vertical Drilling Machine/Column Drilling MachineUS$ 3,000 - 5,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Shandong, China
Brand Name
Yongrong Xili
Model Number
Z5140B/ Z5140B-1
Voltage
380V
Power(W)
3000W
Dimension(L*W*H)
1090*905*2465/1300*1200*2465MM
Weight
1250/1350KG
Certification
ISO9001
Specifications
1.Through the ISO9001 certificate.2.Competitive price .
3.High rigidity, capable of heavy load cutting.
Square Column Vertical Drilling Machine Z5140B
Specification |
Unit |
Z5140B |
Z5140B-1 |
Max drilling diameter |
mm |
40 |
40 |
Spindle taper |
|
MT4 |
MT4 |
Spindle travel |
mm |
250 |
250 |
Spindle box travel(manual) |
mm |
200 |
200 |
Spindle speed steps |
|
12 |
12 |
Spindle feed steps |
|
9 |
9 |
Spindle speed range |
r.p.m |
31.5~1400 |
31.5~1400 |
Table size spindle feed range |
mm/r |
0.056~1.80 |
0.056~1.80 |
Table size |
mm |
560 x 480 |
800 x 320 |
Longitudinal(cross)travel |
mm |
450/300 |
450/300 |
Vertical travel |
mm |
300 |
300 |
Max distance between spindle and table |
mm |
750 |
750 |
Main motor power |
kw |
3 |
3 |
Overall size |
mm |
1090x905x2465 |
1300x1200x2465 |
Net weight |
kg |
1250 |
1350 |
