Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Vertical Square Column Drilling Machine Z5140B/ Z5140B-1

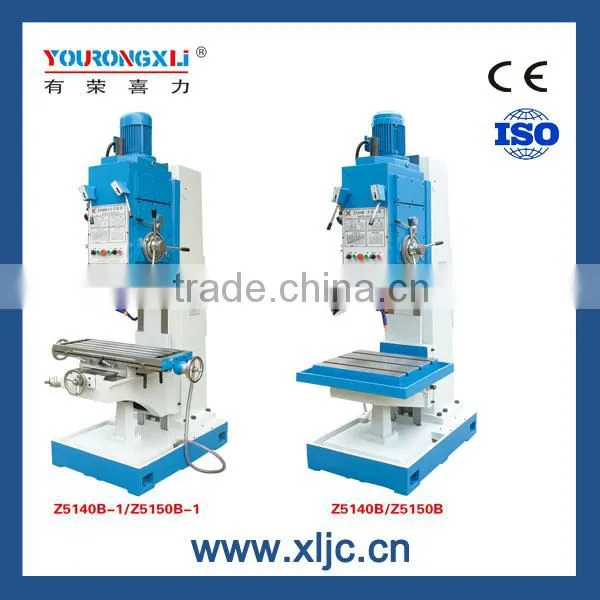

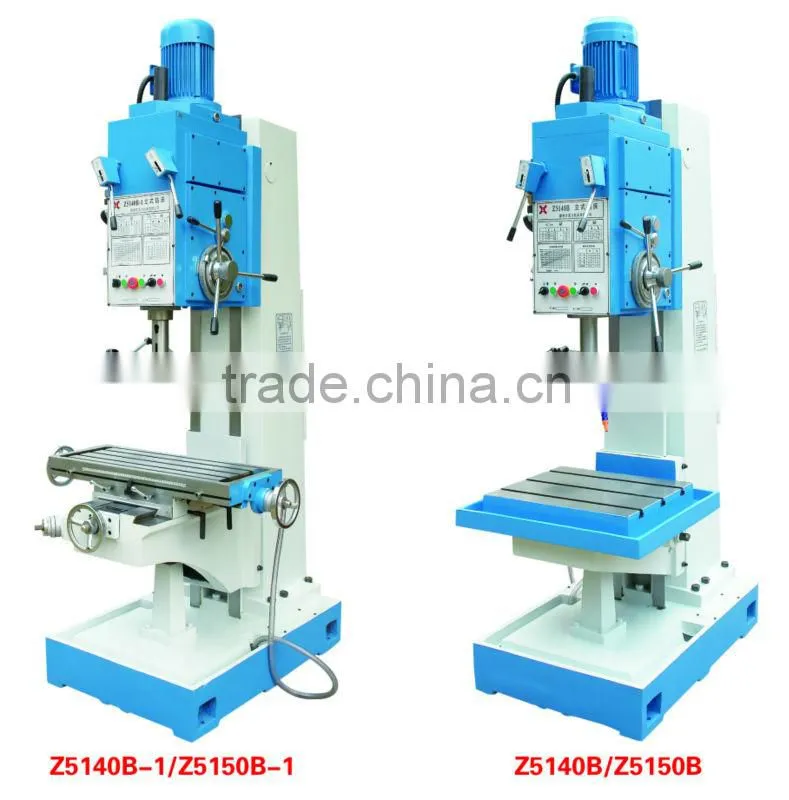

Vertical Square Column Drilling Machine Z5140B/ Z5140B-1
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
YOURONGXILI
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Square Colomnn Vertical Drilling Machine Z5140B/Z5150BUS$ 1,000 - 8,000MOQ: 1 Set -
Vertical Cutting Machine Z5150B/Z5150B-1US$ 3,000 - 5,000MOQ: 1 Set
-
Vertical Drilling Machine Z5140B/ Z5140B-1US$ 3,000 - 5,000MOQ: 1 Set
-
Vertical Directional Drill MachineNegotiableMOQ: 1 Set
-
Vertical Drilling Machine Z5150B/Z5150B-1US$ 3,000 - 5,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
YOURONGXILI
Model Number
Z5140
Type
Vertical
CNC or Not
Normal
Dimension(L*W*H)
1300 x 1200 x2465
Weight
1250KG
Warranty
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Through the ISO9001 certificate2.Competitive price
3.High rigidity, capable of heavy load cutting
Specification |
Unit |
Z5140B |
Z5140B-1 |
Z5150B |
Z5150B-1 |
Max drilling diameter |
mm |
40 |
50 |
||
Spindle taper |
|
MT4 |
MT5 |
||
Stroke of spindle quill |
mm |
250 |
|||
Spindle box travel(manual) |
mm |
200 |
|||
Spindle speed steps |
|
12 |
|||
Spindle speed range |
r.p.m |
31.5-1400 |
|||
Spindle feed steps |
|
9 |
|||
spindle feed range |
mm/r |
0.056-1.80 |
|||
Table size |
mm |
560 x 480 |
800 x 320 |
560 x 480 |
800 x 320 |
Longitudinal/cross travel |
mm |
- |
450/300 |
- |
450/300 |
Vertical travel |
mm |
300 |
|||
Max distance between spindle and table surface |
mm |
750 |
550 |
750 |
550 |
Main motor power |
kw |
3 |
|||
Overall size |
mm |
1090x905x2465 |
1300x1200x2465 |
1090x905x2465 |
1300x1200x2465 |
Net weight |
kg |
1250 |
1350 |
1250 |
1350 |
