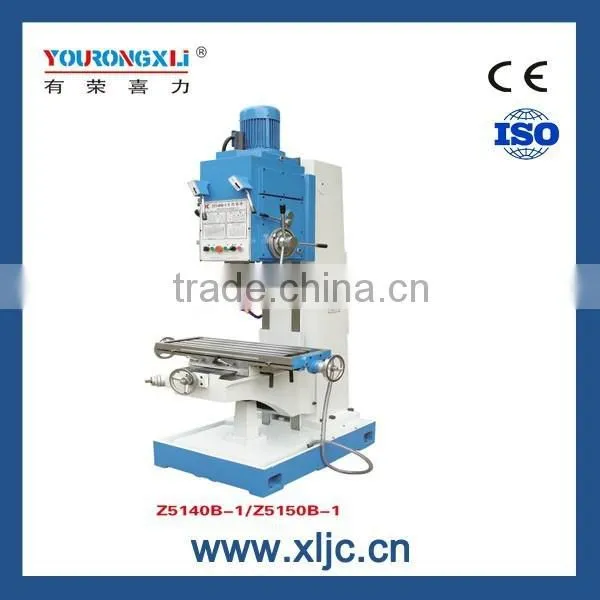

Z5150B-1 Box Column Vertical Drill Press

Name: Z5150B-1 Box Column Vertical Drill Press
Brand: YOURONGXILI
SKU: 106415617

US$ 3,000 - 4,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

31.5-1400rpm

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 31.5-1400rpm

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number Z5150B-1

Voltage 380V

Power(W) 3000W

Dimension(L*W*H) 1300x1200x2465mm

Weight 1350KG

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Z5150B-1 Box Column Vertical Drill Press

Product Description

Superior rigidity for demanding drilling, reaming and thread-cutting tasks

1. Box-column design provides high load capacity,and is torsionproof and rigid

2. Table and drill head can be moved individually for an optimum machining height

3. 9-step feed and speed gears,with oil-bath lubrication

4. High torque across the entire speed range

5. Thread-cutting unit automatically reverses upon reaching the preset depth

Specification	Unit	Z5140B	Z5140B-1	Z5150B	Z5150B-1
Max drilling diameter	mm	40		50
Spindle taper		MT4		MT5
Stroke of spindle quill	mm	250
Spindle box travel(manual)	mm	200
Spindle speed steps		12
Spindle speed range	r.p.m	31.5-1400
Spindle feed steps		9
spindle feed range	mm/r	0.056-1.80
Table size	mm	560 x 480	800 x 320	560 x 480	800 x 320
Longitudinal/cross travel	mm	-	450/300	-	450/300
Vertical travel	mm	300
Max distance between spindle and table surface	mm	750	550	750	550
Main motor power	kw	3
Overall size	mm	1090x905x2465	1300x1200x2465	1090x905x2465	1300x1200x2465
Net weight	kg	1250	1350	1250	1350
