Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor

Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor thumbnail-1
Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor thumbnail-2
Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor thumbnail-3
Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor thumbnail-4
Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor thumbnail-5
Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor thumbnail-6
Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor photo-1
Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor photo-2
Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor photo-3
Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor photo-4
Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor photo-5
Shenzhen 4.0" Tft Lcd Monitor, Cheap Touch Screen Monitor photo-6
US$ 13.6 - 15 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
tft lcd monitor
Model Number:
JT40521B0BV06
Contact Supplier Request Quote Chat Now
Shenzhen Jingtai Liquid Crystal Display Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name tft lcd monitor
Model Number JT40521B0BV06
Type LCM

Item name:  Shenzhen 4.0" tft lcd monitor, cheap touch screen monitor

Item no.:  JT40521B0BV06 Shenzhen 4.0" tft lcd monitor, cheap touch screen monitor







Product Description

  Shenzhen 4.0" tft lcd monitor, cheap touch screen monitor

Parameter

Specifications

Unit

Display Size (Diagonal)

3.97

inch

LCD Type

TN TFT

-

Display Mode

Normally White

-

Resolution

480 RGB (H) x 800 (V)

Pixel

Viewing Direction

12 O'CLOCK

Best Image

Outline dimensions

57.14(H) ×96.85(V)×2.2(D)

Mm

Active Area

51.84(H) ×86.40(V)

Mm

Pixel Pitch

0.108 (H) ×0.108 (V)

Mm

Pixel Arrangement

RGB tilt stripe

-

Display Colors

16.7M

-

Interface

MIPI

-

Driver IC

ILI9806E-2

-

With or Without Touch Panel

Without

-

Operation Temperature

-20~+60

℃

Storage Temperature

-30~+80

℃

Weight

TBD

grams





Detailed Images

Shenzhen 4.0" tft lcd monitor, cheap touch screen monitor
Shenzhen 4.0" tft lcd monitor, cheap touch screen monitorShenzhen 4.0" tft lcd monitor, cheap touch screen monitor



Related Products

  Shenzhen 4.0" tft lcd monitor, cheap touch screen monitor

 Shenzhen 4.0" tft lcd monitor, cheap touch screen monitor



Packaging & Shipping

 Shenzhen 4.0" tft lcd monitor, cheap touch screen monitor

Main products



Dimension Model No Outlinethickness brightness
3.5"HVGAJTD035231S755.04*83.152.36±0.10300cd/m2(TYP)
JTD035307B154.5*832.25(max)250cd/m2(TYP
JTD035279B055.04*83.152.36±0.10300cd/m2(TYP)
4"WVGA IPSJTD040399B057.14*96.851.8(max)300cd/m2(TYP)
JTD040419B157.14*96.852.05±0.05320cd/m2(TYP)
WVGA TNJTD040468B057.14*96.852.1±0.1300cd/m2(TYP)
JTD040434I5/B657.14*96.852.15±0.10320cd/m2(TYP)
JTD040419B057.14*96.852.20±0.05280cd/m2(TYP)
4.5"qHD  IPSJTD045100C058.64*107.41.65±0.1400cd/m2(TYP)
JTD045105C060*1091.74±0.05440cd/m2(TYP)
FWVGA IPSJTD045050B260*1091.9MAX360cd/m2(TYP)
FWVGA TNJTD045104S060*1091.90±0.05330cd/m2(TYP)
JTD045073S260.12*1102.1MAX320cd/m2(TYP)
JTD045068S060.12*109.222.05MAX320cd/m2(TYP)
5"HD IPSJTD050245C064.64*118.81.6±0.1500cd/m2(TYP)
JTD050222C365.3*119.31.65±0.1490cd/m2(TYP)
JTD050247I065.7*119.91.7±0.05380cd/m2(TYP)
FWVGA IPSJTD050247I265.7*119.91.7±0.05450cd/m2(TYP)
JTD050247I665.7*119.91.7±0.05380cd/m2(TYP)
JTD050229B266.26*120.61.7MAX320cd/m2(TYP)
JTD050214B066.26*120.61.7MAX320cd/m2(MIN)
FWVGA TNJTD050222S065.3*119.32.07±0.1500cd/m2(TYP)
JTD050273I066.56*121.012.10+/-0.1280cd/m2(TYP)
JTD050257I066.8*120.552.1MAX 400cd/m2(TYP)
JTD050215S0/I266.10*120.401.91±0.08320cd/m2(TYP)
5.5"HDJTD055035I070.94*129.561.58±0.05420cd/m2(TYP)
JTD055034C0/I171.24*130.191.66450cd/m2(TYP)
JTD055031C0/I071.08*130.311.65±0.05450cd/m2(TYP)
JTZ055033I0A70.94*129.561.63450cd/m2(TYP)



Company Information



Shenzhen Jingtai LCD Technology Co., Ltd is one of the leading companies doing LCD modules business in Shenzhen China since 2008. Our team have more than 7 years experience in LCM. Our main products are from 3.5 inch to 5.5 inch vertical mobile phone LCM and 2.4 inch to 10 inch landscape, which can be used on POS machine, digital camera, security devices and industrial equipment.

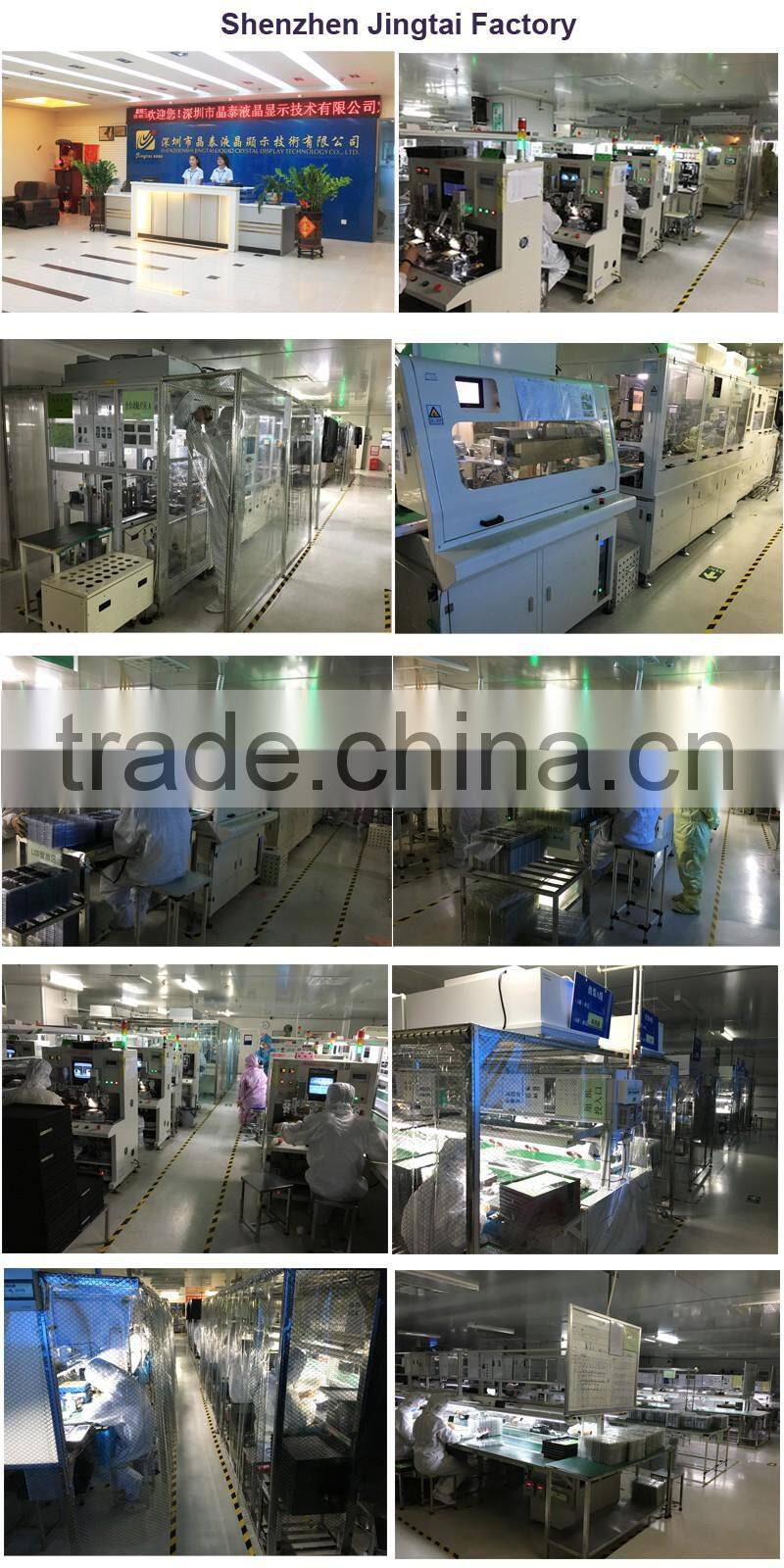

We have a large number of excellent production equipment( such as COG, Glass Cutting Machine, Lanimator, Mounter, Bubble Machine etc), with 5 fully automatic lines, 2 high-speed lines and 5 semi-automatic lines. At present, our company concentrate on the production of Remote control, Blacklight,LCD Modules. Our products are widely used in mobile phone and handheld electronic products. Combining the latest technology, extensive experience and professional management, we have achieved rapid growth and have an annual turnover of 135 million dollars. We also have strong R&D capability, mass production ability and considerable assembly line to provide customized OEM/ODM services for yoru project.

In addition, we have ISO9001-2008 certified, and take every precaution, from raw material check to stringent testing of final goods, to ensure that we offer you reliable products. We had built a good cooperation with CHANGHONG, GUOXINTONG, CHANGJIANG, NICAI, ZHONGXING and CHUANGWEI company, which are famous enterprise in China. We are always looking to expand our customer base and won a good reputation in this field. We guarantee high quality, competitive prices, fast delivery and good customer first and after serveive. It is our goal, not only to meet your requirements, but to exceed your expections.

We sincerely invite you to visit our factory, and looking forward to establish a mutual benefit, long term business relationship with your esteemed company.







Company Strength:





1> ISO9001 certificated, Factory Direct Supplied



2> RoHS Compliant, Lead Free, Reach Compliant



3> Competitive Price and Short Lead-time



4> Professional Team with Rich Experiences in Design/Mfg/Quality Control



5> Small MOQ Support & Fast Response to Customers



6>Long Product Life Time



7>Free samples



Certifications



FAQ



Q:How can I get some samples?

A:First confirm data according to the drawings , and then send you a confirmation test by courier.



Q.What is the MOQ?

A:It depends on different products. Normally 5k/years .



Q:How long is the warranty?

A:12 Months.



Q:What is the package or your products?

A:Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton



Q:Can you accept OEM and ODM?

A: Yes,we accept OEM and ODM service according to client’s requirements.
