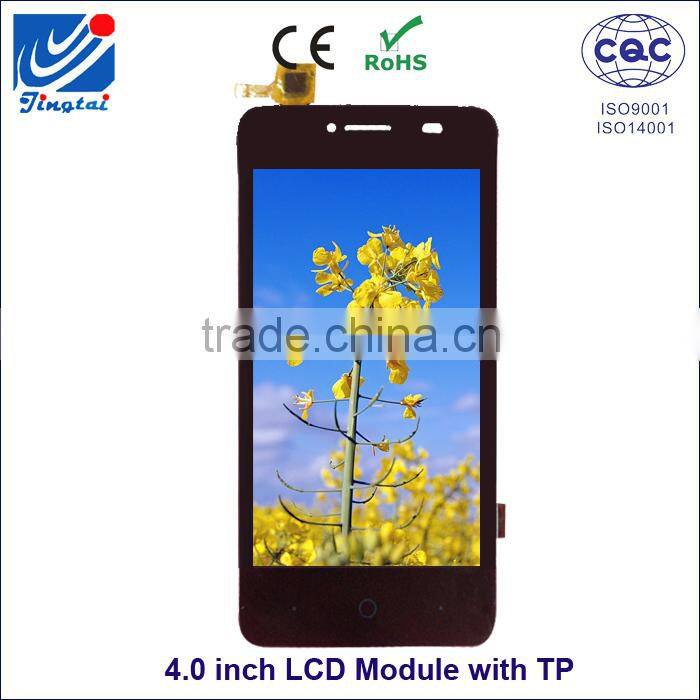

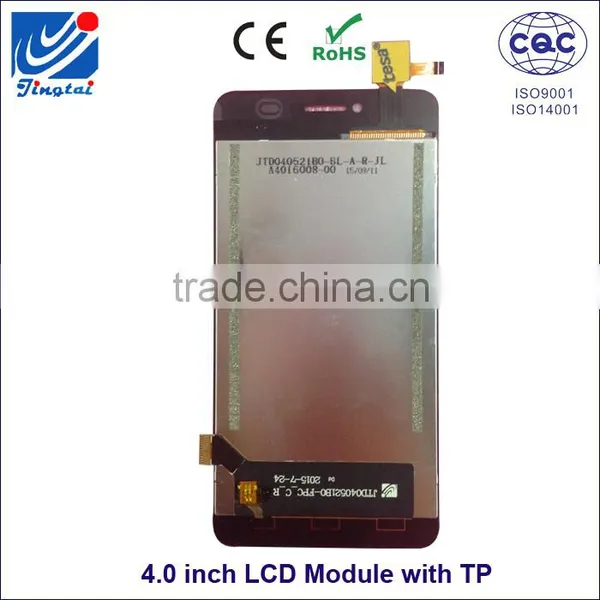

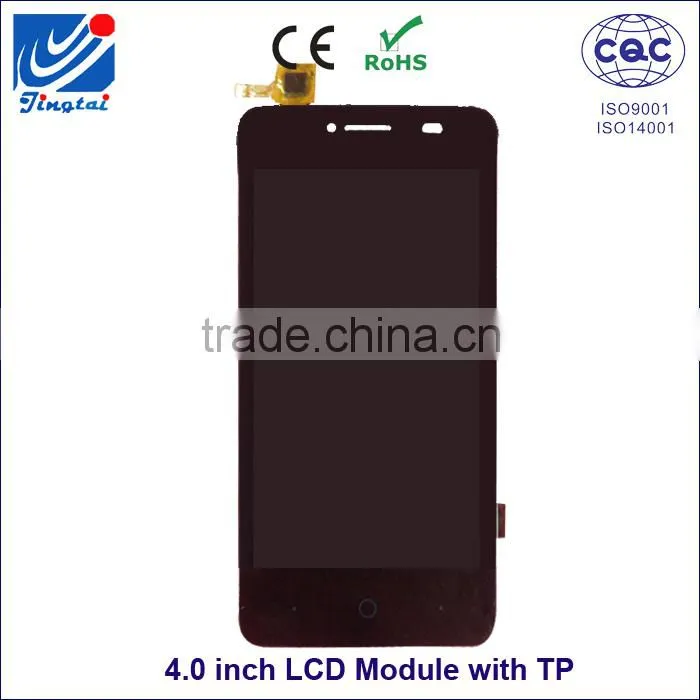

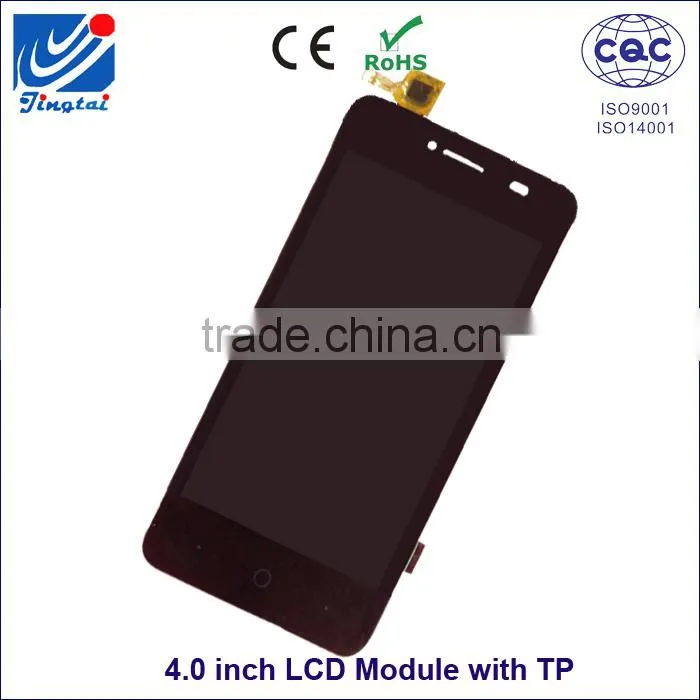

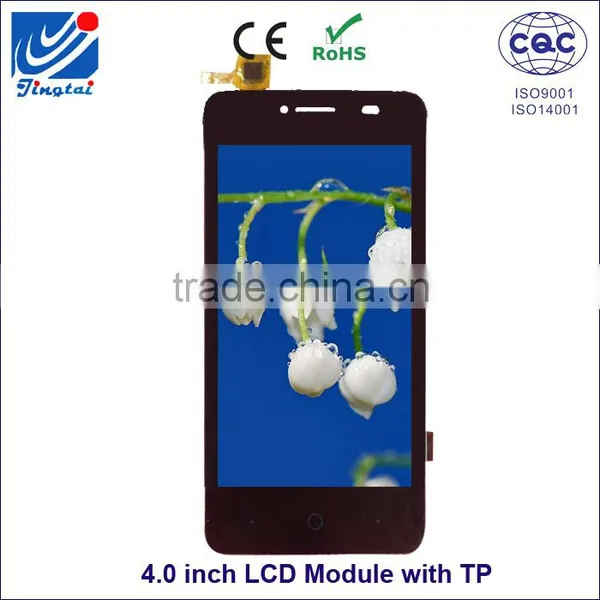

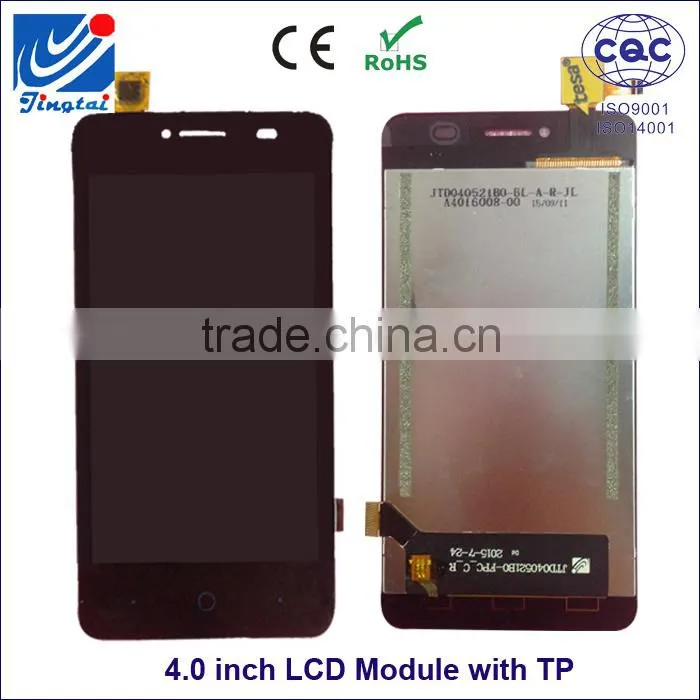

Item name: Factory price original 4.0 inch color dsi lcd display mobile phone touch screen
Item no.: JT40521B0BV06
Parameter | Specifications | Unit |
Display Size (Diagonal) | 3.97 | inch |
LCD Type | TN TFT | - |
Display Mode | Normally White | - |
Resolution | 480 RGB (H) x 800 (V) | Pixel |
Viewing Direction | 12 O'CLOCK | Best Image |
Outline dimensions | 57.14(H) ×96.85(V)×2.2(D) | Mm |
Active Area | 51.84(H) ×86.40(V) | Mm |
Pixel Pitch | 0.108 (H) ×0.108 (V) | Mm |
Pixel Arrangement | RGB tilt stripe | - |
Display Colors | 16.7M | - |
Interface | MIPI | - |
Driver IC | ILI9806E-2 | - |
With or Without Touch Panel | Without | - |
Operation Temperature | -20~+60 | ℃ |
Storage Temperature | -30~+80 | ℃ |
Weight | TBD | grams |
Product Name | Factory price original 4.0 inch color dsi lcd display mobile phone touch screen |
Product Size | 2.4--10inch ( accept customized ) |
ASSY.TYPE | LCD Module+CTP/Rtp |
Resolution | 320*480; 480*800;480*854; 1366*768; etc |
Display Mode | Normally white/ Transmissive |
Viewing Direction | 6 o’clock / 12 O’clock / IPS |
CTP Structure | G+G; G+F; G+F+F ( Optional ) |
CTP Driver IC | Mstar, FocalTech, Goodix, Silead,Cypress, Etc. |
Surface Hardness | 6H |
CTP Interface | I2C |
Support Points | 2-10 points |
Operating Temperature | -20 to 70 C° |
Storage Temperature | -30 to 80 C° |
Transparency | >86% |
Power Supply | 2.8-3.3V |
Operating System | Linux,android,win CE |
Shenzhen Jingtai LCD Technology Co., Ltd is one of the leading companies doing LCD modules business in Shenzhen China since 2008. Our team have more than 7 years experience in LCM. Our main products are from 3.5 inch to 5.5 inch vertical mobile phone LCM and 2.4 inch to 10 inch landscape, which can be used on POS machine, digital camera, security devices and industrial equipment.
We have a large number of excellent production equipment( such as COG, Glass Cutting Machine, Lanimator, Mounter, Bubble Machine etc), with 5 fully automatic lines, 2 high-speed lines and 5 semi-automatic lines. At present, our company concentrate on the production of Remote control, Blacklight,LCD Modules. Our products are widely used in mobile phone and handheld electronic products. Combining the latest technology, extensive experience and professional management, we have achieved rapid growth and have an annual turnover of 135 million dollars. We also have strong R&D capability, mass production ability and considerable assembly line to provide customized OEM/ODM services for yoru project.
In addition, we have ISO9001-2008 certified, and take every precaution, from raw material check to stringent testing of final goods, to ensure that we offer you reliable products. We had built a good cooperation with CHANGHONG, GUOXINTONG, CHANGJIANG, NICAI, ZHONGXING and CHUANGWEI company, which are famous enterprise in China. We are always looking to expand our customer base and won a good reputation in this field. We guarantee high quality, competitive prices, fast delivery and good customer first and after serveive. It is our goal, not only to meet your requirements, but to exceed your expections.
We sincerely invite you to visit our factory, and looking forward to establish a mutual benefit, long term business relationship with your esteemed company.
Q:How can I get some samples?
A:First confirm data according to the drawings , and then send you a confirmation test by courier.
Q.What is the MOQ?
A:It depends on different products. Normally 5k/years .
Q:How long is the warranty?
A:12 Months.
Q:What is the package or your products?
A:Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
Q:Can you accept OEM and ODM?
A: Yes,we accept OEM and ODM service according to client’s requirements.
