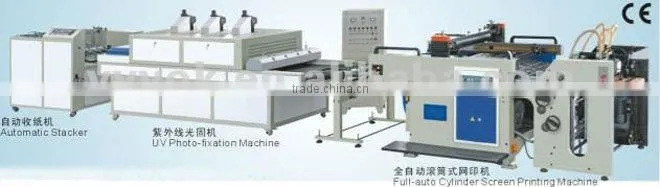

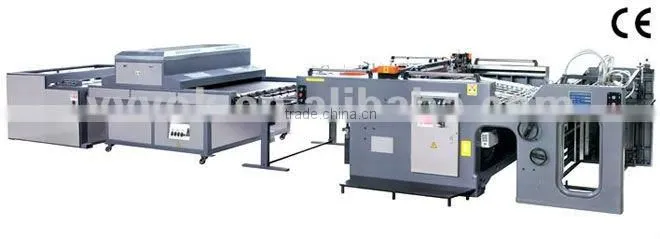

Automatic Cylinder Screen Printing Machine Line

Automatic Cylinder Screen Printing Machine Line photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Screen Printer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Screen Printer
Place of Origin Guangdong, China
Brand Name Disen
Model Number screen-17
Usage Other, t shirt,cloth,paper and so on
Automatic Grade Automatic
Gross Power 7.2kw
Dimensions(L*W*H) 3020*1400*1250mm

Automatic cylinder screen printing machine line

Automatic cylinder screen printing machine line

Model

SFB-720

SFB-780

SFB-1020

Max Print Size

720×500mm

780×520mm

1020×650mm

Min Paper Size

350×270mm

350×270mm

480×270mm

Max Paper Size

720×520mm

780×540mm

1020×700mm

Border

≤15mm

≤15mm

≤15mm

Paper Thickness

100-350g/m2

100-350g/m2

100-350g/m2

Pallet Size

880×880mm

940×940mm

1280×1140mm

Max Print Speed

600-3600s/h

1000-3600s/h

1000-3600s/h

Voltage Power

7.20kw

8.20kw

8.20kw

Dimension

3020×1400×1250mm

3020×1470×1280mm

3150×1680×1300mm



Automatic cylinder screen printing machine line

Automatic cylinder screen printing machine line

Automatic cylinder screen printing machine line

Automatic cylinder screen printing machine line

Automatic cylinder screen printing machine line



Automatic cylinder screen printing machine line

Brief  Introduction:

cylinder screen printing machine

Full-Auto Cylinder Screen Printing Machine Combination is a kind of auto flat screen press of high speed and high precision. It,s skilled manufacture, reason able structure, stable and high speed print paper feeding is equipped. It is suitable for soft and half-soft materials of Frequency control of motor speed is monitored and controlled automatically, PLC program table controller controls the whole machine. Centralized control is adopted in this machine with easy operation and high sensitivity. It reaches an advanced level in the country.  This machine can be used in kinds of print, especially colors of golden and credit card, and so on. The full oil, fresh color and stereoscopic model make the press better than others. Otherwise, customers can equip the machine with dryer, UV photofixation machine, paper collection machine into an auto screen press line.

cylinder screen printing machine

1. Automatic control,automatic delivery, automatic paper jogging, simple and convenient adjustment.
2. Performed by pneumatic elements. paper breaking and other damaging are effectively avoided.
3. Up and down limit safety equipment for paper stacker is installed to avoid damaging the machine because of break down limit equpment.

cylinder screen printing machine
cylinder silk screen printing machine
used cylinder screen printing machine



Automatic cylinder screen printing machine line

Automatic cylinder screen printing machine line

Automatic cylinder screen printing machine line
