Automatic Screen Printing Table

Automatic Screen Printing Table thumbnail-1
Automatic Screen Printing Table photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Screen Printer
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Guangzhou Disen Wenheng Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Screen Printer
Place of Origin Guangdong, China
Brand Name Disen
Model Number screen-19
Usage Other, t shirt,cloth,paper and so on
Automatic Grade Automatic
Gross Power 2.2kw
Dimensions(L*W*H) 1570x1080x1450mm

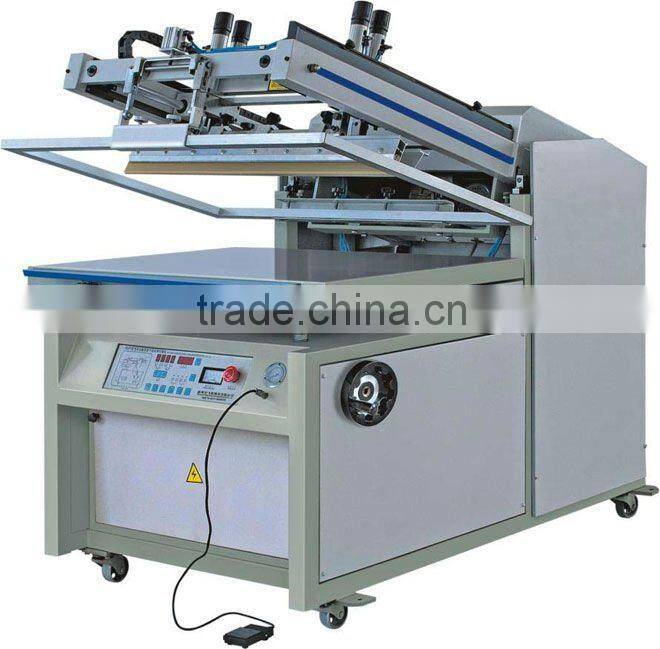

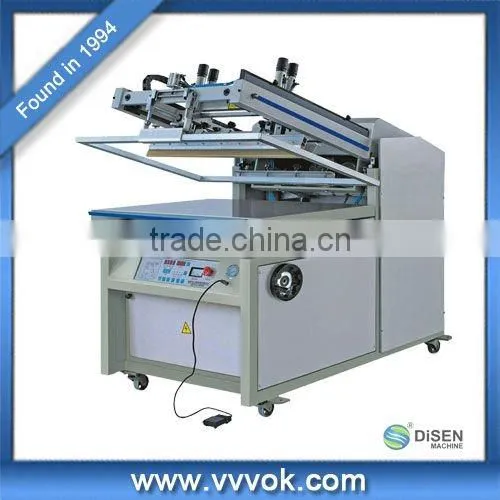

Automatic screen printing table

Automatic screen printing table

SFB series apply to wide range of packaging industry, such as box decorating fields for

makeup, wine, gift, calendar adhesives, and even credit cards etc. It features AC motor-

driven printing and lift-up/lift-down for the print arm, speed adjusted b high precision

frequency converter. Most importantly, the combination of squeegee and flood bar speed and

substrate thickness adjustment can be incorporated into one machine.

 FEATURES
1, Microcomputer fault with that plan, facilitates future maintenance machines.
2, Four-cylinder printing, printing effect to the average pressure, a clear line network.
3, A two-state adaptive systems, adjustment is simple, accurate positioning.
4, A printing, printing ink and to be independent governor can adapt to a variety of

printing plane.
5, Crank-driven printing itinerary.

TECHNICAL PARAMTERS

MODEL

 SFB-8060

 SFB-9060

 SFB-12060

 SFB-12080

 MAX.PRINTIGN SIZE

 800x600mm

 900x600mm

 1200x600mm

 1200x800mm

 WORKTABLE SIZE

 900x800mm

 1000x800mm

 1300x800mm

 1300x1000mm

 MAX.FRAME SIZE

 1000x850mm

 1100x850mm

 1400x850mm

 1400x1100mm

 AIR PRESSURE

 0.4-0.6mpa

  0.4-0.6mpa

  0.4-0.6mpa

  0.4-0.6mpa

 MAX.PRINTING SPEED

 1200t/h

 1200t/h

 1100t/h

 1000t/h

 POWER

 2.2kw

 2.2kw

 3.2kw

 3.2kw

 WEIGHT

 550kg

 580kg

 620kg

 800kg

 MACHINE SIZE

 1570x1080x1450mm

 1570x1080x1450mm

 1570x1380x1450mm

1850x1380x1450mm





Automatic screen printing table



Automatic screen printing table

Automatic screen printing table

Automatic screen printing table



Automatic screen printing table

Automatic screen printing table

Automatic screen printing table
