Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > Used Automatic Screen Printing Machines

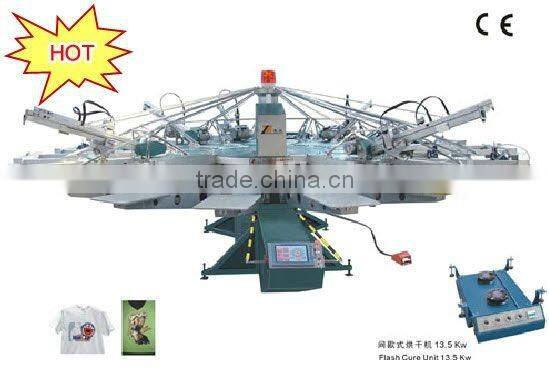

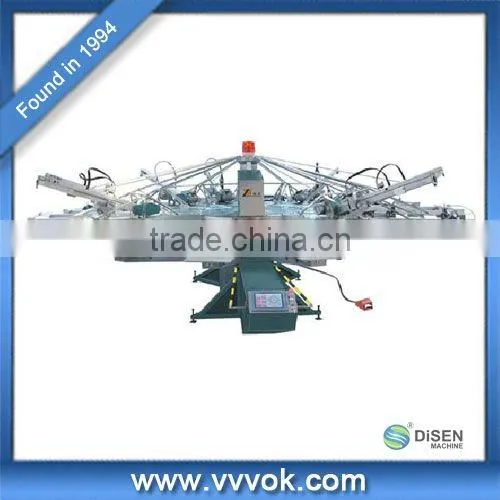

Used Automatic Screen Printing Machines

Name: Used Automatic Screen Printing Machines
Brand: Disen
SKU: 106406785
Availability: InStock

Used Automatic Screen Printing Machines thumbnail-1

Used Automatic Screen Printing Machines photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Plate Type:

Screen Printer

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Guangzhou Disen Wenheng Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Plate Type Screen Printer

Place of Origin Guangdong, China

Brand Name Disen

Model Number screen-4

Usage Other, t shirt,cloth,paper and so on

Automatic Grade Automatic

Gross Power 2.9kw

Dimensions(L*W*H) 4800*1650/mm

Weight 2300Kg

Model	YH-104/8	YH-156/10	YH-158/12	YH-1510/14	YH-2012/18
Print Color/Station	4-6/8	4-8/10	6-10/12	6-12/14	6-14/18
Maz. Image Area	500×700/mm	500×700/mm	500×700/mm	500×700/mm	500×700/mm
Pallet Size	600×800/mm	600×800/mm	600×800/mm	600×800/mm	600×800/mm
Frame Size	700×1000/mm	700×1000/mm	700×1000/mm	700×1000/mm	700×1000/mm
Maz.Air Consumption	8P24.71L/100mm (piston move)	8P24.71L/100mm (piston move)	8P30.44L/100mm (piston move)	8P30.44L/100mm (piston move)	8P31.51L/100mm (piston move)
Max.Output	900pcs/h	900pcs/h	900pcs/h	900pcs/h	900pcs/h
Power	2.9Kw	4.4Kw	4.4Kw	4.4Kw	5.5Kw
Each Dryer Power	13.5Kw	13.5Kw	13.5Kw	13.5Kw	13.5Kw
Size	4800×1650/mm	5500×1850/mm	5500×1850/mm	6000×1850/mm	6400×2500/mm
Weight	2300Kg	3000Kg	3300Kg	3600Kg	4300Kg

STANDARD FEATURES

TOUCH SCREEN CONTROL CENTER
1, Full colored display gives a vividly visual guide
2, an independent print start & print end setting that automatically stop working when reaching to the preset production data
3, In-line self-diagnostic and alarming system
4, Multiple (1-50) print stroke capability in each print head
5, Real-time production data
6, Zero position control
7, Test print setting turns individual printheads off/on during test print cycle
8, Loading time and flash curing dwell time control
9, Three curing zones in each in-line cure unit can be setted independently
10, Built-in UBS port for future software upgrades
12, Job memory features technical parameters restoration, making repeat production a breeze

TURNTBLE/INDEXER
1, Clockwise or counterclockwise rotation
2, Double-station indexing capability increases production output
3, Servo drive combines higher print speeds with superior smoothness, consistency, and longevity
4, Central off-contact adjustment can be adjusted precisely during production, minimizing press stoppage.
5, Precise four-point pallet leveling system
6, Pnumatic and tool-free pallet locator speeds up pallet changover

SAFETY SYSTEM
1, Safety cords between print heads and four safety bars installed on load/unload stations ambience eliminate any trip-in accident
2, Skip-shirt smash button, located on both sides of the touch screen, allows operator to avoid printing on the empty pallets as they travel
3, Hundredth of a second indexer stop trigger time offers a strong safety guarantee

PRINT FRAME
1, Pneumatic clamps hold frames tight and allow for rapid frame loading
2, Visual reference marks every 1 degree (0-40 degree range) simplify squeegee/floodbar angle adjustment
3, Easy changeover for squeegee/floodbar
4, Availability for flock print
5, Calibrated front & rear stroke length with tool-free adjustment maximizes print flexibility.
6, Print and flood speed control, pneumatic screen frame clamping, left-and-right indexing, lifting and lowing action, print and flood holders displacement are incorporated into one membrane control panel in each print head, minimizing the setup time
