Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > 8 Color Manual Screen Printing Machine for Clothes

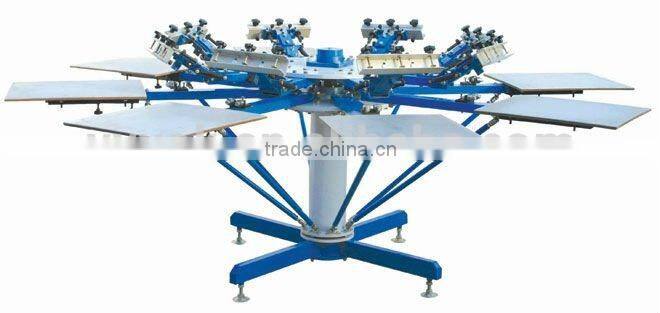

8 Color Manual Screen Printing Machine for Clothes

Name: 8 Color Manual Screen Printing Machine for Clothes
Brand: Disen
SKU: 106406807
Availability: InStock

8 Color Manual Screen Printing Machine for Clothes thumbnail-1

8 Color Manual Screen Printing Machine for Clothes photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Plate Type:

Screen Printer

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Guangzhou Disen Wenheng Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Plate Type Screen Printer

Place of Origin Guangdong, China

Brand Name Disen

Model Number screen-2

Usage Other, t shirt,cloth,paper and so on

Automatic Grade Other, manual

Gross Power 0W

Dimensions(L*W*H) 2500*2800*1350/mm

Weight 360Kg

Model	SPM450	SPM650	SPM850
Print Color	4	6	8
Max. Image Area	400×350/mm	400×350/mm	400×350/mm
Pallet Size	500×400/mm	500×400/mm	500×400/mm
Each Movable Dryer Power	6Kw	6Kw	6Kw
Size	2500×2500×1300/mm	2500×2500×1300/mm	2800×2800×1350/mm
Weight	190Kg	280Kg	360Kg

DISCRIPTION
With its revolutionary duo-deck design and cabinet like structure, SPM is sure to be the most outstanding press over the manual production systems. U-slot guide locator allows for easy and fast registration during the print work. Two-springs hinged screen holder system facilitates the action of screen lift-up. Left-and-right pallet movement design provides more capability of adjustment. SPM features rigid flatness resine-made pallets, machine-tooled and polished 50mm center shaft, rugged tapered roller bearing, extra-large knobs and four-point off-contact adjustment to help users accomplish a high precision print result. Try today with this economical but wonderful manual press and see the miracle to occur.

screen printing machine for clothes
flash dryer screen printing
saree screen printing

STANDARD FEATURES
REGISTRATION AND OFF-CONTACT SYSTEM
1, U-slot guide locator system
2, Precise four-point pallet height adjustable system, offering wide range of off-contact adjustment
3, Print head lock-in design maintains exact color-to-color repeatability but ensuring +/-0.10mm registration

SCREEN CLAMPS & HOLDERS
1, Built with a low profile and release height adjustable arms, reducing operators fatigue and downtime
2, Three large-size knobs secure screen frame tightly
3, Appliable in various frame sizes up to 500mm wide
4, Two-spring hinge system increases the print speed

PALLET SYSTEM
1, Special resin made pallets provide a durable, effective print surface
2, Accommodate all types of pallets adhesives
3, Easy-to-install feature combined with left-and-right adjustment
4, Available in any special requirements

screen printing machine for clothes
flash dryer screen printing
saree screen printing

HEAVY DUTY CONSTRUCTION
1, Tapered roller bearings designed for easy spinning
2, Duo-deck system speeds up print production
3, Unique cabinet base support provides absolute stability and a spare space for multi-use
4, Heavy duty frame construction for durability and minimum flex

MODELS AND BUSINESS OPPORTUNITY
1, Print production made up to 500 pcs/hour
2, Unlimited growth opportunity
3, Requires no special skill or education-easily operated by anyone

WARRANTY AND SERVICE
1, One-year limited warranty
2, If any problems occur, please contact our company for more details
