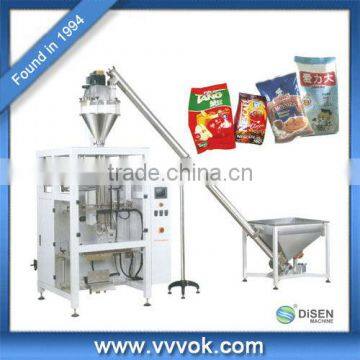

Vertical Type Heavy-duty Powder Packaging Machine

Vertical Type Heavy-duty Powder Packaging Machine thumbnail-1
Vertical Type Heavy-duty Powder Packaging Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Function:
Labeling
Application:
Food
Contact Supplier Request Quote Chat Now
Guangzhou Disen Wenheng Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Function Labeling
Application Food
Packaging Type Bags
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220V
Power 5kw, 5kw
Place of Origin Guangdong, China
Brand Name Disen
Model Number DS-015-11
Dimension(L*W*H) 1780*1350*1950mm

Vertical type heavy-duty powder packaging machine

   Product Description  Vertical type heavy-duty powder packaging machine

Name Large Scale Vertical Powder Packaging Machine/TD>
Technical characteristics

1.Color touch screen and more stable & reliable PLC control which is high precison output by biaxa. It can accomplish at one step from bag-making, measuring, filling, sealing, cutting and coding.
2.High precision orientation and size more accurate based on double servo control
3.Adopted external film loading mechanism and simpler & easier loading film
4.It can adjust the bag deviation onl the touch screen which is easy operation

5.Effective prevent dust from defending the machine part based on closed institution
Application It is suitable for powder packing such as flour, milk powder, coffee powder, feed and food powder etc.
Technical parameters:
Bag length 100-480mm(L)
Bag width 200-500mm(W)
Measuring range) 100-1000g(Max)
Capacity 10-30bag/min
Air pressure 0.65Mpa
Air consumption 0.4m3/min
Power 220VAC/50HZ, 5KW
Machine size (L*W*H)1780mm*1350mm*1950mm
Machine weight 900kg







   Product Images Vertical type heavy-duty powder packaging machine



 Vertical type heavy-duty powder packaging machine

Vertical type heavy-duty powder packaging machine

Vertical type heavy-duty powder packaging machine

Vertical type heavy-duty powder packaging machine

Vertical type heavy-duty powder packaging machine

Vertical type heavy-duty powder packaging machine



Other packing machine

Vertical type heavy-duty powder packaging machine

Vertical type heavy-duty powder packaging machine





   Product Related Information Vertical type heavy-duty powder packaging machine



USAGE OF PRODUCT:



It is suitable for powder packing such as flour, milk powder, coffee powder, feed and food powder etc.



Function and features:



1.Color touch screen and more stable & reliable PLC control which is high precison output by biaxa. It can accomplish at one step from bag-making, measuring, filling, sealing, cutting and coding.
2.High precision orientation and size more accurate based on double servo control
3.Adopted external film loading mechanism and simpler & easier loading film
4.It can adjust the bag deviation onl the touch screen which is easy operation

5.Effective prevent dust from defending the machine part based on closed institution





   DiSen Company Show Vertical type heavy-duty powder packaging machine

Vertical type heavy-duty powder packaging machine

Vertical type heavy-duty powder packaging machine
