Packing Machine

Packing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Function:
Labeling
Application:
Food, Other, Food, pack milk,soybean milk,sauce,vinegar,yellow wine..
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Function Labeling
Application Food, Other, Food, pack milk,soybean milk,sauce,vinegar,yellow wine..
Packaging Type Bags
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Power 1.6kw
Place of Origin Guangdong, China
Brand Name Disen
Model Number DS-1000-20
Dimension(L*W*H) 880*760*1800mm
Voltage 220V-380V/50HZ-60HZ 1.6KW

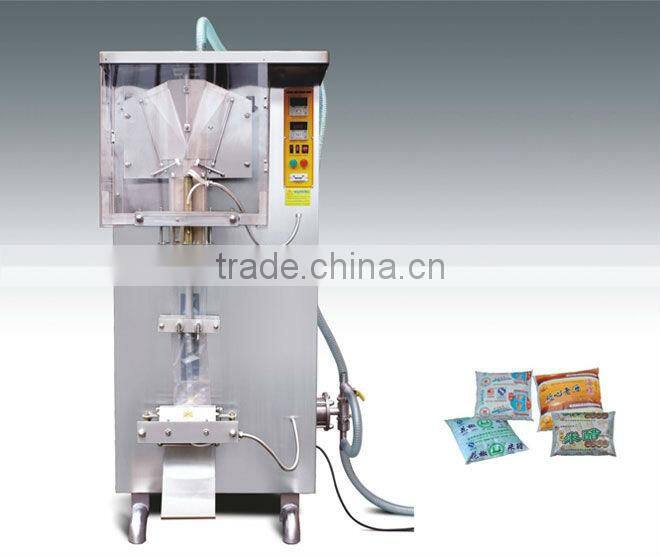

Packing machine

   Product Description

Main Parameters:

This machine widely used to pack milk,soybean milk,sauce,vinegar,yellow wine,all kind of drink with film. The whole process can be accomplished automatically, such as ultraviolet sterilization,bag figuration,date printing,quantitative filling,enveloping,cutting,counting, and so on. The temperature of heat-sealing is controlled automatically,
the production is beauty and fastness, the machine adopts stainless steel shell, and the sanitation is guaranteed.

it can with glasses cover, ribbon coder and UV sterilizer

 Specifications:
Model
DS-1000
Production Capacity
50~500ml
Filling Range
2000-2200pcs/h
Voltage
220V-380V/50HZ-60HZ  1.6KW
Overall Dimension
880×760×1800mm
Weight
370kg

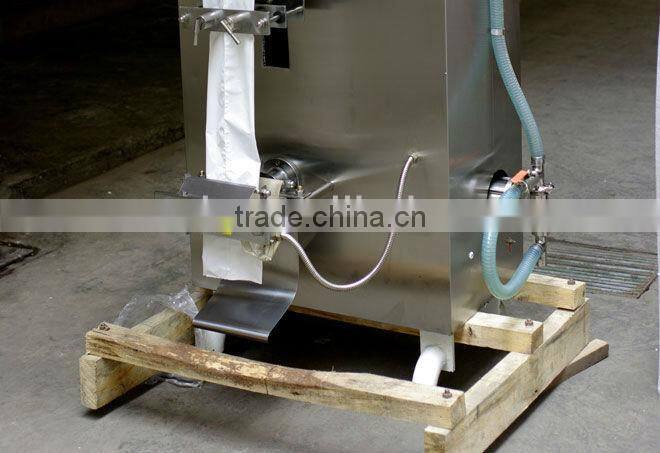

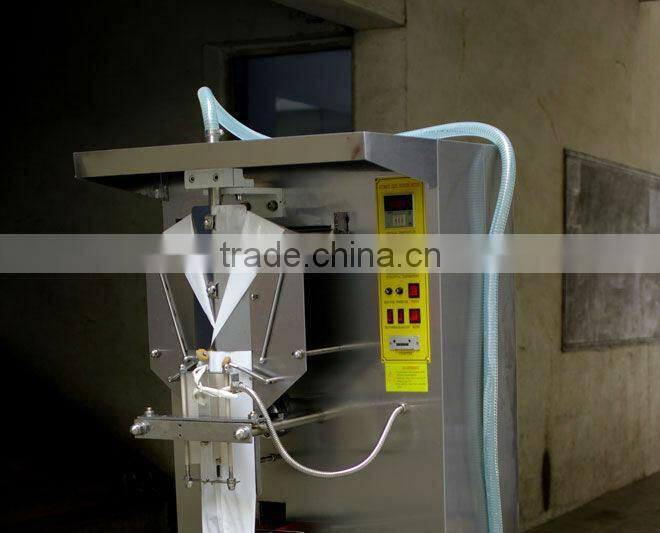

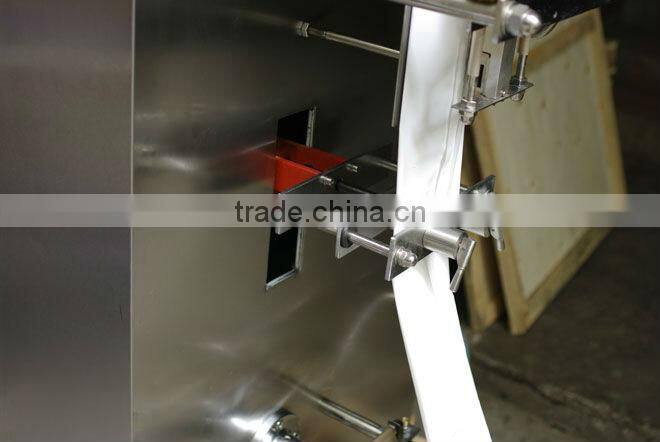

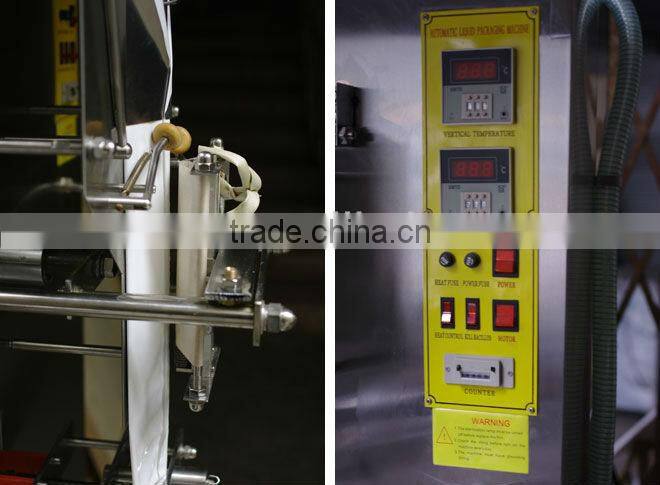

   Product Images Packing machine



Packing machine





Packing machine

Packing machine

Packing machine

Packing machine

Packing machine

Packing machine

Packing machine

Packing machine

Packing machine

Packing machine

Packing machine

  Packing machine

other packing machine

Packing machine



Packing machine



   Product Related Information Packing machine



USAGE OF PRODUCT:



This aircraft widely uses in the milk, the fermented bean curd, each kind of drink, the soy sauce, the vinegar, the liquor and so on each kind of liquid single polyethylene film wrapper, can carry on the ultraviolet ray to be antiseptic automatically, the feed bag formation, the date printing, the quota fill install, seal gather shut off disposable complete. The complete machine uses the stainless steel structure, achieves the international sanitation standard. This machine performance steady reliable, the operation is simple, the failure rate is low. Obtained the domestic and foreign customer consistent high praise.



Function characteristics:
1 computer control, simple operation, convenient maintenance, stable performance, reliable quality, etc.
2 denso speed with stepless adjustable.
3 Adopting special bag length control technology , long bag stepless adjustable.The bag making length is accurate, easy to adjust.
4 unique technology solving the problem of drawbench and ensure the sealing of the drawing; improving the quality of the tight packaging.
5 intelligent temperature control meter which can control the temperature of heat sealing machine with constant temperature , ensure sealing effect.



Model DS-1000 DS-ZF1000 DS-ZF2000
Production Capacity 1500-2100(bag)/hour 1300-1800(bag)/hour 800-1100(bag)/hour
Filling Range 50-500ML/200-1000ML 500-2000ML
power 1500W 1500W 2100W
Voltage 220V-380V/50Hz-60Hz
Overall Dimension (mm) 850*800*1800 1000*800*2000 1200*1100*2100
Weight(kg) 370 400 460
