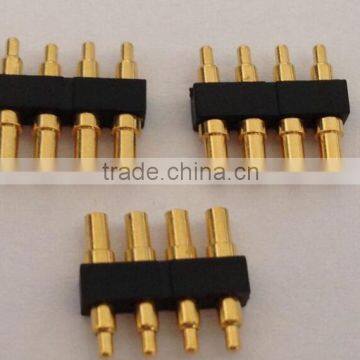

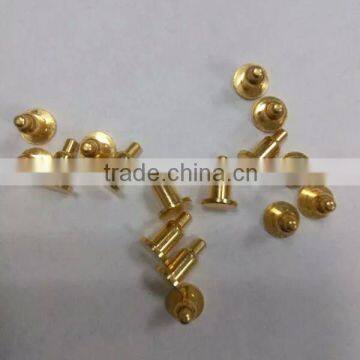

pogo pin spring loaded battery connector electronic spring laoded cable connector pogo pin smd brass PCB application contact pin

Name: pogo pin spring loaded battery connector electronic spring laoded cable connector pogo pin smd brass PCB application contact pin
Brand: Xinfucheng
Price: USD $0.09 - 0.15 / Piece

FOB Price

USD $0.09 - $0.15 / Piece

10000 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shenzhen port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Xinfucheng	Model Number:	Custom
Type:	Adapter	Application:	Other, PCB, PCB	Gender:	Male

Product Description

pogo pin spring loaded battery connector electronic spring laoded cable connector pogo pin smd brass PCB application contact pin

Model	D1	D2	D3	L1	L2	L3	L
XFC-00115018R	1.00	1.50	2.00	0.60	1.20	0.40	1.80
XFC-01015020R	1.00	1.50	2.00	0.50	1.50	0.40	2.00
XFC-50315020R	1.00	1.50	2.00	0.60	1.40	0.40	2.00
XFC-01115025R	1.00	1.50	2.00	0.70	1.80	0.40	2.50
XFC-19115028R	1.00	1.50	2.00	1.00	1.80	0.40	2.80
XFC-69720028R	1.30	2.00	3.00	1.00	1.80	0.50	2.80
XFC-00215030R	1.00	1.50	2.00	1.00	2.00	0.40	3.00
XFC-64415030R	1.00	1.50	2.00	1.00	2.00	0.40	3.00
XFC-78415030R	1.00	1.50	2.00	1.00	2.00	0.40	3.00
XFC-41115031R	0.90	1.46	2.00	1.00	2.10	0.50	3.10
XFC-73915032R	1.00	1.50	1.65	0.80	2.40	0.60	3.20
XFC-69015033R	0.90	1.50	2.00	1.05	2.25	0.30	3.30
XFC-00315035R	1.00	1.50	2.00	1.00	2.50	0.40	3.50
XFC-52115035R	1.00	1.50	3.00	1.30	2.20	0.50	3.50
XFC-00415040R	1.00	1.50	2.00	1.50	2.50	0.40	4.00
XFC-54515040R	1.00	1.50	2.00	1.30	2.70	0.40	4.00
XFC-79515040R	1.00	1.50	2.00	1.00	3.00	0.50	4.00
XFC-80015040R	1.00	1.50	2.00	1.50	2.50	0.40	4.00
XFC-80415040R	1.00	1.50	2.00	1.50	2.50	0.40	4.00
XFC-87215040R	1.00	1.50	2.00	1.50	2.50	0.40	4.00
XFC-84415041R	0.90	1.50	2.00	1.30	2.80	0.30	4.10
XFC-87916041R	0.90	1.60	2.00	1.30	2.80	0.30	4.10
XFC-00515045R	1.00	1.50	2.00	1.50	3.00	0.50	4.50
XFC-23515045R	0.95	1.50	2.00	1.50	3.00	0.50	4.50
XFC-25715045R	1.00	1.50	2.00	1.50	3.00	0.40	4.50
XFC-49815045R	0.90	1.50	2.00	1.50	3.00	0.40	4.50
XFC-67515045R	1.00	1.50	2.00	1.50	3.00	0.50	4.50
XFC-76915045R	1.00	1.50	2.00	1.50	3.00	0.50	4.50
XFC-86215046R	1.00	1.50	2.60	1.60	3.00	1.00	4.60
XFC-22512047R	0.80	1.20	1.30	1.30	3.40	1.00	4.70
XFC-74415048R	1.00	1.50	2.00	1.30	3.50	0.50	4.80
XFC-00615050R	0.90	1.50	2.00	1.50	3.50	0.50	5.00
XFC-36815050R	0.90	1.50	2.00	1.50	3.50	0.50	5.00
XFC-77312052R	0.80	1.18	1.30	1.30	3.90	1.00	5.20
XFC-48940054R	2.60	4.00	5.00	1.40	4.00	0.50	5.40
XFC-00915055R	0.90	1.50	2.00	1.50	4.00	0.50	5.50
XFC-39115055R	0.90	1.50	2.00	1.50	4.00	0.50	5.50
XFC-56023055R	1.80	2.30	3.30	2.00	3.50	1.00	5.50
XFC-83215055R	0.90	1.50	2.00	1.50	4.00	0.50	5.50
XFC-88015055R	0.90	1.50	2.00	1.50	4.00	0.50	5.50
XFC-36610058R	0.50	1.00	1.40	1.50	4.30	0.50	5.80
XFC-88132059R	2.00	3.20	5.50	1.40	4.50	0.30	5.90
XFC-01215060R	0.90	1.50	2.00	2.00	4.00	0.50	6.00
XFC-19415060R	0.90	1.50	2.00	1.50	4.50	0.50	6.00
XFC-30015060R	0.90	1.50	1.60	1.50	4.50	0.50	6.00
XFC-87312060R	0.80	1.18	1.30	2.00	4.00	1.00	6.00
XFC-69442061R	3.00	4.20	6.50	1.45	4.70	0.30	6.15
XFC-84712062R	0.80	1.18	1.30	1.30	4.90	1.00	6.20
XFC-73115063R	1.00	1.50	2.20	1.50	4.80	1.80	6.30
XFC-01315065R	0.90	1.50	2.00	2.00	4.50	0.50	6.50
XFC-18415065R	0.90	1.50	1.80	2.00	4.50	0.50	6.50
XFC-32415065R	0.90	1.50	2.00	2.00	4.50	0.50	6.50
XFC-76415065R	0.90	1.50	2.00	2.00	4.50	0.50	6.50
XFC-27815067R	0.90	1.50	1.60	2.00	4.70	0.50	6.70
XFC-01415070R	0.90	1.50	2.00	2.00	5.00	0.50	7.00
XFC-15725070R	1.50	2.50	4.00	2.50	4.50	1.00	7.00
XFC-18515070R	0.90	1.50	1.80	1.50	5.50	0.80	7.00
XFC-71115070R	0.90	1.50	2.00	2.00	5.00	0.40	7.00
……
……

Company Information

Shenzhen Xinfucheng Electronic limited company

XFC(Short for :Shenzhen Xinfucheng Electronic limited company) was founded in 2004. During the last 10 years, we have developed and cooperated with many PCB test, ICT test, IC test, BGA test tool, and burn-in socket enterprises. Now, with a stable development and constant new business, XFC specializes in manufacturing test pins and accessories. Our aim is to be the best supplier of test tools.

With the tenet of "Quality first, customer as god, and sincere service", we take credit as the foundation, relying on the technology, living with the quality, and taking honesty as the root. XFC Electronic hopes to realize the win-win business model with all client.

Main Products: XFC Electronic manufactures and acts as an agent of probe pins with the following brands: LEENO, QA, IDI, (POGO) ECT, ORGAN, BT, INGUN, FM, and CCP. Besides, we produced and sell various kinds of universal probe pins, high-frequency pins, high-current pins, electronic pins, ICT probe pins, contact wires of springs, phosphor bronze barrels, IC test sockets, CMOS sensor test sockets, QFN test sockets, IC sockets, and POGO pins.

Factory information

Manufacture		Shenzhen Xinfucheng Electronic limited company
Name		pogo pins
Item name		High precision/machining
Moder number		Customized
Materials		Phosphor Bronze with gold plated /optional as clients required
		Hardened Beryllium copper with gold plated /optional as clients required
		Brass(3602 /3604 /H59 /H62 /etc)
		Stainless steel(303 /304 /316 /412,etc) /optional as clients required
		Carbon steel /Die steel /etc
		Nickle plated over brass or stainless steel / BeCu / optional as clients required
		Please contact us if thr material is not listed above
Spring		stainless steel/music wire with gold plated,or make as you required.
Specification		as your drawings
Surface finished		ang special coatings, heat treating, plating, or other specialized operations.
Tolerance		±0.05 or more tight
Certifications		CE;ISO9001;RoHS
File format		PDF,JPG,DWG/DXF, IGS/STP, or Solid Works, etc.
Standard		RoHS
Payment		T/T,Western union, Paypal
Producing area		Shenzhen Guangdong province China(mainland)
Production equipment		CNC center,CNC milling machine, CNC turning machine,CNC drilling machine, CNC lathes, lathe, 4axis machine etc.
Weight		0.01-100kg
Materials		As the drawing of clients.
Demension		According to the clients request.
Inspection equipment		CMM,projection, Calipers, Micro caliper, Thread micro caliper, Pin gauge, Caliper gauge, Pass meter, Pass meter, precision level 2 detector, etc.
Main process		CNC turning, CNC machining, Die casting, Stamping, Mould, Assembling etc.
Others		Customized and tailored orders are welcome. high quality and quick delivery in time. OEM and ODM are accepted RoHS compliant Inspection report and material test certificates are available upon request

Termas of shippment		FOB
MOQ		1-100pieces is just for sample
Carton size		282022 & 282016
Pallet size		11010090CM
Warranty		We confirm our good will satisfy your request.
After sale services		We will follow up goods with every consumer and help solve problems after sale. We also have Trade Assurance in .

Payment & transport

FAQ
Q: What's your main products?
A: Our factory main products are: battery pogo pin, PCB test probe, BGA test probe, Test sockets, Watch spring bars etc.

Q: When can I get the quotation ?
A: We usually quote within 24 hours after you put an inquiry.If you need to know the price urgently, please note us in your email, I will reply to your inquiry with priority.

Q: Can you produce the parts with all demensions and tolerance on the drawing?
A: Because some high precision part with special tolerance requirement,we will ckeck our machining capabilities, and if not meeting the tolerance required, we will advise client with our tolerance range.

Q: How can I get a sample to check the quaity?
A: After confirmation, we will send sample to your address as far as possible.

Q: What's the delivery time?
A:Generally, The delivery time is within a week for sample and within two weeks for mass quantity.

Q: I have no T/T or Western union, can I pay for it with Paypal?
A: Sure, Paypal, T/T and Western union are available.

Q: Why I need to trust you?
A: Absolutely, We have over 10 years production experience, We have certificates with CE; ISO9001:2008; RoHS. And if it is possible, welcome to visit our company.

Q: Could you give please me the sample for free?
A: If we have the product in stock, we will send sample for you without payment.
