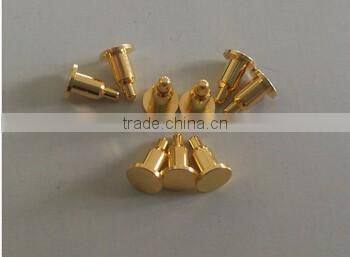

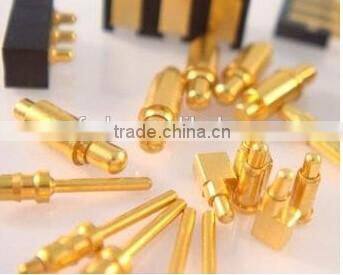

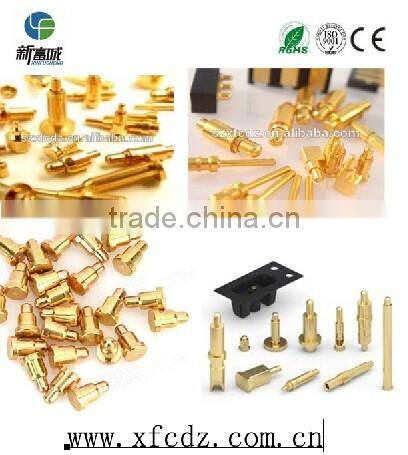

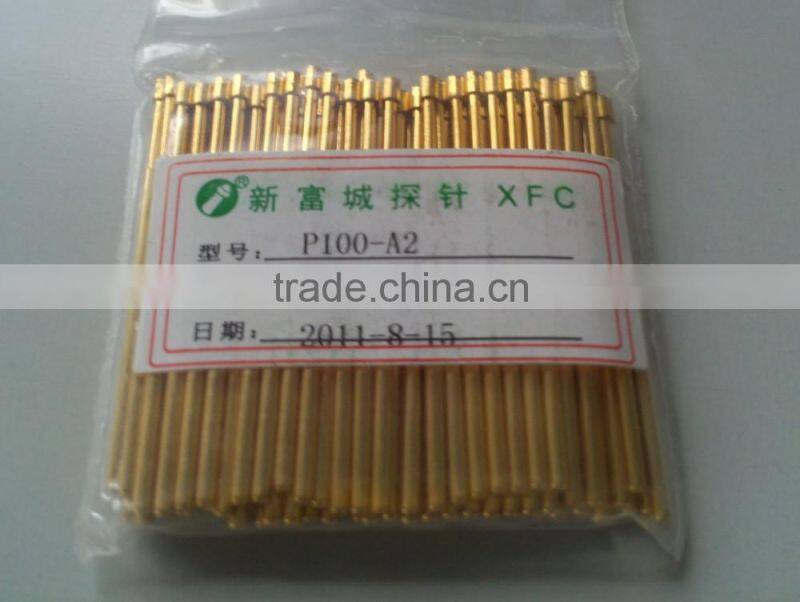

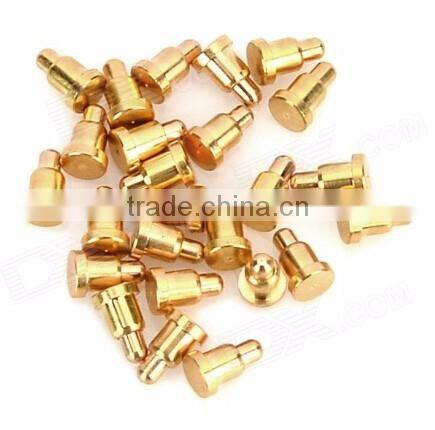

Rosh and CE approved Pogo Pin, Brass Copper Pogo Pin
1.Material for plugger and body: Brass Alloy ,
Spring material: Stainless Steel Wire
2.Surface Treatment: Gold plated 1mirco inch, 3mirco inch over Nickle
3.Produce by: CNC Auto Lathe Machine
4.Sample leadtime: 5~8days
5.Application: Toy, Automotive, Instrument, Electronic Equippment,Battery Charge
6.Package: 5k~10k per bag or tape package with cover
Electronic:
a. Current rating: 1A
b.Spring force:50g~120g,can make according client requirement
c. Life cycles: 10000 max
d.Contact Resistance:30m Ohm

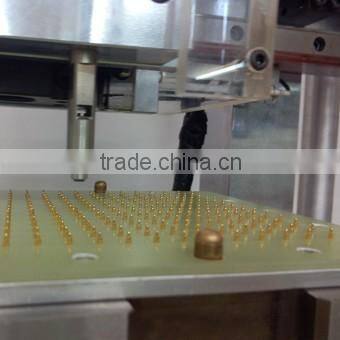

Production
| Material &Plating: |
| Plunger: Brass,plating min 0.25um Au over Min 1.4um Ni. |
| Barrel:Brass,plating Min 0.1um Au over 1.4um Ni. |
| Spring:SUS or SWP |
| Plastic is high temperature resistant material |
| Plating:Gold,Silver,Palladium-Nickel |
| Parameters: |
| Rated Current:2.0A |
| Rated Voltage:12V |
| Life:exceed 50,000 recycling |
| Working Temp: From -25℃ to +75℃ 90% R.H,Max From -25℃ to +75℃ 90% R.H,Max |
| Storage Temp.:From -40℃ to +85℃ 90% R.H,Max |
| Electric Perfermance: |
| Contact resistance:30mohm Max.at working height |
Insulation resistance:500V DC with housing insulation or insulation in one min>100MΩ in AC condition |
| Voltage resistance:the max electricity leakage |
| Mechanical: |
| Contact normal force:operating point is more than 60gf |
| Retention:0.3kgf/pin |
| Durability:50000 times in spring force |
| Environment: |
| Humidity range:10% RH to 90% RH |
| Salt spray:48H |
| Above specs are our standards,it can be customized by your own requests |
Material &Plating:
Plunger: Brass,plating min 0.25um Au over Min 1.4um Ni.Barrel:Brass,plating Min 0.1um Au over 1.4um Ni.Spring:SUS or SWPPlastic is high temperature resistant materialPlating:Gold,Silver,Palladium-Nickel
Parameters:Rated Current:2.0ARated Voltage:12VLife:exceed 50,000 recyclingWorking Temp: From -25℃ to +75℃ 90% R.H,Max From -25℃ to +75℃ 90% R.H,MaxStorage Temp.:From -40℃ to +85℃ 90% R.H,Max
Electric Perfermance:Contact resistance:30mohm Max.at working height
Insulation resistance:500V DC with housing insulation or insulation in one min>100MΩ
in AC condition
Voltage resistance:the max electricity leakage
Mechanical:Contact normal force:operating point is more than 60gfRetention:0.3kgf/pinDurability:50000 times in spring force Environment:Humidity range:10% RH to 90% RHSalt spray:48H
Above specs are our standards,it can be customized by your own requests
