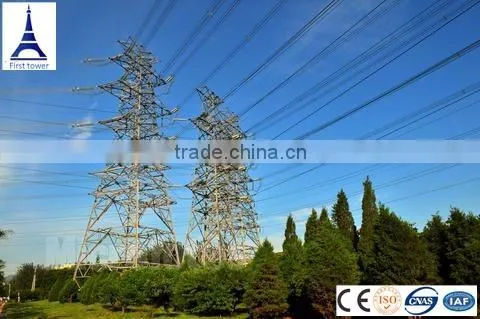

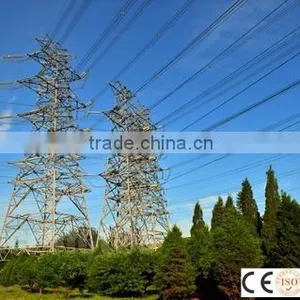

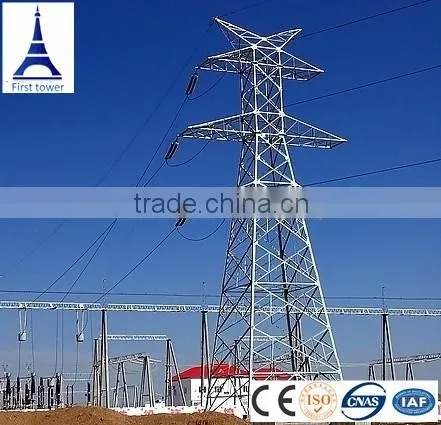

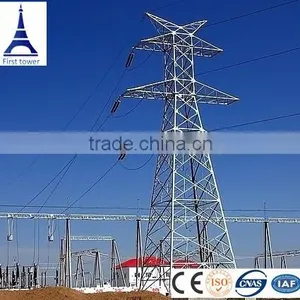

electrical transmission towers electrical pylon

Electrical transmission towers, electrical pylons  have proved to be highly attactive due to great capability for carrying torsional loads-which guarantees top operational reliability. These transmission towers can also be installed at critical locations such as near shorelines and on steep slopes. The towers and the traveral supports are designed for up to 500m spans between poles.

First Tower power transmission towers are designed and produced in accordance with EN or ANS or other international standards.

• Structure : Self supporting ( free stand) ,  Guyed tower
• Type:  Suspension tower, Strain tower, Terminal tower, Angle tower, Crossing tower.

• More specification

Type	electrical transmission towers, electrical pylon
Suit for	electricity transmission line
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	ASTM A572,S355,Q235,Q345,Q360 or equivalent internation standard
Voltage	10KV, 66KV, 110KV,132KV,220, 400KV, 500KV ect
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode, flange mode
Earthquake	Against 8 grade
Wind Speed	50m/min
Welding	AWS D1.1 standard.  CO2 welding or submerged arc auto methods
Life Period	30 years
Standard	ISO 9001:2008
Thickness	2.5mm -30.0mm



• Various shapes:



Quality Management system:

• ISO 9001:2008 certificate .
• Many steps guarantee no fissure, scar, overlap, layer or other defects, internal and external welding makes the pole more beautiful in shape
• Before  production ,  all the material must be passed the chemical and physical analysis to   make sure that they have met the requested strength and component.

Inspection system:

• Inpection team : Experienced engineers, technonolgy workers, advanced test equipments .
• Qulity system: GB/T19001-2008-ISO9001,GB/T 24001-2004-ISO 14001,GB/T28001-2001
• Manufacture standard: ASTM A123 or AS/NZS 4680:2006,  AWS ( American Welding Society ) D 1.1  or Euro standard.



Packing:  Covered by ploy on pallets, or other packages suritable for seaworthy.

Shipping: Within one month after contract signed.

 First Tower Co., Ltd. located in the famous China's largest production base. Its fixed capital is 5000 million RMB, with 400 skiilled workers, 35 professinal engineers, covering an area of more than 60 acres. First Tower is a combination of design, production, transportation, installation and maintenance. The main products of our company are corrugated metal culverts, assembled corrugated culverts, 11-500kv tower , electrical transmission towers, electrical pylon , transmission pole, communication towers, telecom poles, television tower, wind tower, lightning tower, watch tower, etc.

   Our products have passed ISO9001:2008, according to EN and ANSI standard. We had passed SGS inspection and can apply for CE certification.

• Why us?

  Professional factory and many years of export experience, and offer the best price with high quality product, timely delivery, also have good after-sales service, therefore with good reputation and many clients have good long-term business relationship

•  Price Term: EXW, FOB, CFR or CIF.
•  Drawing design: Owning design team.
•  MOQ: 1 sets for Customized
•  Payment: T/T, L/C. Other payment way can be negotiated.
