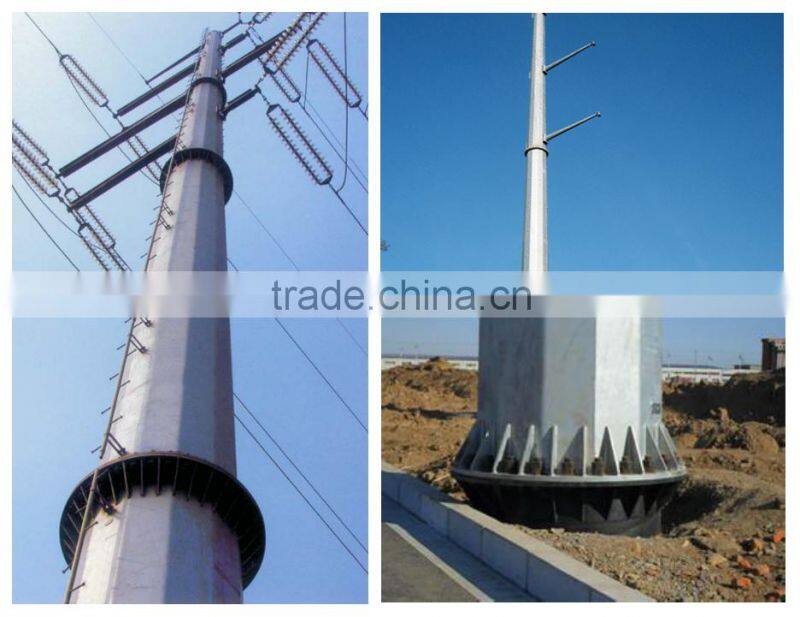

Galvanized steel transmission pole
Galvanized steel transmission pole has been proved to be highly attactive due to great capability for carrying torsional loads-which guarantees top operational reliability. These transmission opes can also be installed at critical locations such as near shorelines and on steep slopes. The poles and the traveral supports are designed for up to 500m spans between poles.
First Tower power transmission poles are designed and produced in accordance with EN or ANS or other international standards.
- Structure : Self supporting ( free stand) , Guyed pole

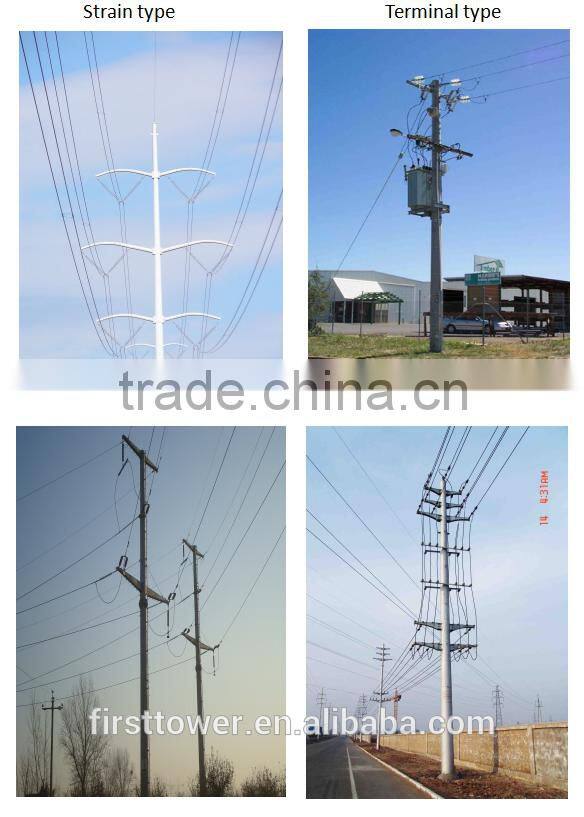

- Type: Suspension power pole, Strain power pole, Terminal pole, Angle pole, Crossing type power pole.
- More specification
Type | transmission pole |
Suit for | Power pole for electricity transmission line |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material | ASTM A572,S355,Q235,Q345,Q360 or equivalent internation standard |
Voltage | 10KV,110KV,132KV,220,500KV,or other |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles | Insert mode, flange mode |
Earthquake | Against 8 grade |
Wind Speed | 50m/min |
Welding | AWS D1.1 standard. CO2 welding or submerged arc auto methods
|
Life Period | 30 years |
Type | Suspension Pole,Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc
|
Standard | ISO 9001:2008 |
Thickness | 2.5mm -30.0mm |
- Product detals:

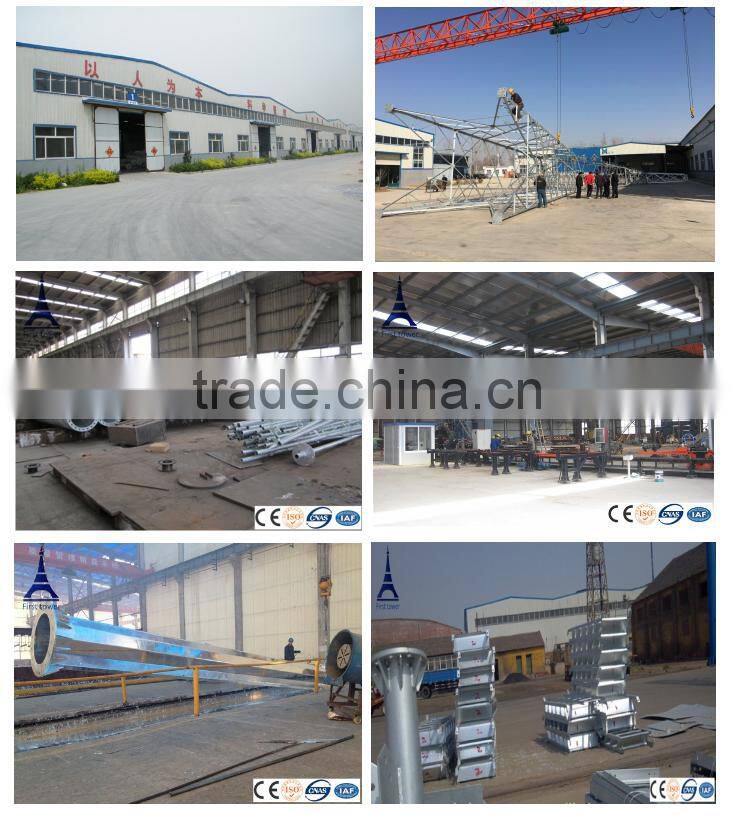

First Tower Co., Ltd. located in the famous China's largest production base. Its fixed capital is 5000 million RMB, with 400 skiilled workers, 35 professinal engineers, covering an area of more than 60 acres. First Tower is a combination of design, production, transportation, installation and maintenance. The main products of our company are corrugated metal culverts, assembled corrugated culverts, Galvanized electric transmission steel pole ,transmission tower, transmission pole, communication towers, telecom poles, television tower, wind tower, lightning tower, watch tower, etc.
Our products have passed ISO9001:2008, according to EN and ANSI standard. We had passed SGS inpection and can apply for CE certification.
Packing: Covered by ploy on pallets, or other packages suritable for seaworthy.
Shipping: Within one month after contract signed.
Quality Management system:
- ISO 9001:2008 certificate .
- Many steps guarantee no fissure, scar, overlap, layer or other defects, internal and external welding makes the pole more beautiful in shape
- Before production , all the material must be passed the chemical and physical analysis to make sure that they have met the requested strength and component.
Inspection system:
- Inpection team : Experienced engineers, technonolgy workers, advanced test equipments .
- Qulity system: GB/T19001-2008-ISO9001,GB/T 24001-2004-ISO 14001,GB/T28001-2001
- Manufacture standard: ASTM A123 or AS/NZS 4680:2006, AWS ( American Welding Society ) D 1.1 or Euro standard.
- Price Term: EXW, FOB, CFR or CIF.
- Drawing design: Owning design team.
- MOQ: 1 sets for Customized
- Payment: T/T, L/C. Other payment way can be negotiated.
- Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
Why us?
Professional factory and many years of export experience, and offer the best price with high quality product, timely delivery, also have good after-sales service, therefore with good reputation and many clients have good long-term business relationship
