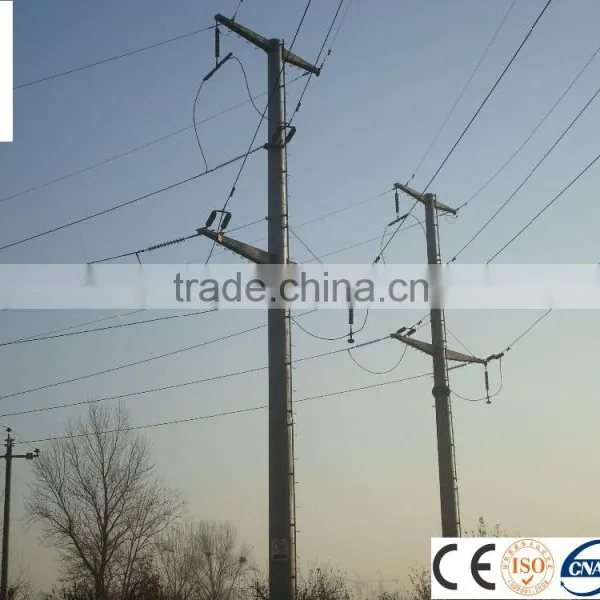

HDG high voltage power poles
HDG high voltage power poles has proved to be highly attactive due to great capability for carrying torsional loads-which guarantees top operational reliability. These transmission opes can also be installed at critical locations such as near shorelines and on steep slopes. The poles and the traveral supports are designed for up to 500m spans between poles.
First Tower galvanized steel power poles are designed and produced in accordance with EN or ANS or other international standards.
- Structure : Self supporting ( free stand) , Guyed pole
- Type: Suspension power pole, Strain power pole, Terminal pole, Angle pole, Crossing type power pole.
- More specification
Type |
HDG high voltage power poles |
Suit for |
Power pole for electricity transmission line |
Shape |
Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material |
ASTM A572,S355,Q235,Q345,Q360 or equivalent internation standard |
Voltage |
10KV,110KV,132KV,220,500KV,or other |
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles |
Insert mode, flange mode |
Earthquake |
Against 8 grade |
Wind Speed |
50m/min |
Welding |
AWS D1.1 standard. CO2 welding or submerged arc auto methods
|
Life Period |
30 years |
Type |
Suspension Pole,Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc
|
Standard |
ISO 9001:2008 |
Thickness |
2.5mm -30.0mm |
- Product detals:
Package: Covered by ploy on pallets, or other packages suritable for seaworthy.
Delivery time: Within one month after contract signed.
Quality Management system:
- ISO 9001:2008 certificate .
- Many steps guarantee no fissure, scar, overlap, layer or other defects, internal and external welding makes the pole more beautiful in shape
- Before production, all the material must be passed the chemical and physical analysis to make sure that they have met the requested strength and component.
Inspection system:
- Inpection team : Experienced engineers, technonolgy workers, advanced test equipments .
- Qulity system: GB/T19001-2008-ISO9001,GB/T 24001-2004-ISO 14001,GB/T28001-2001
- Manufacture standard: ASTM A123 or AS/NZS 4680:2006, AWS ( American Welding Society ) D 1.1 or Euro standard.
First Tower Co., Ltd. located in the famous China's largest production base. Our company's fixed capital is over 5000 million RMB, with more than 400 existing stuff, covering 60 acres. First tower is a combination of design, production, transportation, installation and maintenance. The main products are corrugated metal culverts, assembled corrugated culverts, iron tower,transmission line tower,four column pipe tower, television tower, wind tower, lightning tower, watchtower, telecommunication galvanized steel tower etc.
