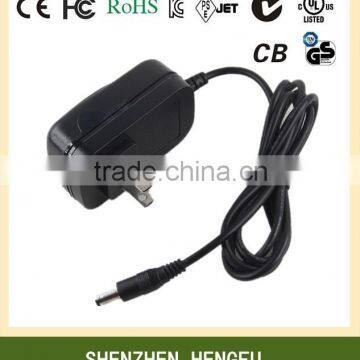

Universal 11V 2.5A 3A LED Power Supply with CCC 19510
- 5000 Unit / Units per Month
- Shenzhen
You May Like
-
100-240V 12V 0.5A LED Power Supply with CCC 19510
-
220V 12V 1.5A LED Power Supply with CCC 19510
-
Wholesale 12V 2A 2.1A LED Power Supply with CCC 19510
-
Wholesale 12V 2.5A 3A LED Power Supply with CCC 19510
-
CCC 19510 Certificated 12.6V 2A 2.5A LED Power Supply
-
CCC 19510 Certificated 12.6V 2.8A LED Power Supply
Product Details
Place of Origin | Guangdong, China | Brand Name | HF-FYD | |
Model Number | FY110yyyy | Output Power | 1 - 50W | |
Output Type | Single | Input Voltage | 220V | |
Output Voltage | 11V | Output Frequency | 50/60HZ | |
Output Current | 2500mA 3000mA |
Product Description
11V LED POWER SUPPLY
our company is one of the leading power supply adapter manufaturer in China , being in this field for over 10 years . We have successfully exported to European , Janpan ,Korea ,Austrialia etc . We also can specially offer OEM service ,buyer label . Currently we are looking to expand our Sounth American channels .
Our production capability per month has reached up to around 150000 units .Our after –sales service would be acceptable to our customers together with having 1 year quality warranty .
The products that we produce completely meet production safety requests . over 40 products have acquired UL,CB test report, EMC test report,SAA ,C-Tick,CE ,PSE,KC.FCC,RoHS etc approved ,more are underway.
AC Input |
AC Input Voltage.............100~240V AC 47~63 Hz
Inrush Current..............<30A(AC 240V at 25°C)
input Current Limiting..............<2.5A(under min AC input and full load)
Efficiency..............>80%
DC Output |
DC Voltage Regulation
Parameter | Line Regulation | load Regulation | Cross Regulation |
V1:11V | ±5.0% | ±5.0% | N/A |
DC Output Current
Parameter | Min Current | Rate Current | unit |
V1:11V | 0.1 | 2.5-3.0 | A |
Output Ripple & Noise............. 50 mVp-p@ 25 degrees C
Output Dynamic Load Response
Dynamic Load | DC Voltage Regulation |
50%~100%~50% | ±10% |
Overshoot at turn-on/ turn-off.............<10%
Protection Function |
SCP...........<0.1 ohms
OCPlimits.........6A
Timing |
Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)
Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)
Environment Requirement |
Working temp...........0°C~ 40°C
Storage temp Range..........-10°C~ +85°C
Working humidity..........25%~90% relative humidity (Non- condensing)
Storage humidity Range..........10%~90% relative humidity (Non- condensing)
MTBF............ 50K hours (25°C , Full load and rated voltage input)
Product Safety Requirement |
Standards............Meet IEC60950-1standard requirement
Leakage Current.............not exceed 0.25mA at 220Vac/50Hz
Insulation Resistance...........≥50MΩ ,500VDC
Dielectric Strength Testing |
100%Hi-pot test
Item | Specification | Remark | |
Primary to Secondary | 1.5KVac | <5mA | No arcing No broken |
Primary to P.G | N/A | N/A |
100pcs/ctn
size of carton:42.5*33.5*25CM3
1.MOQ:300PCS
2.Warranty:2 years
3.Delivery Time:15 days after we get your payment
4.Samples:You could order 1~3pcs samples to test,but it is not free.,it will take 3 working days to produce after we get your payment
5.Shipment:DHL,UPS,FedEx,Ocean,you could choose the most convenient one
6.Payment Term:T/T
