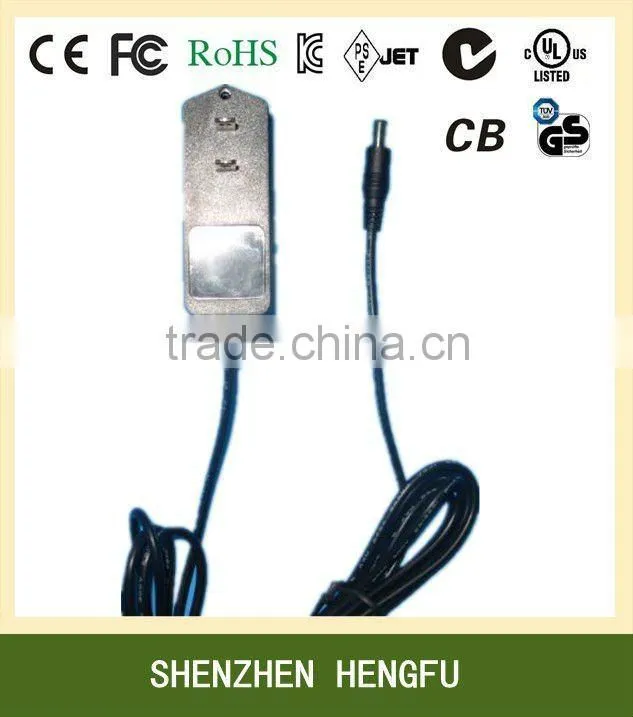

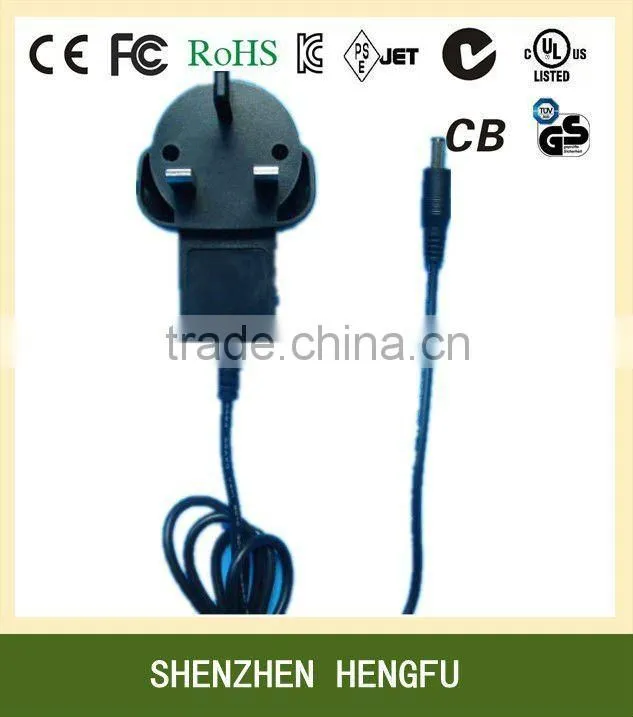

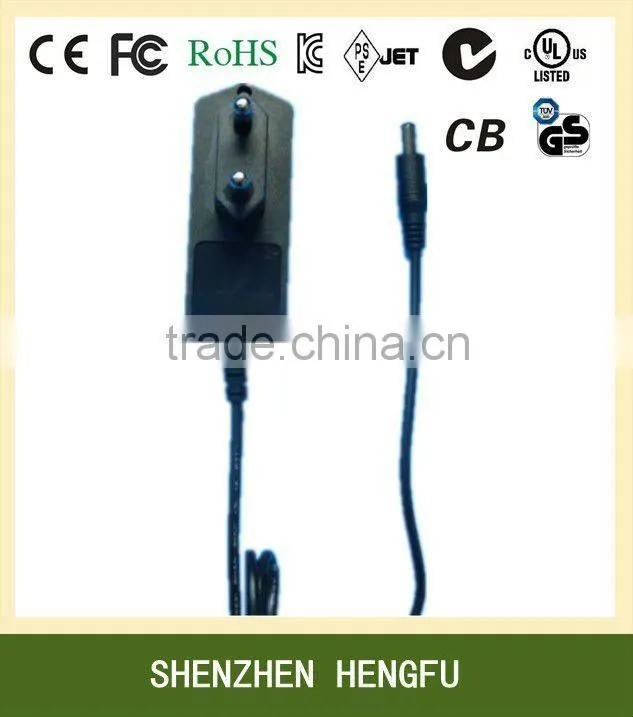

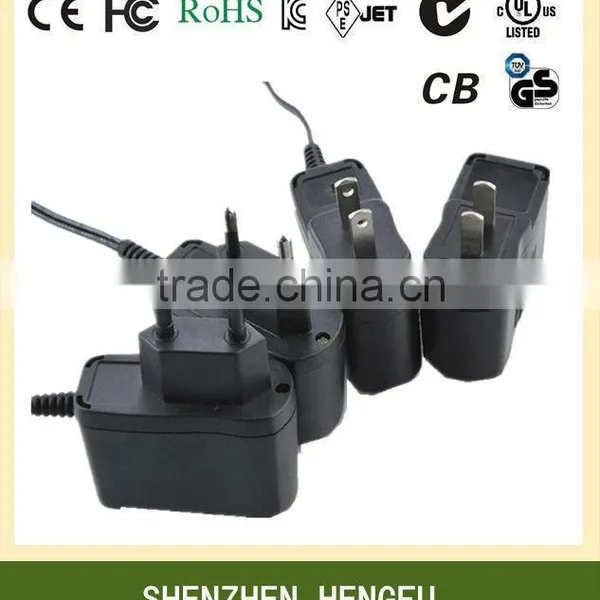

Help CenterWall Mount 14V 0.5A LED Power Supply With CCC 19510
Related Products
-
Constant Voltage 14V 2A LED Power Supply With CCC 19510US$ 3.7 - 4.4MOQ: 200 Units -
CCC 19510 Certificated 14V 2.5A LED Power SupplyUS$ 4.2 - 5.4MOQ: 200 Pieces
-
Constant Voltage 14.5V 2A LED Power Supply With CCC 19510US$ 3.7 - 4.4MOQ: 200 Units
-
230V 16V 0.5A LED Power Supply With CCC 19510US$ 2.15 - 2.55MOQ: 200 Units
-
CCC 19510 Certificated 16V 1A LED Power SupplyUS$ 2.9 - 3.6MOQ: 200 Pieces
Application
Widely used in medical,digital,communication,security,lighting, DVD players, LCD and TFT TVs, MP4 players, digital cameras, surveillance video camera,other A/V products,cell phone charger,network information,security equipment,small home appliances,etc.
Electric specification:
1. input voltage :AC100V-240V
2. output voltage:DC14V
3. output current:0.5A
Features:
1. low consumption:0.3(up to CE standard)
2. small volume ,light weight ,easy to carry
3. Defect rate:0.3%
Specifications
Our products have the advantages:
1.easy to carry and compact size
2.two years warranty
Products information
- 1. Name: FY1400500
- 2. Frequency:50/60HZ(47/63HZ)
- 3. Output power :7W
- 4. Output voltage: 14V
- 5. Output current : 0.5A
- 6. Line regulation : ±1%
- 7. Load rang : ±5%
Products Protection
1.Insulation resistance: DC 500V/100MΩ
2.Overvoltage protection:120%MIN
3.Overcurrent protection:120%MIN
4.Dielectric Strength test :AC 3000V/5MA
5.Operating temperature:0-40°C
6.Storage temperature:-20-85°C
7.Operating Humidity:5-95%ROHS
8.No Load Power Consumption:<0.3W
9.Efficiency:70% Min
10.Storage humidity: 5-90%RH
11.Working Temperature:0-40oC Max
12.Storage temperature:-20-+80C
13.input current(max): 0.53A
14.Short Circuit Protection
15.Over Current Protection
16.Over Voltage Protection
Safty certificates
FCC,GS,CE(LVD/EMC),RoHs,PSE,SAA,CCC,C-tick,UL,etc.
Warranty & Test
1.two years warranty
2.Average fault-free time 50000 hours at 25°C.
3.Burn-in test: the products have been tested by 4 hours under normal input and 80-100% rated load at 40°C±5°C
CERTIFICATION
100pcs/carton
size of carton:42.5*33.5*25CM3
1.MOQ:1000PCS
2.Warranty:2 years
3.Delivery Time:15 days after we get your payment
4.Samples:You could order 1~3pcs samples to test,but it is not free.,it will take 3 working days to produce after we get your payment
5.Shipment:DHL,UPS,FedEx,Ocean,you could choose the most convenient one
6.Payment Term:T/T
