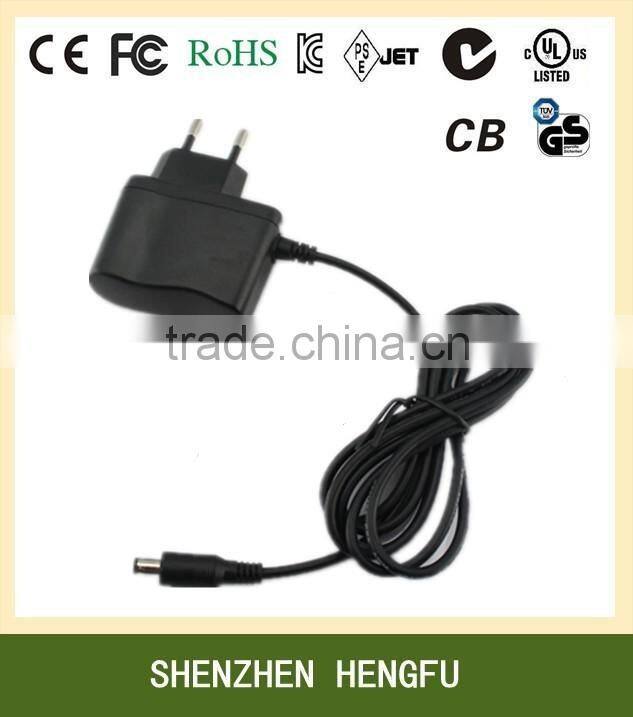

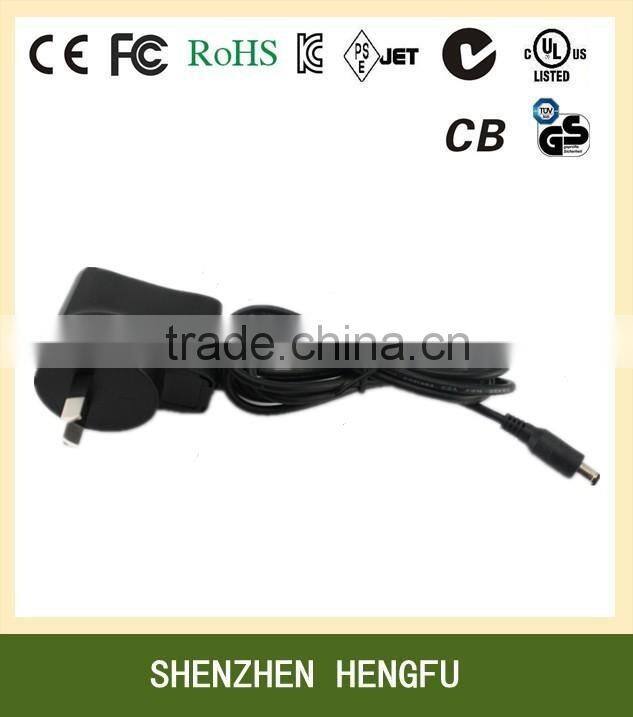

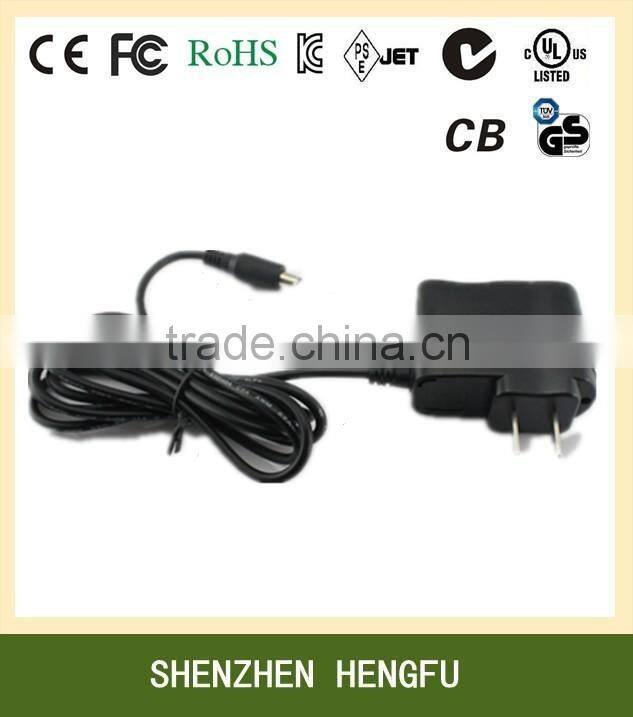

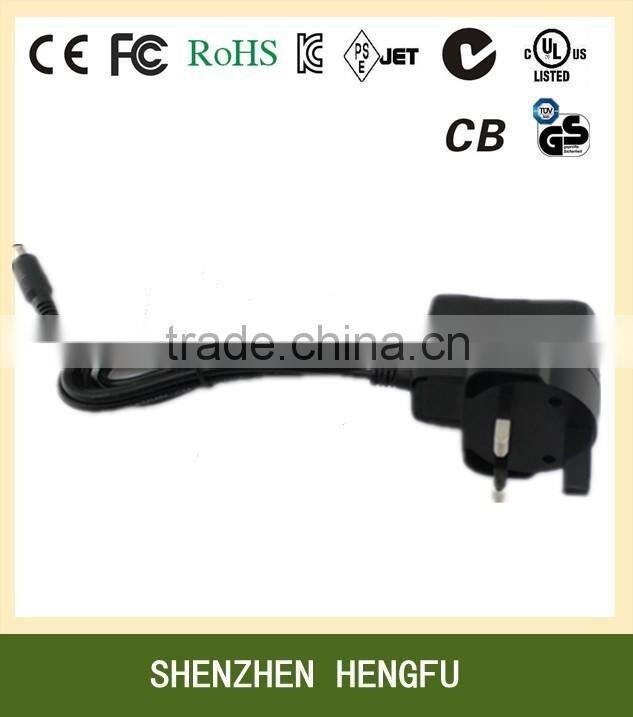

100-240V 10V 0.5A 1A 1.5A LED Power Supply With CCC 19510

100-240V 10V 0.5A 1A 1.5A LED Power Supply With CCC 19510 thumbnail-1
100-240V 10V 0.5A 1A 1.5A LED Power Supply With CCC 19510 photo-1
US$ 1.7 - 3.5 MOQ: 200 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HF-FYD
Model Number:
FY100yyyy
Contact Supplier Request Quote Chat Now
Shenzhen Hengfu Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HF-FYD
Model Number FY100yyyy
Output Power 1 - 50W
Output Type Single
Input Voltage 220V
Output Voltage 10V
Output Frequency 50/60HZ
Output Current 500mA 1000ma 1500ma

10V LED POWER SUPPLY








Company Information



our company is one of the leading power supply adapter manufaturer in China , being in this field for over 10 years . We have successfully exported to European , Janpan ,Korea ,Austrialia etc . We also can specially offer OEM service ,buyer label .  Currently we are  looking to expand our Sounth American channels .







Our production capability per month has reached up to around 150000 units .Our after –sales service would be acceptable to our customers together with having 1 year quality warranty .







The products that we produce completely meet production safety requests . over 40 products have acquired UL,CB test report, EMC test report,SAA ,C-Tick,CE ,PSE,KC.FCC,RoHS etc approved ,more are underway.









Product Description









Typical model list



 Output Voltage

 10V

 10V

 10V

 10V

 10V

 10V

 10V

 10V

 10V

 10V

 Output Current

 1A

 1.5A

 2A

 3A

 4A

 4.5A

 5A

 6A

 8A

 10A







AC Input



AC Input Voltage.............100~240V AC 47~63 Hz



Inrush Current..............<30A(AC 240V  at 25°C)



input Current Limiting..............<2.5A(under min AC input and full load)



Efficiency..............>80%







DC Output



DC Voltage Regulation



Parameter

Line Regulation

load Regulation

Cross Regulation

V1:10V

 ±5.0%

 ±5.0%

 N/A







DC Output Current



Parameter

Min Current

Rate Current

unit

V1:10V

 0.1

0.5-1.5

A







Output Ripple & Noise.............  50 mVp-p@ 25 degrees C







Output Dynamic Load Response



Dynamic Load

 DC Voltage Regulation

50%~100%~50%

 ±10%







Overshoot at turn-on/ turn-off.............<10%







Protection Function



SCP...........<0.1 ohms



OCPlimits.........6A







Timing



Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)



Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)







Environment Requirement



Working temp...........0°C~ 40°C



Storage temp Range..........-10°C~ +85°C



Working humidity..........25%~90% relative humidity (Non- condensing)



Storage humidity Range..........10%~90% relative humidity (Non- condensing)



MTBF............ 50K hours (25°C , Full load and rated voltage input)







Product Safety Requirement



Standards............Meet IEC60950-1standard requirement



Leakage Current.............not exceed 0.25mA at 220Vac/50Hz



Insulation Resistance...........≥50MΩ ,500VDC







Dielectric Strength Testing



100%Hi-pot  test



Item

Specification

Remark

 Primary to Secondary

1.5KVac

<5mA

No arcing

No broken

  Primary to P.G

N/A

N/A





 CERTIFICATION

100-240V 10V 0.5A 1A 1.5A LED Power Supply with CCC 19510100-240V 10V 0.5A 1A 1.5A LED Power Supply with CCC 19510100-240V 10V 0.5A 1A 1.5A LED Power Supply with CCC 19510

100-240V 10V 0.5A 1A 1.5A LED Power Supply with CCC 19510


Packaging & Shipping

100pcs/ctn
size of carton:42.5*33.5*25CM3

100-240V 10V 0.5A 1A 1.5A LED Power Supply with CCC 19510







FAQ



1.MOQ:1000PCS



2.Warranty:2 years



3.Delivery Time:15 days after we get your payment



4.Samples:You could order 1~3pcs samples to test,but it is not free.,it will take 3 working days to produce after we get your payment



5.Shipment:DHL,UPS,FedEx,Ocean,you could choose the most convenient one



6.Payment Term:T/T
