hot selling pvc calendering machine,PVC calendering machine in china,ISO pvc calendering machine
Features:

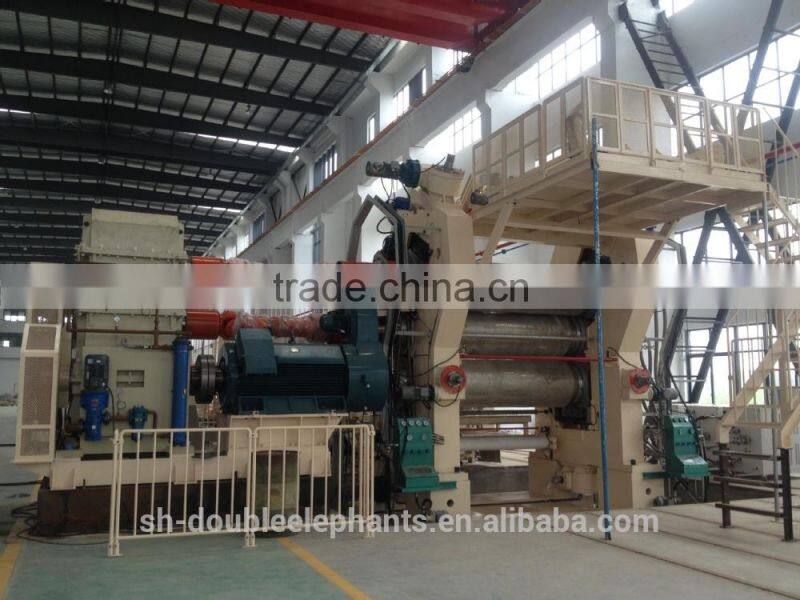

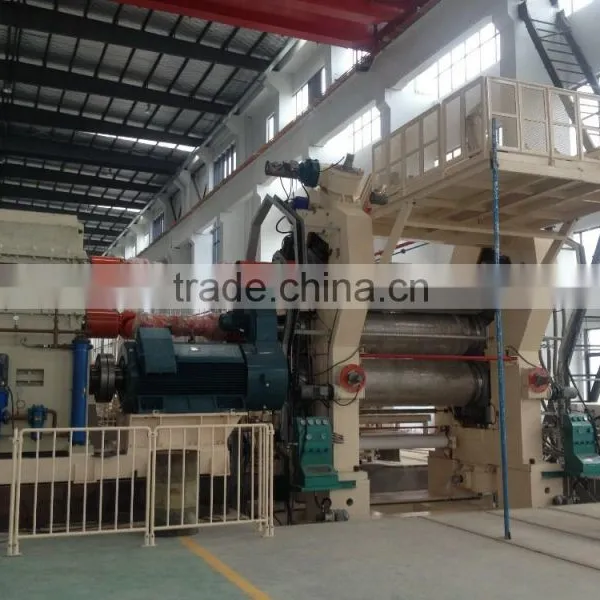

1 This system is composed of five(six)-roll calender, multiple-roll lead device and auxiliary cooling machine.
2 This system is suitable for the production of Rigid PVC film rolls in the thickness of 0.06-1.20mm with the thickness tolerance ≤ 0.01mm. We also can supply the special system which cn produce Rigid PVC film rolls in the thickness of only 0.02mm with the thickness tolerance ≤ 0.003mm.
3 Calender roll adopts independent or combination driving in conjunction with special hard gear reducer;options include preload, anti-curving device and hydraulic axle crossover device.
4 Each drive motor of the calender set can be individually regulated or jointly follow-up regulated.
STYLE |
SY-5Γ(L)1050 |
SY-6Γ(L)1200 |
SY-6Γ(L)1300 |
SY-5Γ(L)1500 |
SY-5Γ(L)1600 |
SY-6Γ(L)1830 |
SY-5Γ(L)2030 |
ROLL SIZE (MM) |
¢400x1050 |
¢400x1200 |
¢450x1300 |
¢510x1500 |
¢560x1600 |
¢610x1830 |
¢660x2030 |
ARRANGEMENT PATTERN |
Γ |
Γ |
Γ |
Γ |
Γ |
Γ |
Γ |
CALENDERING SPEED (M/MIN) |
6-30 |
6-30 |
7-35 |
8-40 |
8-45 |
10-50 |
10-60 |
ROLL QUANTITY |
5 |
6 |
5 |
5 |
5 |
6 |
5 |
CALENDER PRODUCT (MM) |
0.06-1.00 |
0.2-1.2 |
0.08-1.00 |
0.08-1.00 |
0.08-1.00 |
0.08-1.00 |
0.08-1.00 |
WIDTH OF CALENDER PRODUCT(MM) |
610-800 |
610-950 |
610-1050 |
720-1200 |
720-1350 |
800-1500 |
1000-1700 |
DRIVING POWER (KW) |
115 |
136 |
215 |
235 |
290 |
380 |
570 |
HEATING POWER (KW) |
220 |
245 |
260 |
320 |
395 |
460 |
500 |
THEORETIC CAPACITY(KG/H) |
450 |
500 |
650 |
800 |
1000 |
1500 |
2000
|
COMPANY INFORMATION
Shanghai double elephants rubber and plastic machinery co., LTD., founded in 1994, specializing in the production and distribution group of companies affiliated factory production of rubber and plastic machinery, PVC film, artificial leather In addition, we also canaccording to user requirements design and manufacture non-standard equipment.We export to more than 40 countries and regions, deeply user high praise.
GUARANTEE & AFTER-SALE SERVICE
1,One year guarantee for whole machine except tubes
2,24 hours technical support by mail
3,service station in your country, quick response
