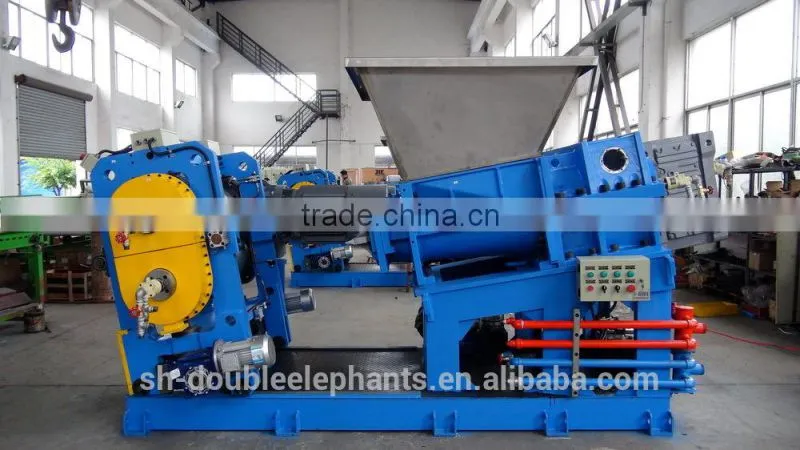

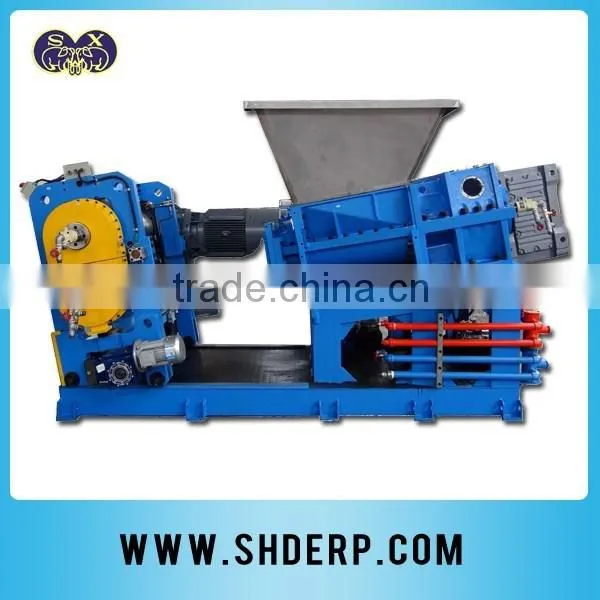

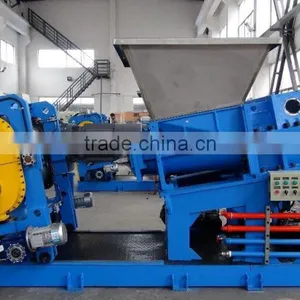

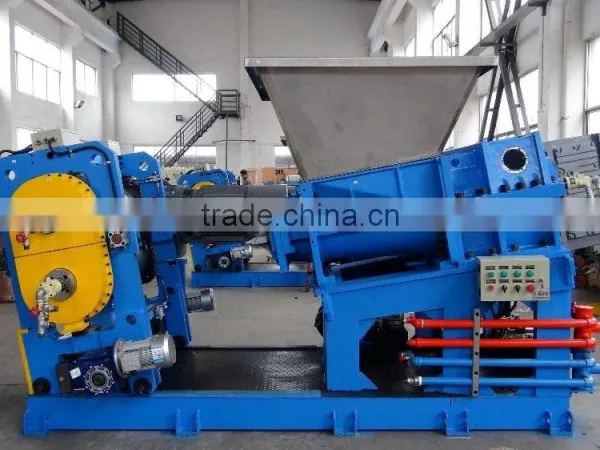

extruder screw barrel ,extruder machine for rope,extruder machine

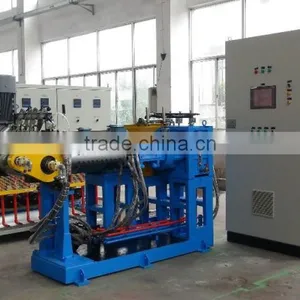

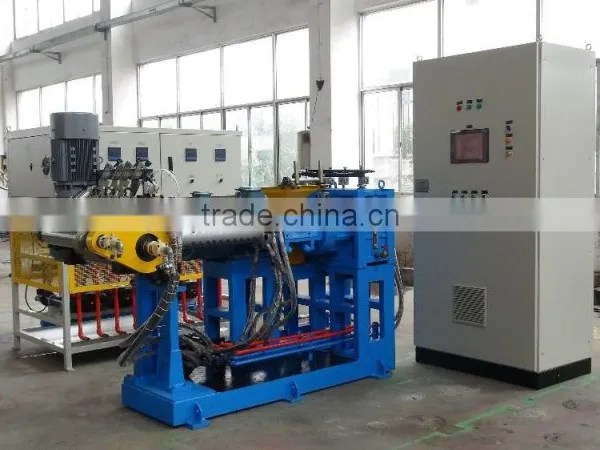

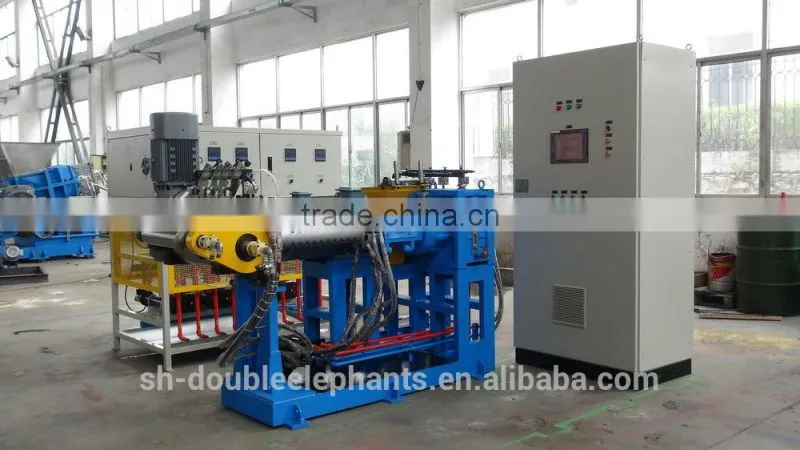

Rubber extruder Detail specifications:
Model |
XJW-90 |
XJW-100 |
XJW-120 |
XJW-150 |
XJW-200 |
XJW-250 |
screw diameter |
Φ90 |
Φ100 |
Φ120 |
Φ150 |
Φ200 |
Φ250 |
screw length-diameter raito |
1:12 |
1:12 |
1:12 |
1:12 |
1:12 |
1:12 |
screw type |
such as deep not equi distance |
|||||
screw speed |
10-50 |
10-50 |
10-45 |
10-40 |
10-35 |
10-30 |
main motor eletrical power(KW) |
45 |
55 |
75 |
90 |
200 |
320 |
main motor speed(r/min) |
980 |
980 |
980 |
980 |
980 |
980 |
pressure vapor(mpa) |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
980 |
cooling water pressure(mpa) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
cooling water temperature(℃) |
0-18 |
0-18 |
0-18 |
0-18 |
0-18 |
0-18 |
production capacity(kg) |
150-250 |
200-350 |
300-500 |
500-800 |
800-1500 |
1500-2000 |
weight equipment(kg) |
3000 |
3500 |
4500 |
5500 |
9000 |
10000 |
size: length * width * high(mm) |
2600*1700*1650 |
3000*1800*1650 |
3300*1800*1650 |
3600*1800*1650 |
4500*1900*1650 |
5500*2000*1650 |
COMPANY INFORMATION
Shanghai double elephants rubber and plastic machinery co., LTD., founded in 1994, specializing in the production and distribution group of companies affiliated factory production of rubber and plastic machinery, PVC film, artificial leather In addition, we also canaccording to user requirements design and manufacture non-standard equipment.We export to more than 40 countries and regions, deeply user high praise.
GUARANTEE & AFTER-SALE SERVICE
1,One year guarantee for whole machine except tubes
2,24 hours technical support by mail
3,service station in your country, quick response
extruder screw barrel ,extruder machine for rope,extruder machine
