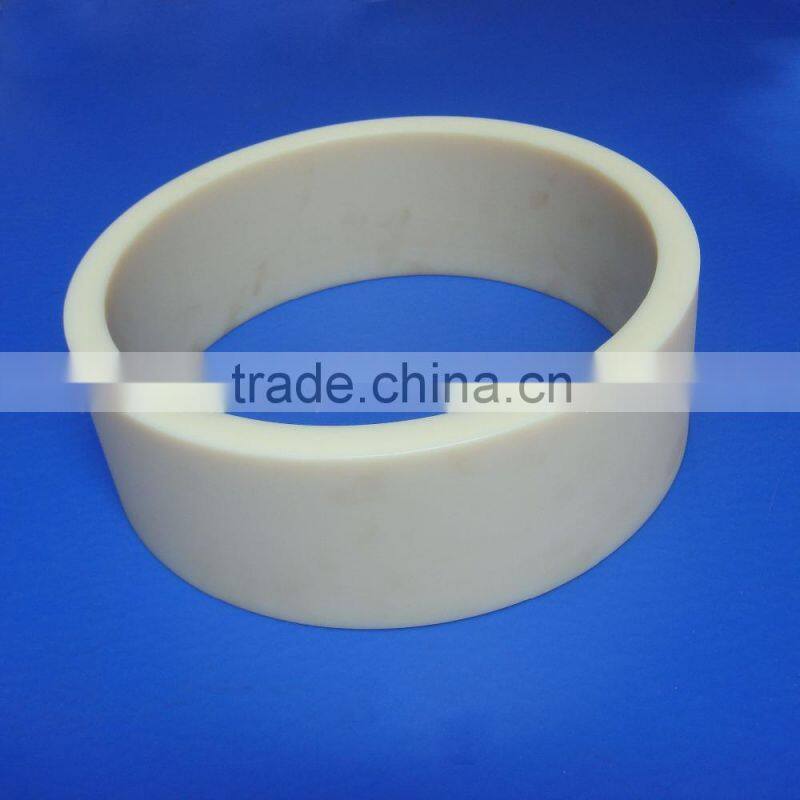

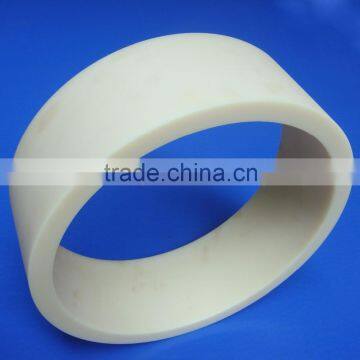

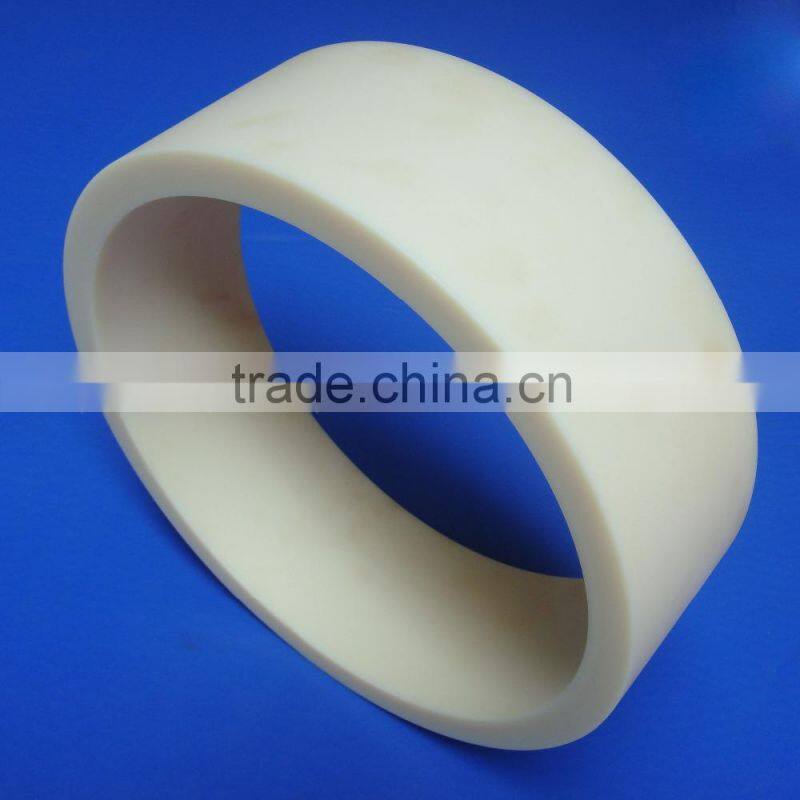

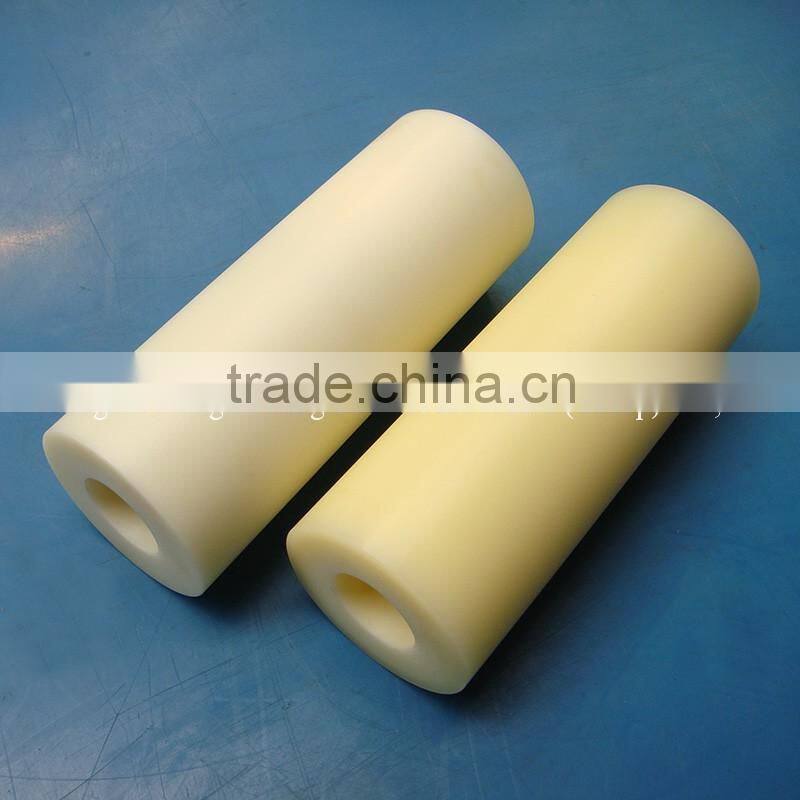

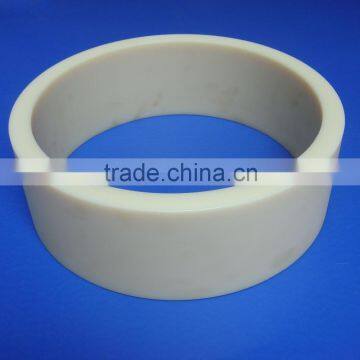

wholesale custom made natrual engineering plastic MC nylon 66 Nylon tube
MC Nylon,means Monomer Casting Nylon, is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field.
Product Description
1.MC Nylon + MSO2(Light black color)
Impact-resistance and fatigue-resistance of casting nylon, strong loading capacity and wear-resistance.
It has a wide application in making gear, bearing, planet gear, seal circle and so on.
2.Oil MC901(Blue color)
Striking blue color, excellent toughness, flexibility, fatigue-resistance and so on.
It is the perfect material of gear, gear bar, transmission gear and so on.
3. MC Nylon (Natural/White color):
High performance of wear-resistance, corrosion-resistance, self-lubrication, vibration-absorption, noise-absorption.
econocal cost, ideal substitutes of bronze, stainless steel, Babbitt alloy , PTFE and so on
It is suitable for making the bearing and other wear mechanical parts.
4.Oil Nylon + Carbon (Black Color)
Very compact and crystal structure, high mechanical strength, wear-resistance, anti-aging, UV resistance and so on. It is suitable for making the bearing and other wear mechanical parts.
5.Oil Nylon (Green color):
Excellent wear resistant, sliding frictional properties, abrasion resistance and stick slip performance, self-lubrication.
Characteristics:
Good abrasion resistance
Good at dampening
Low coefficient of friction
High strength and stiffness
High impact and notch impact strength
High heat deflection temperature
Good chemical stability against organic solvents and fuels
Excellent electrical properties, ease of printing and dyeing
Applied instances of MC nylon(1)
Pharmaceutical equipment:
MC nylon has the anti-corrosive, rustless and unconglutinant resistances, which are suitable for making gears, rollers guides and other components in pharmaceutical equipment. It is one kind of material that conform the regulations of China GMP and USA FDA.
Water conservancy and environment protection:
Big slide blocks of water conservancy engineering, big wheels of waste water pool, scrapers, grid chain and harrow of feculence filter, dryer roller and other wear components.
Electronic industry
The main application of MC nylon in electronic industry is ESD performance. It has been adopted for the various parts due to its characteristics of protecting electronic components from static damage, such as: chip salver, casters in the clean room, roller of the transportation system of LCD panel assembly line.
Besides, MC Nylon can be made into the gear for balancing the eddy bearing, which has a higher strength than metal gear, and reduce the noise of car in running.
MC Nylon tube Property:
Property |
Item No. |
Unit |
MC Nylon (Natural) |
Oil Nylon+Carbon (Black) |
Oil Nylon (Green) |
MC901 (Blue) |
MC Nylon+MSO2 (Light black) |
|
Mechanical Properties |
1 |
Density |
g/cm3 |
1.15 |
1.15 |
1.135 |
1.15 |
1.16 |
2 |
Water absorption (23℃ in air) |
% |
1.8-2.0 |
1.8-2.0 |
2 |
2.3 |
2.4 |
|
3 |
Tensile strength |
MPa |
89 |
75.3 |
70 |
81 |
78 |
|
4 |
Tensile strain at break |
% |
29 |
22.7 |
25 |
35 |
25 |
|
5 |
Compressive stress(at 2%nominal strain) |
MPa |
51 |
51 |
43 |
47 |
49 |
|
6 |
Charpy impact strength (unnotched) |
KJ/m2 |
No brak |
No break |
≥50 |
No BK |
No break |
|
7 |
Charpy impact strength (notched) |
KJ/m2 |
≥5.7 |
≥6.4 |
4 |
3.5 |
3.5 |
|
8 |
Tensile modulus of elasticity |
MPa |
3190 |
3130 |
3000 |
3200 |
3300 |
|
9 |
Ball indentation hardness |
N/mm2 |
164 |
150 |
145 |
160 |
160 |
|
10 |
Rockwell hardness |
- |
M88 |
M87 |
M82 |
M85 |
M84 |
|
1.A: What’s the size of plastics sheet?
B:Nylon sheet:Thickness*Width*Length:20-100*1000*2000mm
UHMW-PE sheet:Thickness*Width*Length:20-100*1000*2000mm; 20-100*1250*3130mm; 20-100*1250*4250mm
POM sheet:Width*Length:1000*2000mm
2. A:Can we purchase a small part of plastics sheet?
B: Yes,you can, if we have the size you require in stock.
3. A:What color of plastics sheet?
B: Nylon sheet: Natural,black,blue,or according to client’s requiremnet.
UHMW-PE sheet: White,black,green ,bule,yellow,or according to client’s requirement.
White,black
4. A:Can you manufacture the plastics products as per drawing?
B: Yes,we can.
5.A: What the precision of plastic products according to drawing?
B: Different machine with different precision,it usually around 0.05-0.1mm
6.A: What the technologies in producing plastics parts?
B: Different products with different technologies,such as CNC machine,Extrusion,Injection
7: A:What kinds of processing machine do you have?
B: CNC machining center,CNC lathes,Milling,Injection Molding Machine,Extruder,Moulding press
