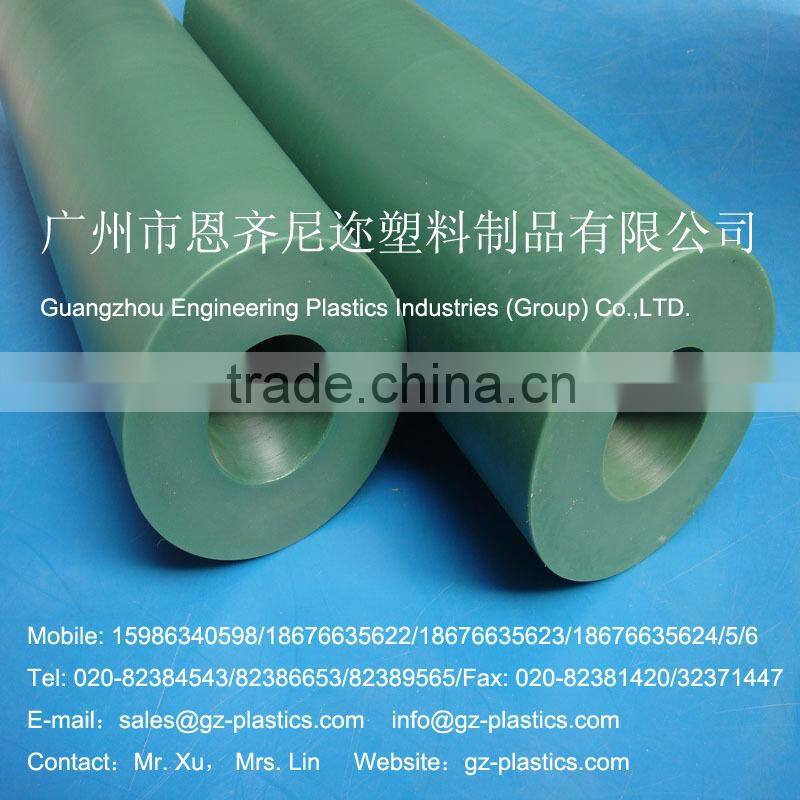

Polyamide PA PA66 oil nylon tube pipe
MC Nylon,means Monomer Casting Nylon, is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field.
Nylon Sheet Property:
Property |
Item No. |
Unit |
MC Nylon (Natural) |
Oil Nylon+Carbon (Black) |
Oil Nylon (Green) |
MC901 (Blue) |
MC Nylon+MSO2 (Light black) |
|
Mechanical Properties |
1 |
Density |
g/cm3 |
1.15 |
1.15 |
1.135 |
1.15 |
1.16 |
2 |
Water absorption (23℃ in air) |
% |
1.8-2.0 |
1.8-2.0 |
2 |
2.3 |
2.4 |
|
3 |
Tensile strength |
MPa |
89 |
75.3 |
70 |
81 |
78 |
|
4 |
Tensile strain at break |
% |
29 |
22.7 |
25 |
35 |
25 |
|
5 |
Compressive stress(at 2%nominal strain) |
MPa |
51 |
51 |
43 |
47 |
49 |
|
6 |
Charpy impact strength (unnotched) |
KJ/m2 |
No brak |
No break |
≥50 |
No BK |
No break |
|
7 |
Charpy impact strength (notched) |
KJ/m2 |
≥5.7 |
≥6.4 |
4 |
3.5 |
3.5 |
|
8 |
Tensile modulus of elasticity |
MPa |
3190 |
3130 |
3000 |
3200 |
3300 |
|
9 |
Ball indentation hardness |
N/mm2 |
164 |
150 |
145 |
160 |
160 |
|
10 |
Rockwell hardness |
- |
M88 |
M87 |
M82 |
M85 |
M84 |
|
Characteristics:
Good abrasion resistance
High strength and stiffness
High impact and notch impact strength
High heat deflection temperature
Good at dampening
Low coefficient of friction
Good chemical stability against organic solvents and fuels
Excellent electrical properties, ease of printing and dyeing
Product Description
1.Oil Nylon + Carbon (Black Color)
Very compact and crystal structure, high mechanical strength, wear-resistance, anti-aging, UV resistance and so on. It is suitable for making the bearing and other wear mechanical parts.
2.MC Nylon + MSO2(Light black color)
Impact-resistance and fatigue-resistance of casting nylon, strong loading capacity and wear-resistance.
It has a wide application in making gear, bearing, planet gear, seal circle and so on.

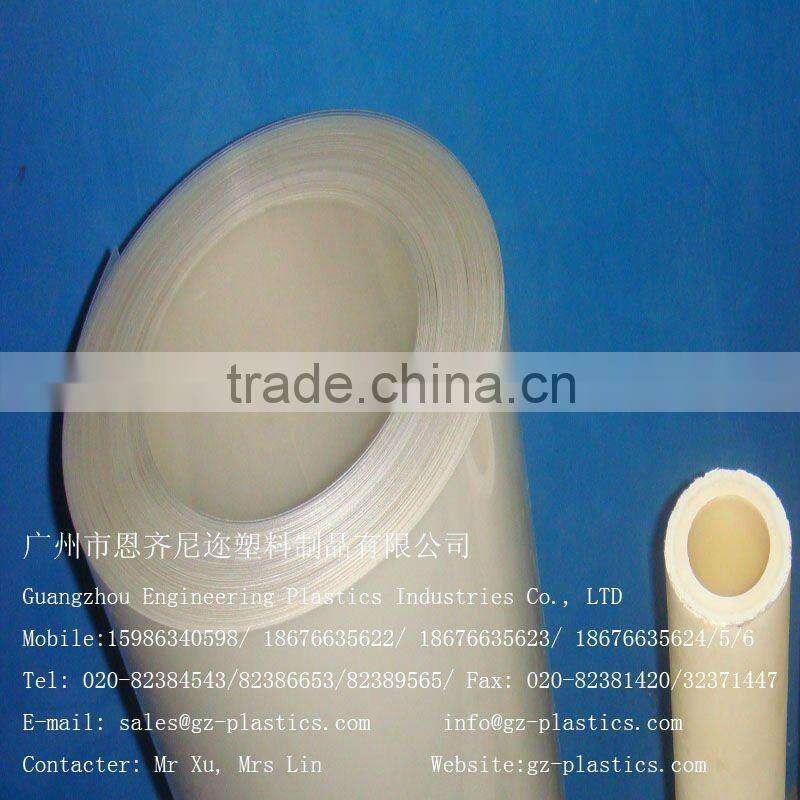

3. MC Nylon (Natural/White color):
High performance of wear-resistance, corrosion-resistance, self-lubrication, vibration-absorption, noise-absorption.
econocal cost, ideal substitutes of bronze, stainless steel, Babbitt alloy , PTFE and so on
It is suitable for making the bearing and other wear mechanical parts.
4.Oil Nylon (Green color):
Excellent wear resistant, sliding frictional properties, abrasion resistance and stick slip performance, self-lubrication.
5.Oil MC901(Blue color)
Striking blue color, excellent toughness, flexibility, fatigue-resistance and so on.
It is the perfect material of gear, gear bar, transmission gear and so on.
Applied instances of MC nylon(1)
Pharmaceutical equipment:
MC nylon has the anti-corrosive, rustless and unconglutinant resistances, which are suitable for making gears, rollers guides and other components in pharmaceutical equipment. It is one kind of material that conform the regulations of China GMP and USA FDA.
Water conservancy and environment protection:
Big slide blocks of water conservancy engineering, big wheels of waste water pool, scrapers, grid chain and harrow of feculence filter, dryer roller and other wear components.
Electronic industry
The main application of MC nylon in electronic industry is ESD performance. It has been adopted for the various parts due to its characteristics of protecting electronic components from static damage, such as: chip salver, casters in the clean room, roller of the transportation system of LCD panel assembly line.
Besides, MC Nylon can be made into the gear for balancing the eddy bearing, which has a higher strength than metal gear, and reduce the noise of car in running.
Applied instances of MC nylon(2)
MC nylon is mainly applied in the field of mechanical engineering, chemical engineering, electric/electronic, auto industry etc, to be made bearing & wear parts and structural parts instead of copper, tin, alloy and stainless steel. Because of the excellent inherent properties ,MC nylon is widely used in different industries, such as: mining, metallurgy, petroleum, construction, textile, pulp & paper, shipbuilding, water and electricity project, environmental protection and water treatment, ocean developing, war industry and so on. It produces the distinct benefit of economy and society.
The profile shapes of MC nylon, such as pipe, tube and plate can be manufactured into the four wear and friction components: gear, sheave, bearing and roller, as well as different kinds of structural component, such as: mechanical seal circle, guide plate, scraper etc.
